Model: WQ2003-K
Technical Specifications:
Gas Source Pressure: 4-8 bar
Oil-to-water ratio: 55:1
Pipe Length: 4m
Output Oil Flow: 2000g-4000g/min
Applicable Vessel: 180-220L
Scope: 10-9999.9G
Time Interval Range: 1-999S
Lubrication Precision: Better than ±1%
Controller Power Supply: 220V Input

Applicable Oils: 0-3# Oil

Key Features of Grease Pumps:

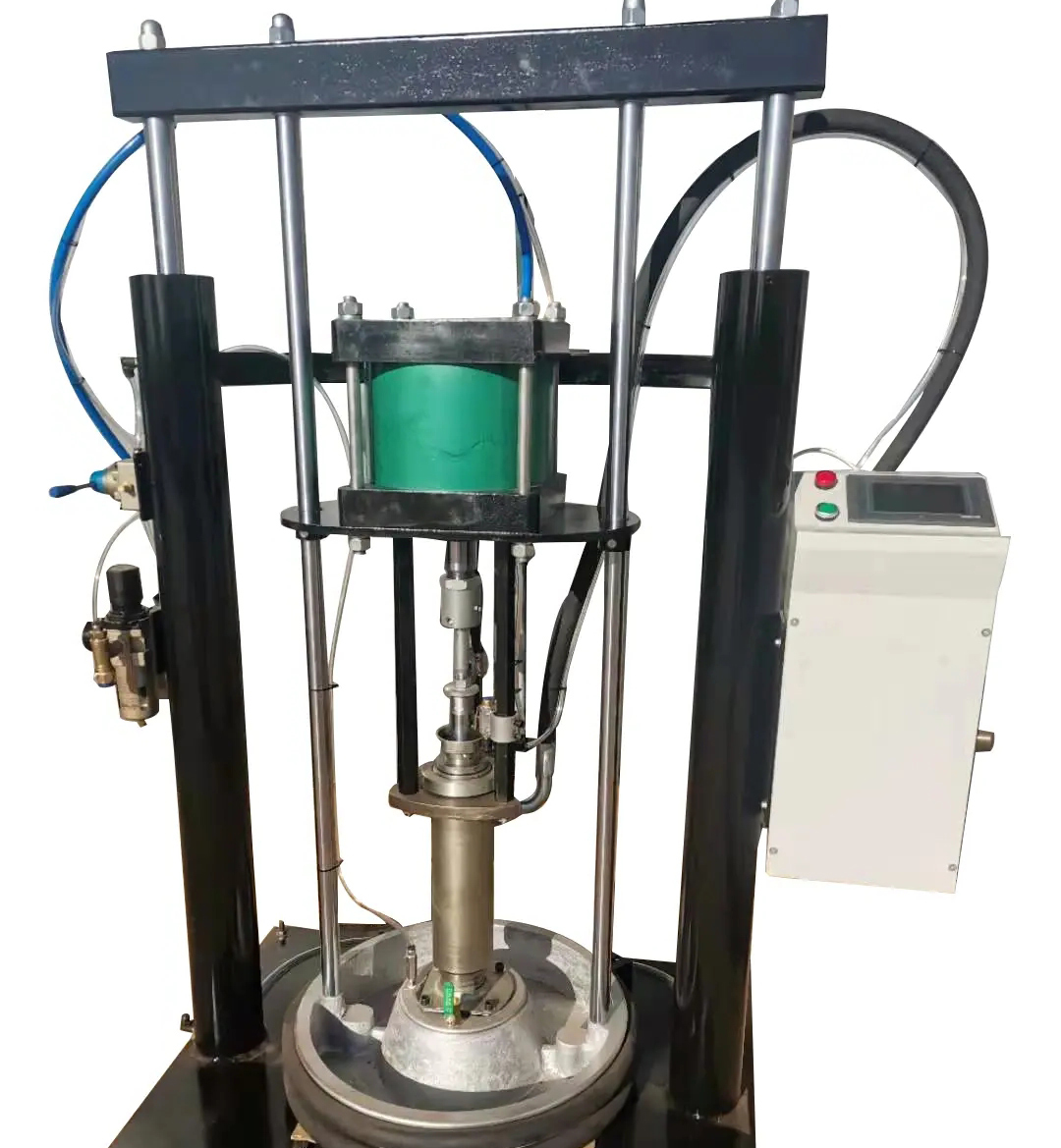

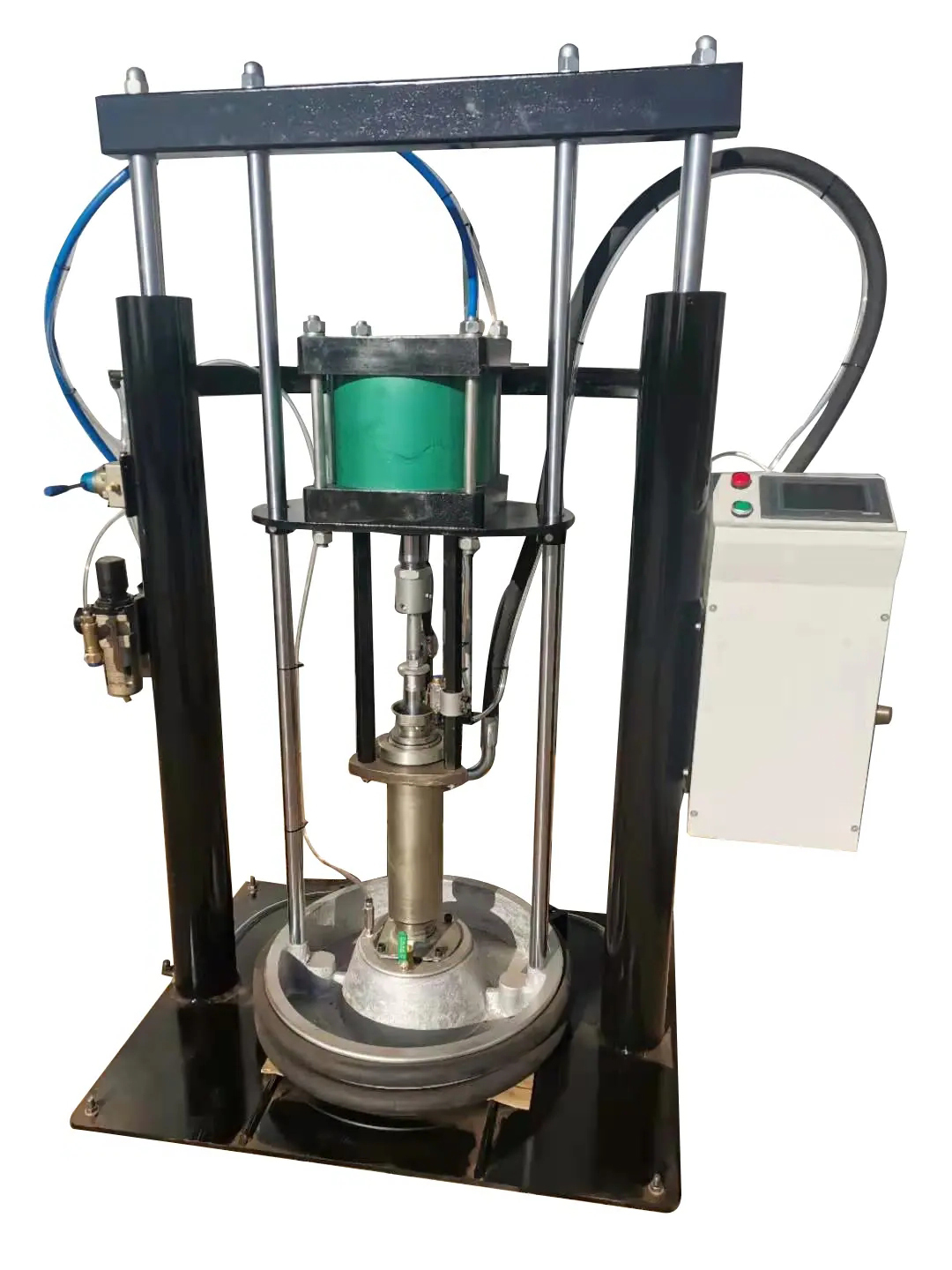

A double-column butter pump is a device powered by compressed air, which uses the reciprocating motion of plungers to output pressure-lubricating grease.

Equipped with a pre-compression device, high output pressure, featuring simple structure, easy operation and maintenance, and capable of reducing labor intensity.

Enhances work efficiency, suitable for oil replenishment at gas-supplied locations and oil conveyance on production lines.

The system is gas-driven for safe operation.

High work pressure and high traffic volume, capable of long-distance oil transportation; even in cold regions, it allows for easy oil refueling.

Wide application range, easily transports high viscosity oils.

◆ Equipped with built-in mobile wheels for easy movement, the wheels come with brakes for safety assurance.

Equipped with a pressure plate for easy removal of oil residue from the inner wall of the drum, reducing leftovers, maintaining pump stability, and keeping the oil clean. It can be used directly with small packaged oil drums.

The pump housing features an integrated switch with an adjustable air valve for easy pressure regulation; it also comes with a lift and adjust valve for convenient oil replacement and to prevent suction.

◆The system is equipped with built-in exhaust and blow valves, allowing for the complete removal of air from the drum during drum change, which enhances the efficiency of drum change by blowing air.

Key Features of Control System:
Hardware selection is reliable, stable, easy to operate, and user-friendly.
.Oiled quantity detection uses a flowmeter with good repeatability.
The equipment features an aesthetically pleasing design and is easy to operate.
. Choose products with high pressure resistance, short operation time, long lifespan, and high reliability for switch valves.
The average mean time between failures for the control system exceeds 10,000 hours.
Digital preset, modification, storage, and value notation
The precision marking can be calibrated to ensure marking accuracy.
Real-time dynamic display of working status
Single fill quantity, cumulative fill quantity, etc., numerical display
Automatic batch marking for raw material line parts
