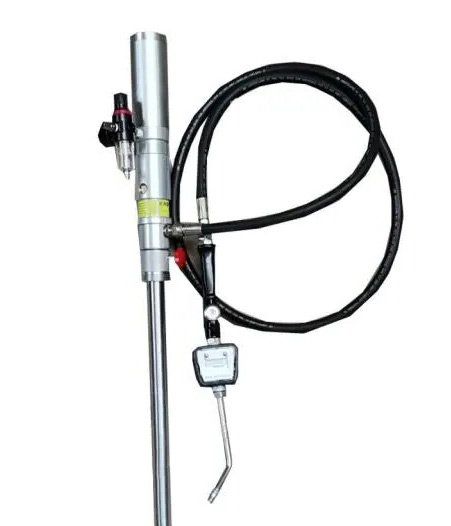

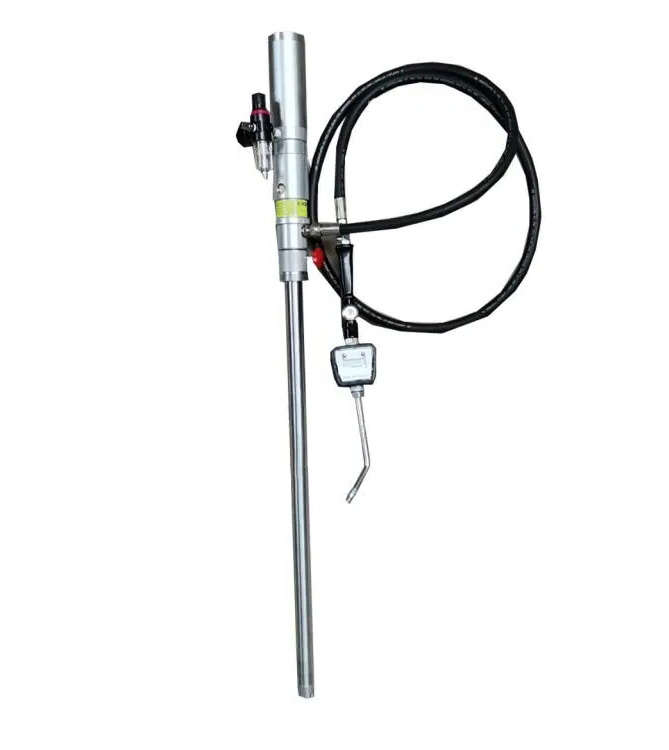

Model: WQ37155 Oil Injection Machine
Parameters
Applicable for:稀油加注套件 for standard oil drums of 180-220 kg (please specify size for small drums)
Oil Absorber Rod Length: 940mm
Gas Pressure: 4-10 bar
Pressure Ratio: 5:1
Installation Requirements: Vertical Placement
Output Pressure: 0.8-1.2 MPa
Tubing Diameter: ￠42mm
Pipe Diameter: 1/2 inch
Pipe Length: 3 meters

One: Driven by compressed air, the reciprocating motion of the plunger pump is used for lubricating oil delivery and refueling. Connected to the metering digital refueling gun through a hose, it outputs oil with a digital flow display, ensuring accurate measurement and easy operation, suitable for refueling workshop lubricants or similar fluids.
Section 2: Engine oils, gear oils, coolants, power fluids, hydraulic oils, transmission fluids, rear-axle oils, and other similar fluids suitable for long-distance measurement, transportation, and refueling of 180-220L bulk oil products and antifreeze or similar fluids under non-vacuum conditions. Currently selected for refueling equipment in automotive repair shops, 4S stations, quick oil change service centers, and production lines in workshops.
