Model: WQ37150B
Parameters
Gas Pressure: 4-8 Bar
Oil Pump Pressure Ratio: 5:1
Pipe Diameter: 3/4 inch long
Pipe Length: 940mm
Nominal Pipe Size: 1/2 inch long
Pipe Length: 4m
Suction Rate: 10-20 liters/min
Output Pressure: 5-20 Bar
Applicable oil drum size: approximately 200L

Applicable Oils: Various engine oils, gear oils, hydraulic oils

One: Utilizes compressed air as power to drive the reciprocating motion of a plunger pump for lubricant transportation and filling. Connected to the fueling gun through a flexible hose reel, it outputs oil, digitally displays flow rate, ensuring accurate measurement, simple operation, and enables the filling of lubricants in the workshop or similar fluids.

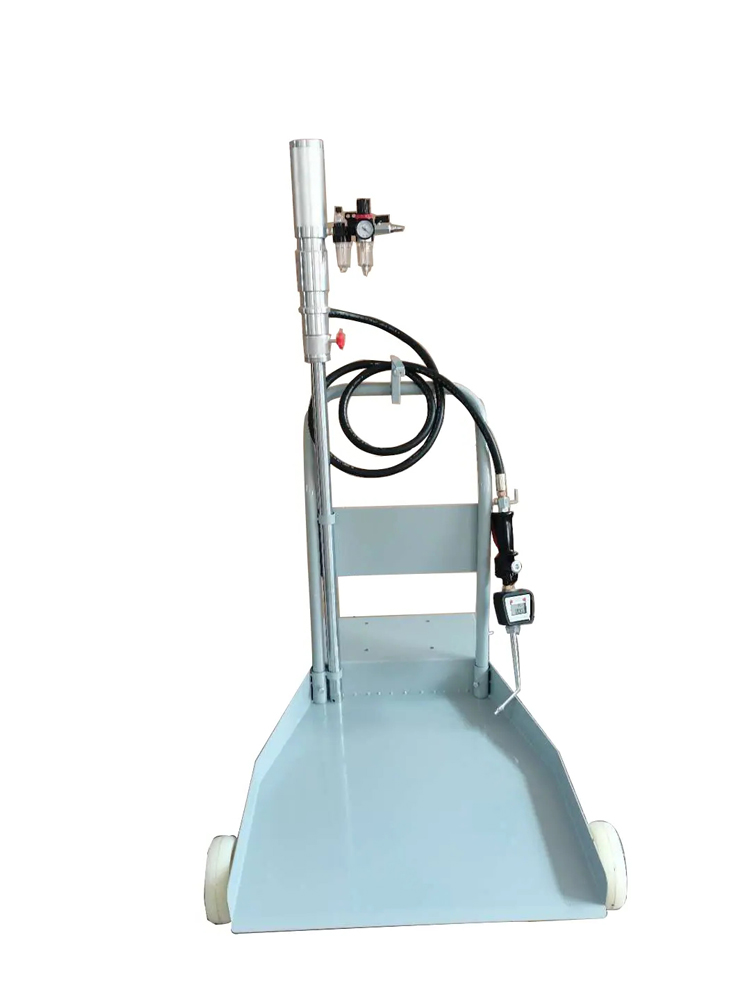

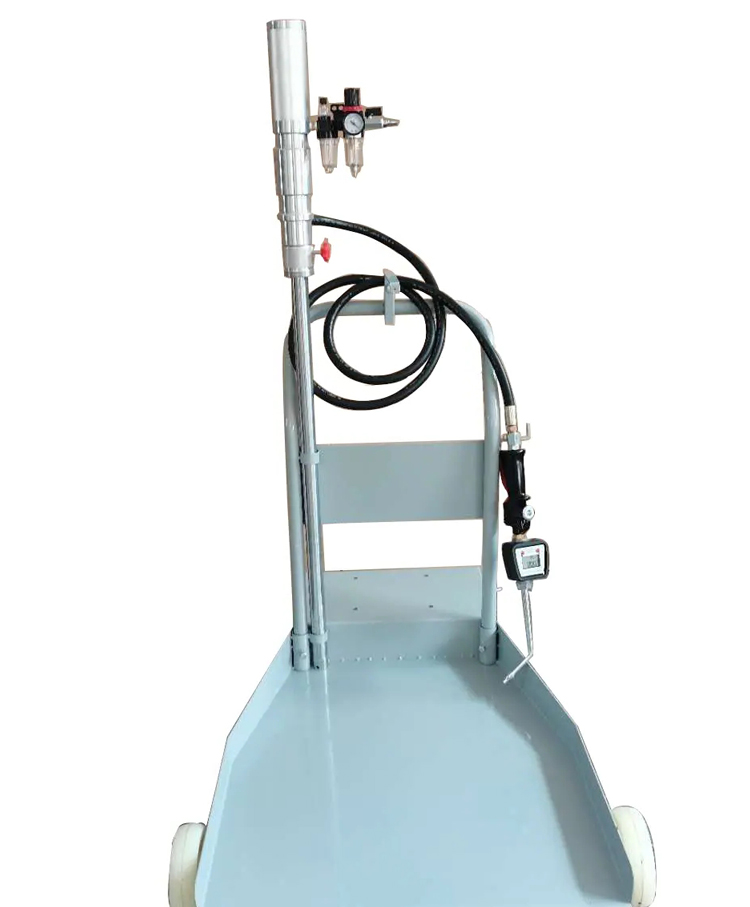

Two, the machine is equipped with a small cart, suitable for long-distance measurement, transportation, and refueling of engine oil, gear oil, coolant, power oil, hydraulic oil, transmission fluid, rear axle oil, and other oils, as well as antifreeze or similar fluids in non-vacuum conditions for 180-220L large drum oil materials. Currently, it is the preferred fueling equipment in automotive repair shops, 4S stations, quick oil change service centers, workshop production lines, and other fields.
