Model: WQ37100J
Parameters
Gas Pressure: 4-8 Bar
Oil Pump Pressure Ratio: 5:1
Oil Pipe Diameter: 3/4 inch long
Pipe Length: 940mm
Nominal Pipe Size: 1/2 inch long
Pipe Length: 10m
Suction Speed: 10-20 liters/minute
Output Pressure: 5-20 Bar
Applicable Oil Drum Size: Approximately 200L
Applicable Oils: Various engine oils, gear oils, hydraulic oils

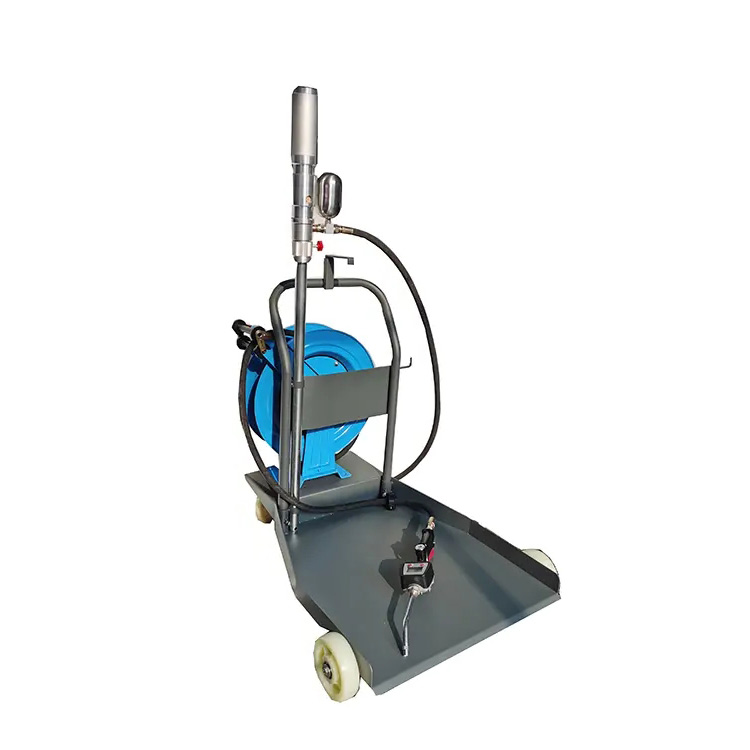

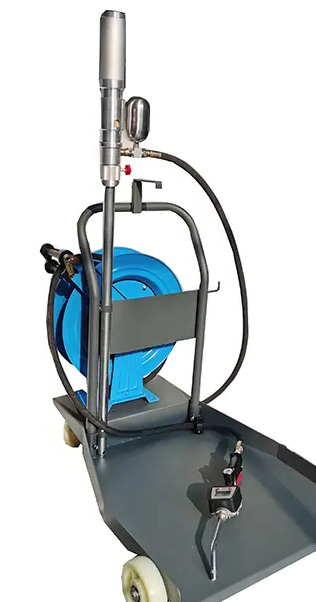

One: Utilizing compressed air as power, driving the plunger pump to reciprocate, for lubricating oil delivery and refueling. Connected to the refueling gun through a flexible hose reel, outputting oil with a digital display of flow rate, accurate measurement, easy operation, achieving the refueling of lubricating oil in the workshop or similar fluids.
Two, equipped with a small cart and a 10-roll tube drum, it is suitable for the long-distance measurement, transportation, and refueling of engine oil, gear oil, coolant, power oil, hydraulic oil, transmission fluid, rear-axle oil, and other oil products, as well as antifreeze or similar fluids in non-vacuum conditions for 180-220L large drum oil materials. Currently, it is a preferred fueling equipment in car repair shops, 4S stations, quick oil change service centers, and production lines in workshops.
