Model: WQX200K
Parameters
Power Voltage: 220V
Motor Power: 0.75 kW
Pipe Diameter: 3/4 inch long
Pipe Length: 940mm
Pipe Outer Diameter: 1/2 inch long
Pipe Length: 4m
Suction Speed: 8-18 liters/minute
Output Pressure: 5-20 Bar
Applicable Oil Drum: Approximately 200L
Applicable Oils: Various engine oils, gear oils, hydraulic oils
Quantitative Accuracy: ±1%
Quantitative Range: 0.1-999.9L
Controller Power Supply: 220VAC

Key Features of This Product:
The hardware is chosen for its reliability, stability, ease of operation, and user-friendly interface.
.Oiled quantitative testing employs a flowmeter with good repeatability.
The equipment features an aesthetically pleasing exterior and user-friendly operation.
Valves selected for their high pressure resistance, quick operation, long lifespan, and high reliability during switching.
Average Mean Time Between Failures (MTBF) for the control system exceeds 10,000 hours.
Numeric preset, modification, storage, and notation of values
The precision marking can be calibrated to ensure marking accuracy.
Real-time dynamic display of working status
. Single filling volume, cumulative filling volume, etc. parameter numbers displayed
Automatic batch marking for raw material line workpieces

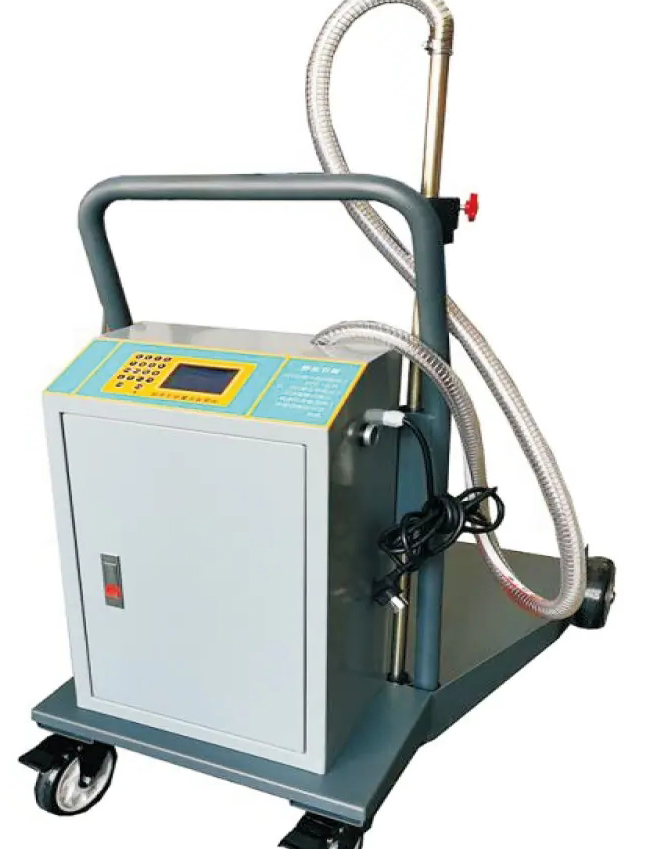

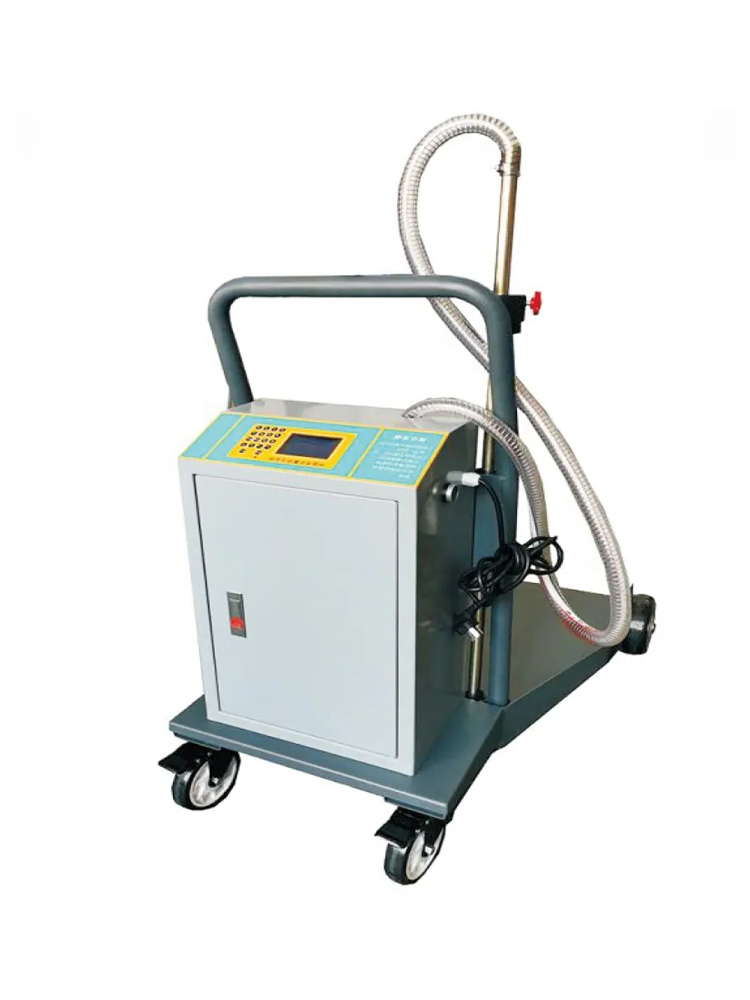

This fueling system primarily uses gear pumps for power, equipped with high-pressure, high-precision flowmeters and timing dosing devices, for refueling and transferring various vehicles. In addition to digital presetting, modification, and storage functions, it also enables automatic cyclic operation. It is suitable for refueling original, pure lubricating oils or similar fluid oils in automotive production workshops. It is currently the preferred fueling equipment in automotive repair shops, 4S stations, quick oil change service centers, and production lines.
