Parameters
Model: WQZ502-GK
Oil Drum Capacity: 10-50L (Optional as Required)
Applicable Oils: 0-3# High Viscosity Butter Grease
Pressure: 4-8 Bar
Quantitative Range: 10-9999g / 0.1-9999L (as required)
Time Interval Range: 1-999S
Quantitative Precision: Better than ±1%
Output Pressure: 18-481 Pa
Oil output: 0.3-1.8L/min (optional as required)

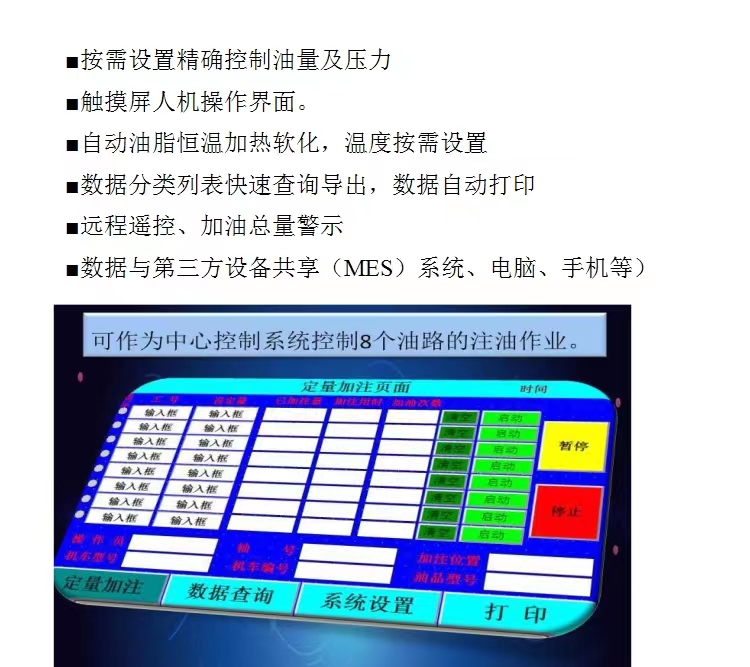

Operating System: PLC Control Touchscreen Interface
Tube Length: 2-10M (configurable as required)
Data Backup: USB Interface/Phone & Computer Sync
Features: PLC-controlled touch screen LCD display for adding various lubricating oils, high output pressure, enabling real-time monitoring of oiling conditions at the company and various locations via mobile or computer, automatic collection and summarization of oiling data, constant temperature heating setting for oil volume and pressure as required.
