Model: WDZ500K
Primary Technical Specifications
Power: 220V, 50Hz
Supply Rate of Oils: 500g/min
Supply Pressure: 20 MPa
Adjustable Range: 3g - 20,000g
Accuracy: ±1%
Oil Storage Drum Capacity: Not less than 30L
Tube Length: 6m with Automatic Reel
Pipe Diameter: 1/2 inch
Pressure Resistance: Not less than 60 MPa
Power cord length: 30 meters, includes an automatic spool.
Z-shaped oiling gauge with digital display, capable of controlling oil pump start and stop.

Product Description:

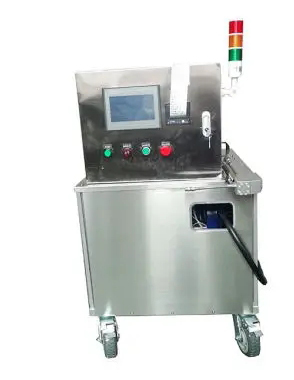

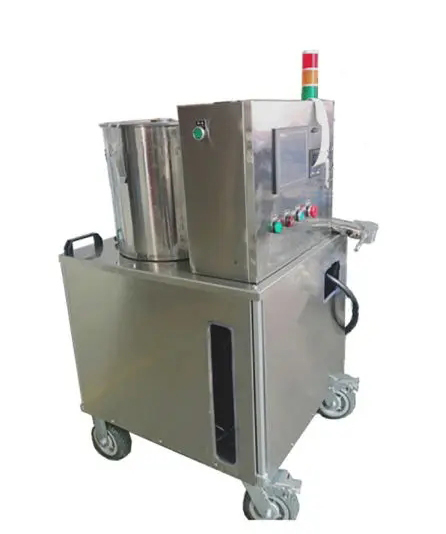

Automated butter oiler with a high-pressure grease pump and a high-intelligence control system, offering precise volume control, digital display, on-demand setting, data storage, warning heating, and high-pressure oiling functions to meet user requirements.
A precise lubricant dosing assistant for industries such as light rail locomotives, assembly lines, bearings, papermaking, electricity, ports, construction machinery, automobiles, mechanical equipment, and motors, as well as for shipboard and agricultural vehicle applications.
Location: Joint Maintenance Warehouse - Main Technical Requirements for the Bearing Axle Storage Room
The vehicle bearing grease filling machine is controlled by an intelligent controller, featuring full digital display, easy adjustment for precise greasing, and a pressure protection device. Users can conveniently set the greasing amount on the panel from 10 grams to 20 kilograms.
The vehicle bearing grease filling machine can display and print information such as the staff's name, operation date and time, current grease amount, shaft number, and work sequence number. The staff's name does not need to be entered each time; it can be selected from the table instead.
The price of the fatting can not only be printed but also searched on the display or copied to the computer using a USB drive.
Data processing for streamlined management of standardized fat addition operations.
Basic Composition:
The lubrication equipment is portable, primarily composed of the body, motor, oil pump, oil tank, high-pressure hoses, and electrical control components. The outer casing, oil tank, and main structural parts are manufactured from stainless steel.
The fatting module oiling machine features a PLC control system with a large touch screen HMI, offering simple and convenient operation, high automation, comprehensive functions, accurate real-time measurement, and stable performance.
Combining oil pumps with a high-intelligence control system, it meets users' precise quantity control requirements for oil; presetting, modifying, and storing of oil volume, operator, batch, and other items; automatic categorization, reporting, and summarization of historical operation data; export of various data to USB flash drives; early warnings; and requirements for high-pressure pump oil, etc.
