Model: WQ2003-K
Technical Specifications:
Gas Pressure: 4-8 bar
Oil-to-water ratio: 55:1
Pipe Length: 4m
Output Oil Flow: 2000g-4000g/min
Applicable Drum Size: 180-220L
Scope: 10-9999.9G
Time Interval Range: 1-999S
Oil Filling Precision: Better than ±1%
Controller Power Supply: 220V Input
Applicable Oils: 0-3# Oil

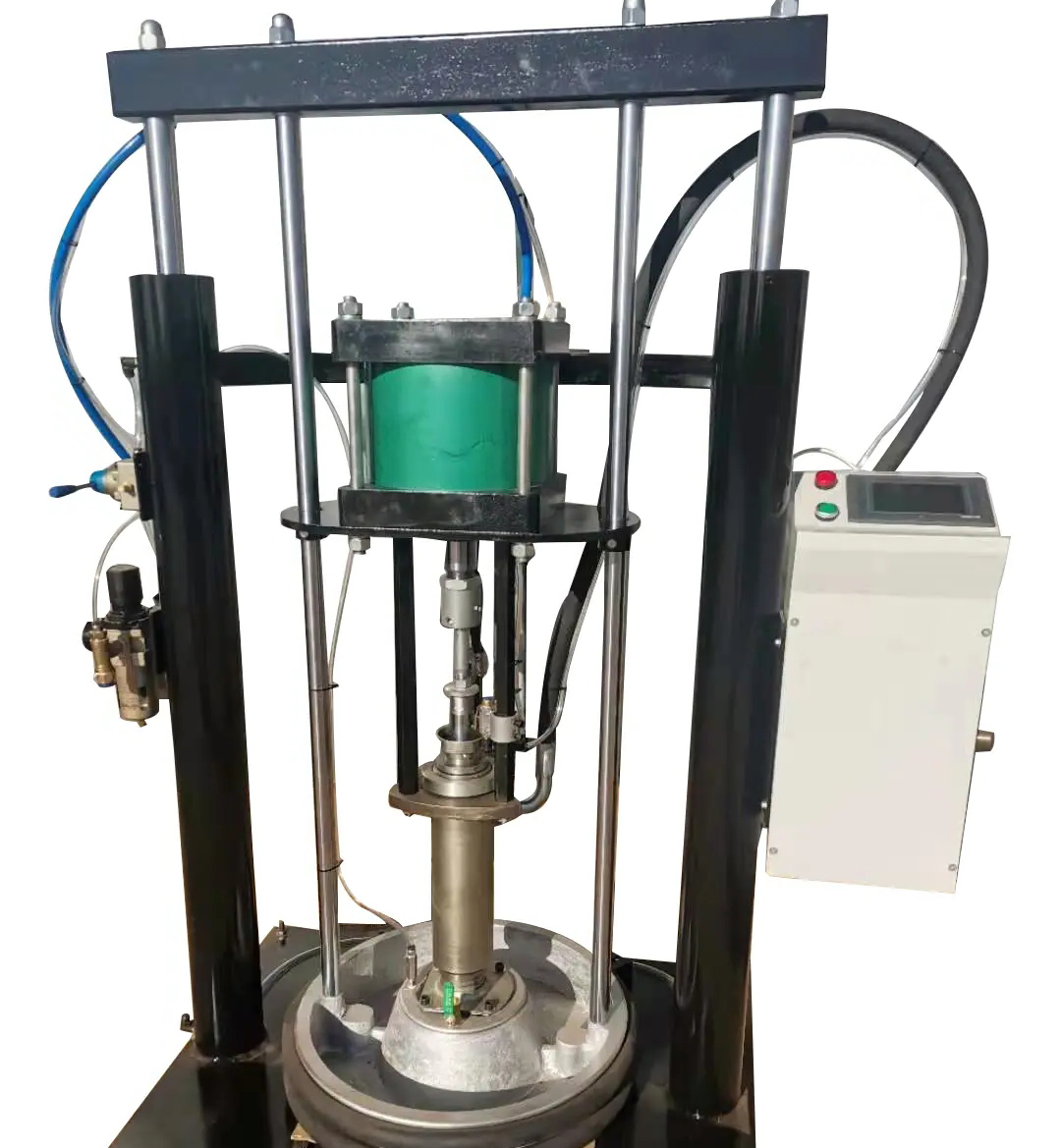

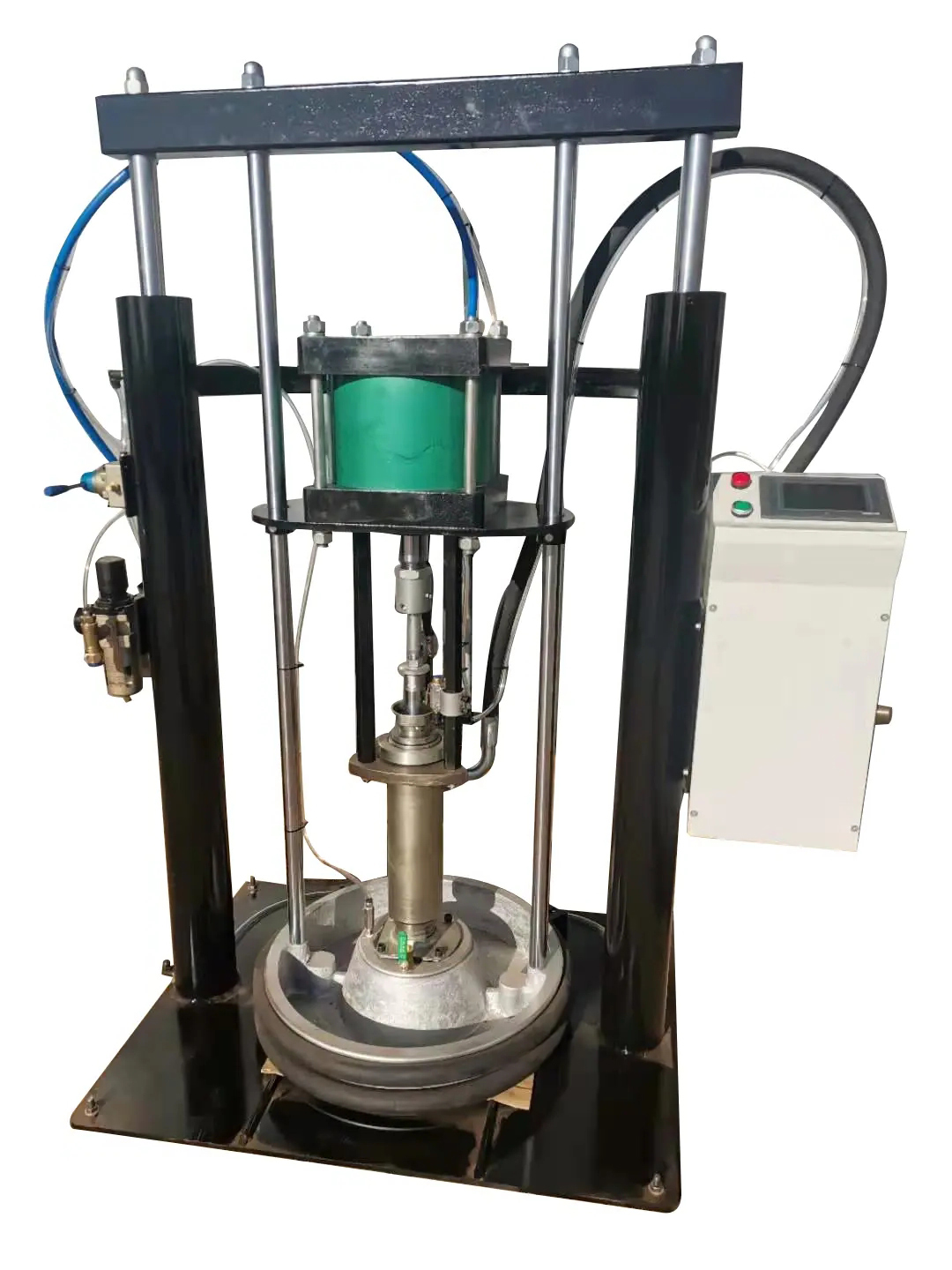

The double-column grease pump is a device powered by compressed air, which uses the reciprocating motion of the plunger to output pressure-lubricating grease.

Enhances work efficiency, suitable for oil replenishment at sites with gas sources and for oil conveyance on production lines.

High work pressure and high traffic, capable of long-distance oil delivery, even in cold regions, oil can be easily refilled.

◆Equipped with built-in casters for easy movement, the wheels come with brakes for safe and secure operation.

The pump housing features an integrated switch with an adjustable air valve for easy pressure regulation; it also comes with a lift and adjust valve for convenient oil replacement and to prevent vacuum.

◆ The system is equipped with both exhaust and blow valves, allowing for the complete evacuation of air from the drum during drum change, and blowing air during the change can enhance drum change efficiency.
