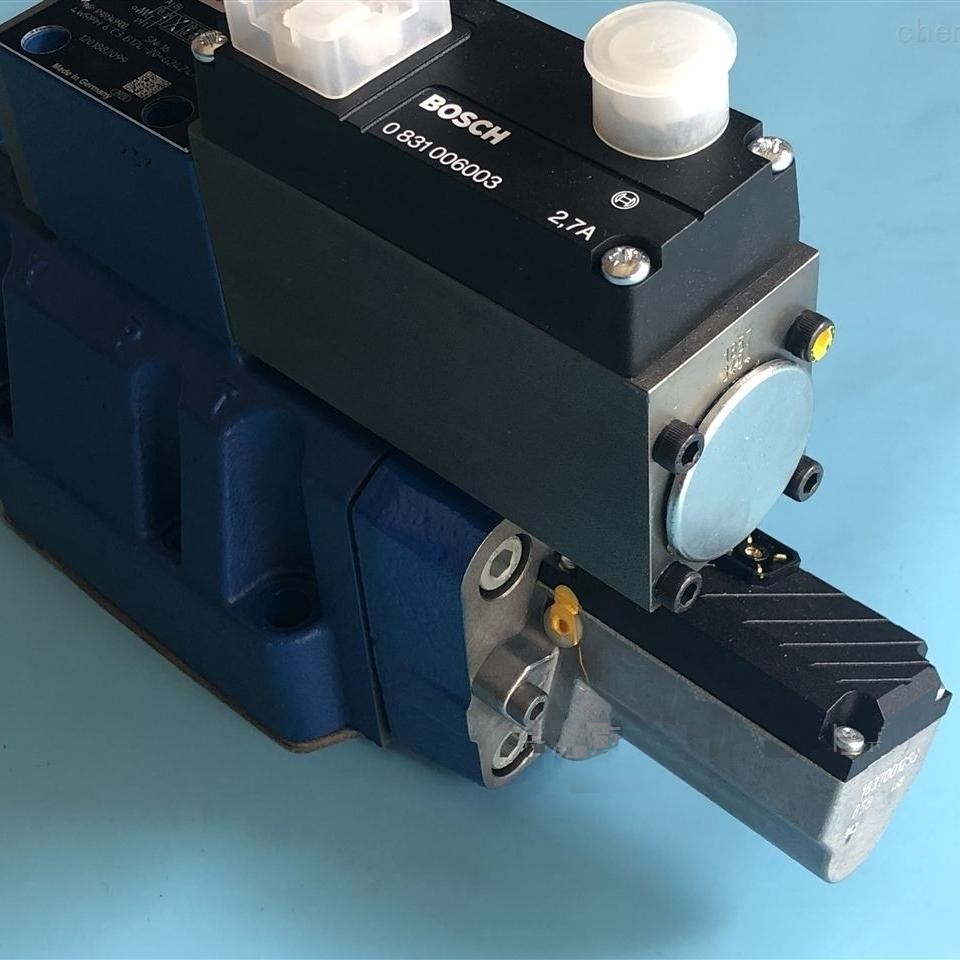

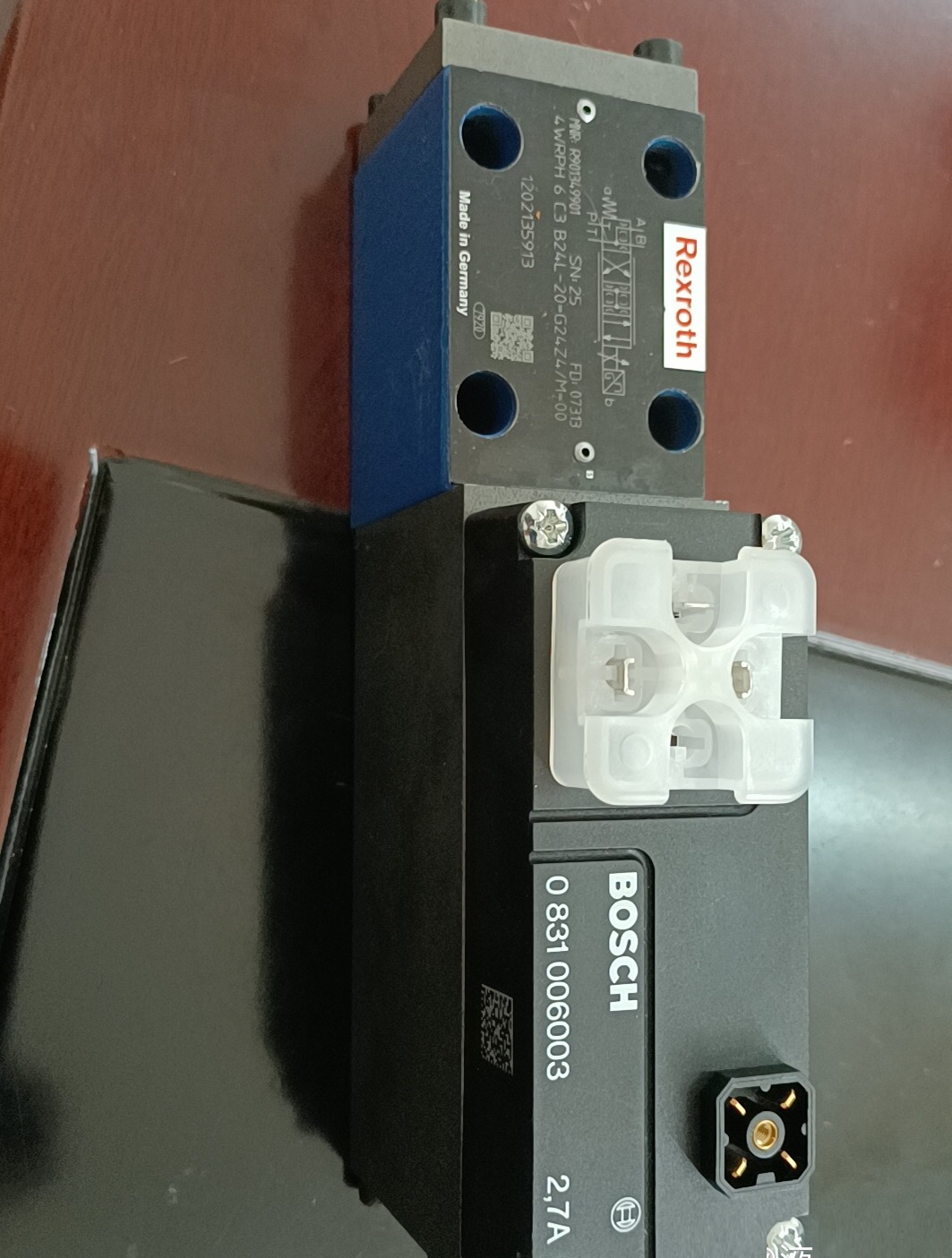

型号4WRPH6C3B24L-2XG24Z4M订货号 0811404035

名称Closed loop directional control valve

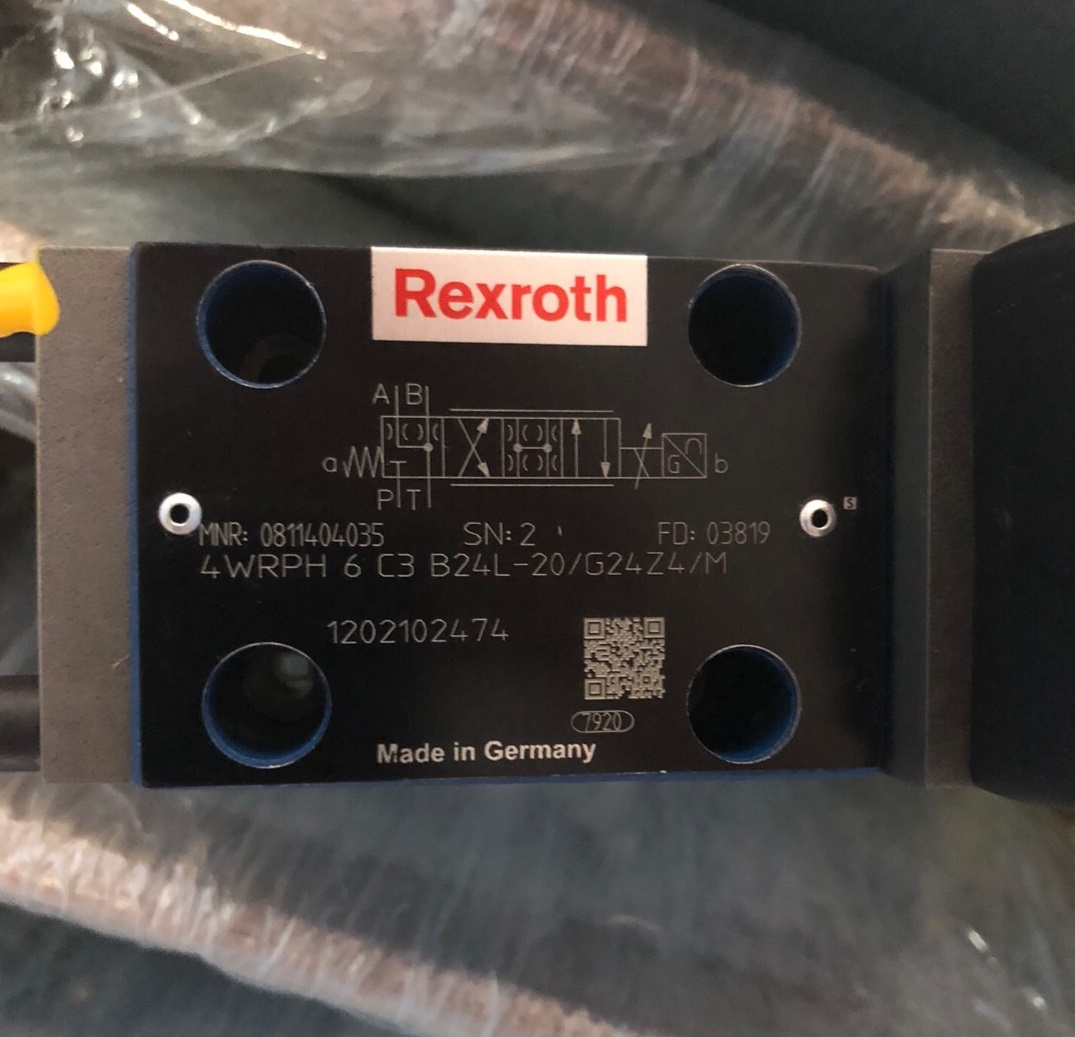

 4WRPH 6 C3 B24L-2X/G24Z4/M Material No.: 0811404035

describe product type 4WRPH Control valve with electrical position feedback and control piston and bushing in servo quality (LVDT DC / DC)

Control electronics There is no point control electronics

Label size six Ruler size

6 connection position to ISO 4401,

Code: 4401-03-02-0-94

Valve core C3 Safe location failed, a

And B and T, P

Connection blocked.

Side position sensor B Inductive position sensor on side B (standard)

flow :24 L / min

 Maximum operating pressure 350 bar

Weight:2.6kg

Form of characteristic curve rise linear

series 2 times Series 20 to 29

Voltage G24 Supply voltage 24 V DC

Electrical connection Z4 Assembly plug to DIN EN 175301-803,

Including plug-in connector

seal up M NBR seal, with mineral oil (HL,

HLP) is compatible with DIN 51 524 and further fluids are required.
