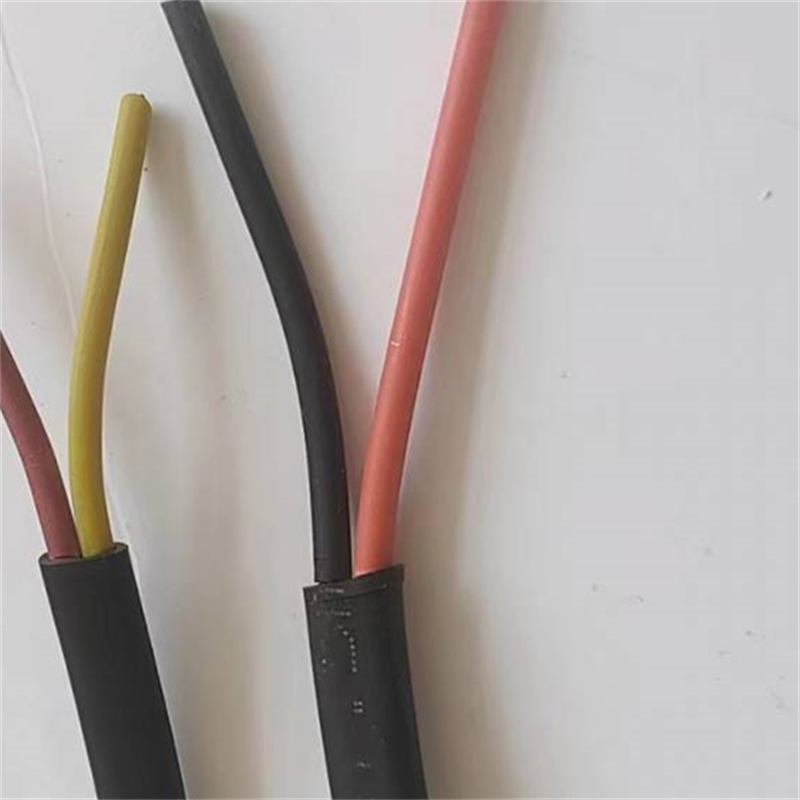

Compensating wire KX-HS-FVR-2*1.0, glass yarn braided high-temperature soft-core extension cord.
Product Features:
1. Rated Voltage: No specification required
2. Operating Temperature: -25°C to +200°C
3. Conductors: Solid or stranded alloy wire
4. Shielding: Tin-plated copper wire or galvanized steel wire or aluminum-plastic composite tape
5. Colors: Red/Yellow/Blue/White/Black/Grey/Brown, etc.
Features/Applications:
Compensating cables for thermocouples are insulated wires that, within a certain temperature range (including room temperature), have the same nominal electromotive force as the matched thermocouple. They are used to connect the thermocouple to the measuring device to compensate for errors caused by temperature changes at the point of connection with the thermocouple. Available in two types: extension and compensating.
ZR-KX-HA-FFP Fluoroplastic烯 Insulated and Sheathed Copper Wire Braided Overall Shielded Precision K Type Thermocouple Compensation Cable
ZR-KX-HA-FFRP Fluoroplastic烯 Insulated and Sheathed Copper Wire Braid Total Shield Precision Grade K Thermocouple Compensation Flexible Cable
ZR-KX-HA-FPFP Fluoroplastic Insulated and Sheathed Copper Wire Braid Screened Precision K Class Thermocouple Compensation Cable
ZR-KX-HA-FPFRP Fluoroplastic Insulated and Sheathed Copper Wire Braid Screened Precision K Type Thermocouple Compensation Flexible Cable
ZR-KX-HA-FGP Fluoroplastic烯 Insulated Silicone Rubber Sheath Copper Wire Braid Overall Shielding Precision Grade K Thermocouple Compensation Cable
ZR-KX-HA-FGRP Fluoroplastic烯 Insulated Silicone Rubber Sheath Copper Wire Braid Overall Shielded Precision Class K Thermocouple Compensation Flexible Cable
ZR-KX-HA-FPGP Fluoroplastic Insulating Silicone Rubber Sheath Copper Wire Braid Screened Precision K Type Thermocouple Compensation Cable
ZR-KX-HA-FPGRP Fluoroplastic Insulating Silicone Rubber Sheath Copper Wire Braid Screened Precision K Type Thermocouple Compensation Flexible Cable
Model, Name, and Compatible Thermocouples:
Model | Name | Thermocouple compatible | Type K Thermocouple | Product Model Meaning |
SC or RC | Copper-Nickel 0.6 Compensation Wires | Platinum Rhodium 10-Platinum Thermocouple Platinum Rhodium 13 - Platinum Thermocouple | S or R | S - Indicates precision grade compensation wire with thermal electric properties; P - Indicates compensation wire with shielding; G - Indicates general-purpose compensation wire; H - Indicates heat-resistant compensation wire; R - Indicates multi-strand compensation wire; B - No glass fiber material |
KCA KCB KX | Iron-Copper-Nickel 22 Compensating Wire Copper-Nickel 40 Compensation Wire Nickel Chrome 10-Nickel Silicon 3 Extended Wire | Nickel-Chromium-Nickel-Silicon Thermocouple | K | |
NC NX | Iron-Copper-Nickel 18 Compensation Wire Nickel Chrome 14-Nickel Silicon Extended Wire | Nickel-Chromium-Silicon-Nickel-Silicon Thermocouple | N | |
EX | Nickel Chrome 10 - Copper Nickel 45 Extended Wire | Nickel-Chromium-Copper Thermocouple | E | |
JX | Iron-Copper-Nickel 45 Extended Wire | Iron-Copper-Nickel Thermocouple | J | |
TX | Copper-Nickel 45 Extended Type Wires | Copper - Constantan thermocouple | T |
Product Specifications:
Wire Core Type | Nominal Core Section Area (mm²) | Number of wire strands | Single Wire Diameter of Alloy Wire (mm) |
Single-core wire core | 0.2 0.5 1.0 1.5 2.5 | 1 1 1 1 1 | 0.52 0.80 1.13 1.37 1.76 |
Multi-strand core (Soft Wire) | 0.2 0.5 1.0 1.5 2.5 | 7 7 7 7 19 | 0.20 0.30 0.43 0.52 0.41 |
