WanLian Group introduces foreign technology to produce self-regulating heating cables (also known as self-limiting temperature heating cables overseas) that are widely used in the pipeline and tank insulation, anti-icing, frost prevention, floor heating, and snow melting in gutters of industrial enterprises in the oil, construction, food, chemical, steel, and power sectors. This heating cable is suitable for ordinary areas, hazardous areas, and corrosive areas.

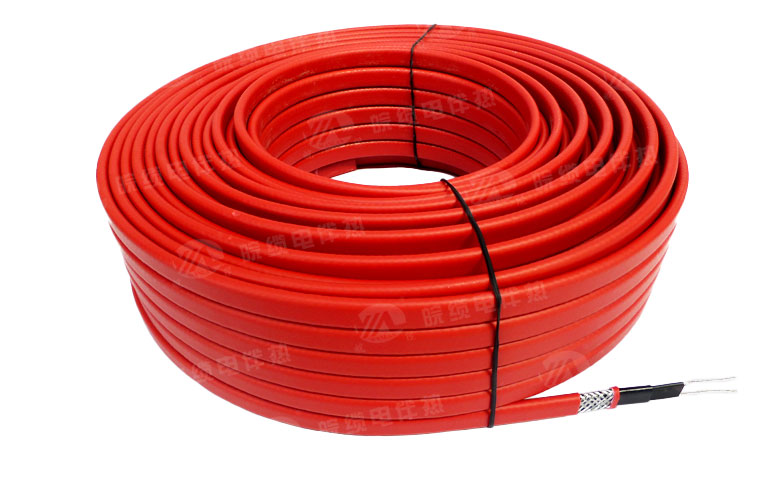

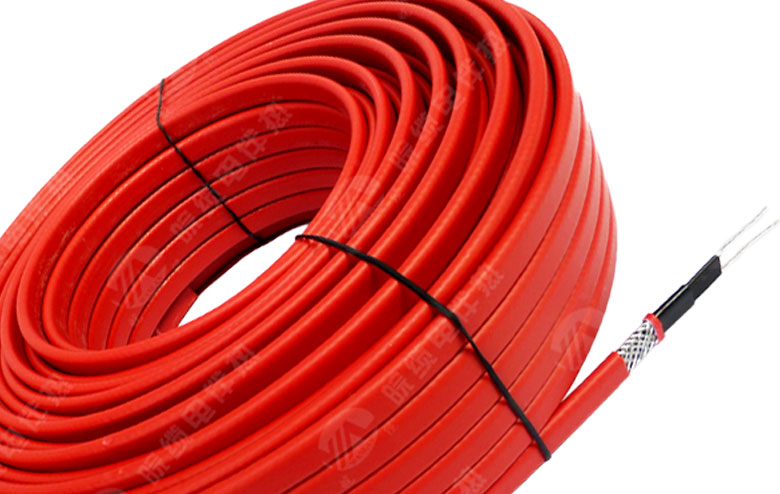

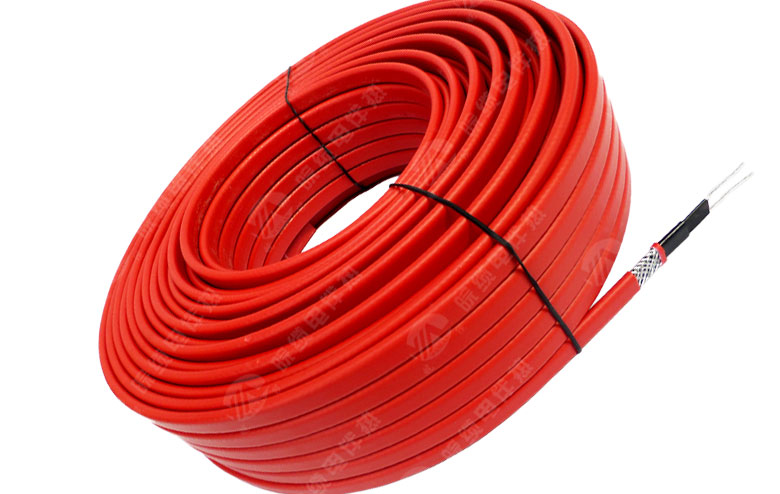

(ZR) GWK Flame Retardant Explosion-Proof (High-Temperature) Self-Limiting Temperature Electric Heat Tracing Tape

Product Model (including models GBR, KTV, GXW, GKW, GWK, GBW, DZL, etc. within the same series, all-temperature-limiting electric heating bands)
(ZR) GWK-J (Flame Retardant) High-Temperature Basic Model: Power 30/100W/m (at 10℃), Working Voltage 220V, Length of Use 110m
(ZR) GWK-F (Flame Retardant) High-Temperature Protective Type: Power 30/100 W/m (at 10°C), Working Voltage 220V, Usage Length 110m
(ZR) GWK-P(Flame Retardant) High Temperature Shielding Type: Power 30/100W/m (at 10℃), Working Voltage 220V, Length of Use 110m
(ZR) GWK-PF (Flame Retardant) High Temperature Shielding Protective Type: Power 30/100W/m (10℃), Working Voltage 220V, Usage Length 110m
ZR GWK-PF46 (Flame Retardant) High-Temperature Shielding Anticorrosion Type: Power 30/100W/m (at 10℃), Working Voltage 220V, Length of Use 110m

For example: 45GWK2-J means: High-temperature Basic Model, 45W output power per meter at 10℃, operating voltage 220V.
ZR65GWK3-PF: Flame-retardant high-temperature shielding protection type, 65W output power per meter at 10°C, operating voltage 380V, featuring flame-retardant, explosion-proof, and protective properties.

Section II: Product Structure
Copper-core wire: 7×0.50, 19×0.32, 19×0.41
(2) Conductive Plastic Layers: Standard PTC, Flame-Retardant PTC, Fluorinated PTC
(3) Insulation Layers: Modified Polyolefins, Flame-Retardant Polyolefins, Fluorinated Polyolefins, Perfluorinated Materials
(4) Shielding Layer: Tin-plated soft round copper wire, coverage density 80%
(5) Sheath Layer: Modified Polyolefin, Flame Retardant Polyolefin, Fluorinated Polyolefin, Perfluorinated Material

II. Technical Specifications
Temperature Range: High operating temperature 135±5℃; Surface temperature 150℃; High-temperature resistance: Modified polyolefin 155℃; Flame-retardant polyolefin 135℃; Fluorinated polyolefin 180℃; Perfluorinated material 205℃.
2. Construction Temperature: -40℃ to above 0℃;
3. Heat Stability: After 1000 on/off cycles and continuous operation for 30 days, the cable's heat output remains above 90%.

4. Bend Radius: 12.7mm at 20℃ room temperature; 35.0mm at -30℃ low temperature.
5. Insulation Resistance: At a cable length of 100m and room temperature of 20°C, after 1 minute of摇试with 1000VDC between the shield layer and the conductor core, the minimum insulation resistance is 20MΩ.
6. Working Voltage: 220, 380, 600 volts, AC/DC compatible; low-voltage products must not be used under high-voltage conditions.

Section 3: Application Scope
(ZR) GWK Flame Retardant and Explosion Proof (High Temperature) Self-Limiting Temperature Electric Trace Heating (also including models such as GBR, KTV, GXW, GKW, GWK, GBW, DZL, etc. of self-limiting temperature electric trace heating) is widely used in process pipelines, tank heating insulation, and frost prevention insulation in the petrochemical, steel, electric power, and other industries. The medium temperature maintenance range is 0～135℃.
1. Basic electric heating tapes are generally used in places without explosion-proof or anti-corrosion requirements, and with low environmental humidity.
2. Protective electric heat tapes are generally used in places without explosion-proof or anti-corrosion requirements, but with high environmental humidity.
3. Explosion-proof electric heaters are generally used in environments that require explosion prevention but not corrosion prevention, with moderate humidity levels.
4. Explosion-proof heating cables are generally used in environments with explosion-proof requirements but no corrosion resistance, and high humidity.
5. Explosion-proof and corrosion-resistant electric heating tapes are generally used in environments that require explosion-proof and corrosion-resistant protection, with high humidity levels.
6. If flame retardancy is required, select the corresponding flame retardant series.
