Application Range:
1. Highly corrosive gas environment;
2. Temperature Groups: T1 ~ T6
3. Specify indoor/outdoor (IP54, IP65*, IP66*, *) when ordering
4. Suitable for explosive gas environments in Zones 1 and 2, IIA to IIC classes, or flammable dust areas in Zones 21 and 22; primarily used in hazardous locations such as chemical industries, oil refining, oil extraction, offshore oil platforms, oil tankers, etc.
Product Features

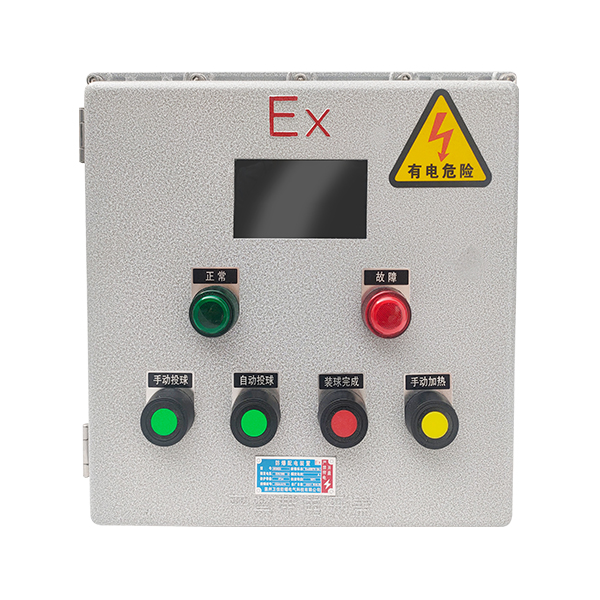

1. Explosion-proof control box with aluminum alloy die-cast shell, surface treated with high-pressure electrostatic powder coating.
2. The shell and shell cover joints feature a labyrinth structure, utilizing high-temperature-resistant and aging-resistant silicone rubber sealing strips for excellent dust and water-proof properties.
3. Explosion-proof enclosures with modular mother blocks that can be assembled according to customer requirements, featuring explosion-proof components (indicating lights, ammeters, tachometers, potentiometers, control buttons, and control switching switches, etc.).
4. Explosion-proof components are easy to install, featuring a track-type structure that can be rapidly mounted on a fixed track (ensuring components are in a precise location), facilitating installation and maintenance.
5. Available for customization with anti-mistake operation devices and additional padlocks upon customer request.
6. Stainless steel exposed fasteners feature a non-loose structure to prevent screw loss when the lid is opened, facilitating user installation and maintenance.
7. Steel pipes or cable wiring
Common Technical Parameters
Total switch current: 63(A), 100(A), 250(A)
Branch Current: 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 200A, 350A (Note: Selection based on customer requirements)
Rated Voltage: 24V, 36V, 110V, 220V, 230V, 240V, 380V, 415V, 500V, 690V (Note: Selection based on customer requirements)
Ex防爆标识,防护等级,防腐等级 specifications
Explosion-proof marking: Exde IIA~IIC T4/T5/T6 Gb; Please contact our company for customization according to your usage environment.
Protection Level: IP54, IP65*, IP66*; Please choose the protection level according to your usage environment, and contact our company for more information.
Corrosion Resistance Grade: W, WF1, WF2*; select the corrosion resistance grade according to your usage environment, please contact our company.
Can the explosion-proof control box be customized by Zizhou Technology?
Of course, our company specializes in the research and production of explosion-proof electrical products, mainly offering explosion-proof distribution boxes, control boxes, wiring boxes, explosion-proof (lighting) power distribution boxes, circuit breakers, maintenance boxes, distribution cabinets, and explosion-proof boxes in the stainless steel series, among other explosion-proof items. We can customize and produce according to customer specifications.
