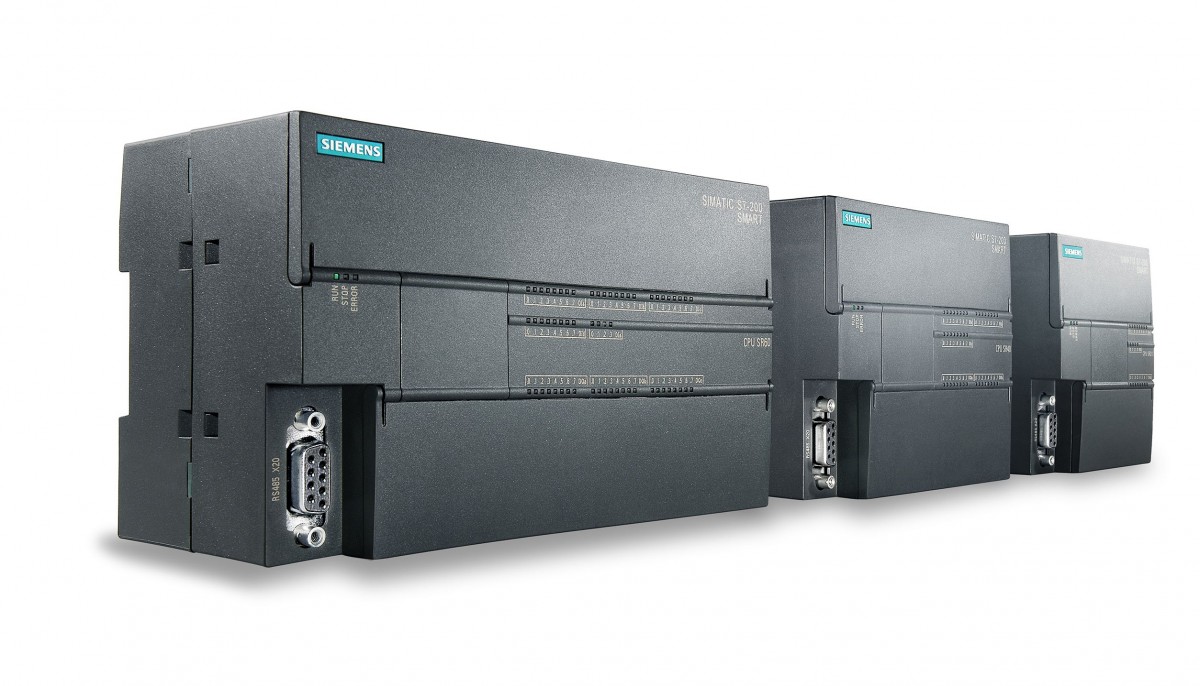

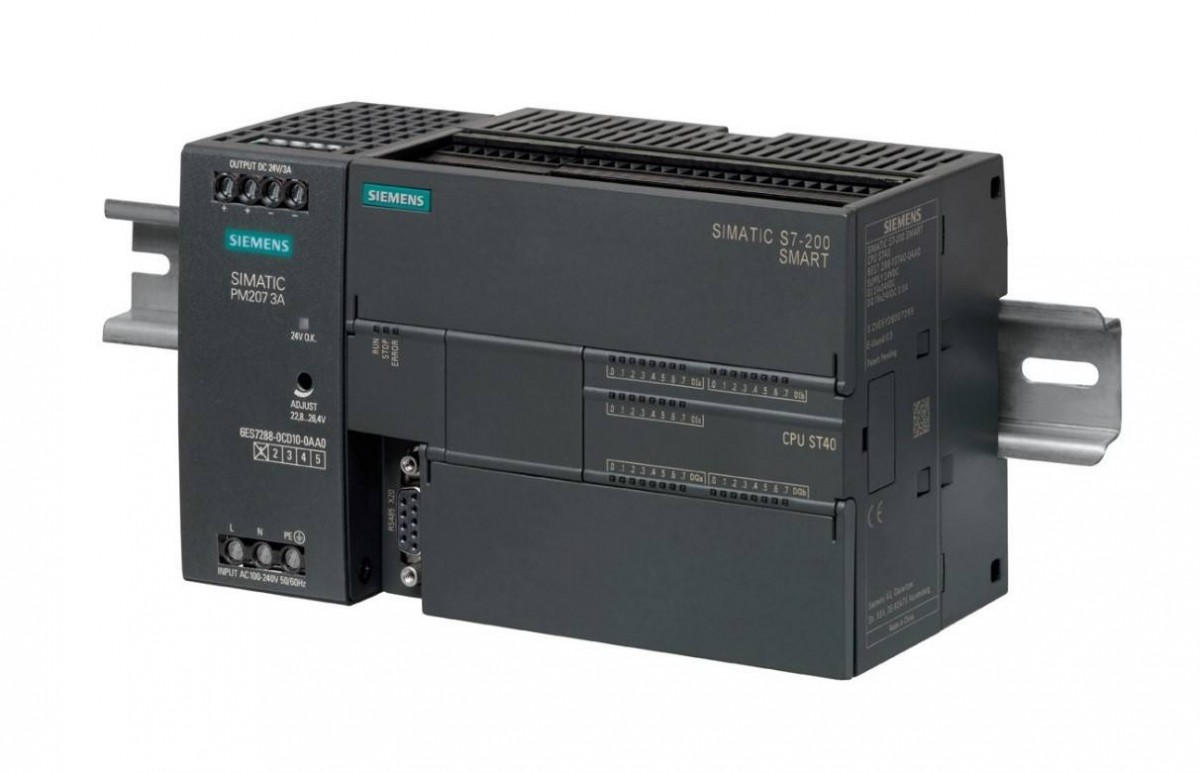

S7-200 SMART CPU Module Main Body Integration1 One Ethernet interface1 ARS485 Interface, via expansionCM01 Signal board orEM DP01 Modules, with communication ports that can be increased to numerous quantities4 A unit that can meet the communication needs of small-scale automated equipment with touchscreens, inverters, and other third-party devices.
Ethernet communication
AllCPU The module is equipped with an Ethernet interface and supports Siemens.S7 Agreement, supports multiple terminal connections:
• Available as a program download port (can be used with a standard Ethernet cable)
• Please provide the Chinese content to be translated.SMART LINE Touchscreen communication, supports multiple8 Taiwanese equipment
• Communicate with multiple Ethernet devices via a switch to achieve rapid data exchange, including8 An active
GET/PUT Connect8 A passive GET/PUT Connect
• Open Ethernet communication, supportsTCP,UDP,ISO_on_TCP Communication Protocols Supported8 A proactive and8 Unit
Passive connection
PROFIBUS Communication
UtilizeEM DP01 Expansion modules can extendS7-200 SMART CPU AsPROFIBUS-DP Connect from the station
PROFIBUS Communication Network. The rotating switch on the module can be setPROFIBUS-DP From Station Address.
Module Support 9600 Port to 12M Any between Ports PROFIBUS Port rate, large allowable 244 Input
Entry bytes 244 Output bytes.
Supports the following protocols:
• MPI From Station
• PROFIBUS-DP From the station
Serial Communication
S7-200 SMART CPU Modules are all integrated1 UnitRS485 Interface, compatible with inverters, touchscreens, and the like
Tri-party equipment communication. Additional serial ports can be added via expansion.CM01 Signal board to be implemented
Board supportRS232/RS485 Free conversion.
Serial port supports the following protocols:
• Modbus RTU
• USS
• Free flow communication
Communication with the master unit
ThroughPC Access SMARTOperators can easily read through the supervisory computerS7-200 SMART The
Data for equipment monitoring or data archiving management.
(PC Access SMART Here we are S7-200 SMART Custom developed for data interaction with the host computer
OPC Server Protocol)
