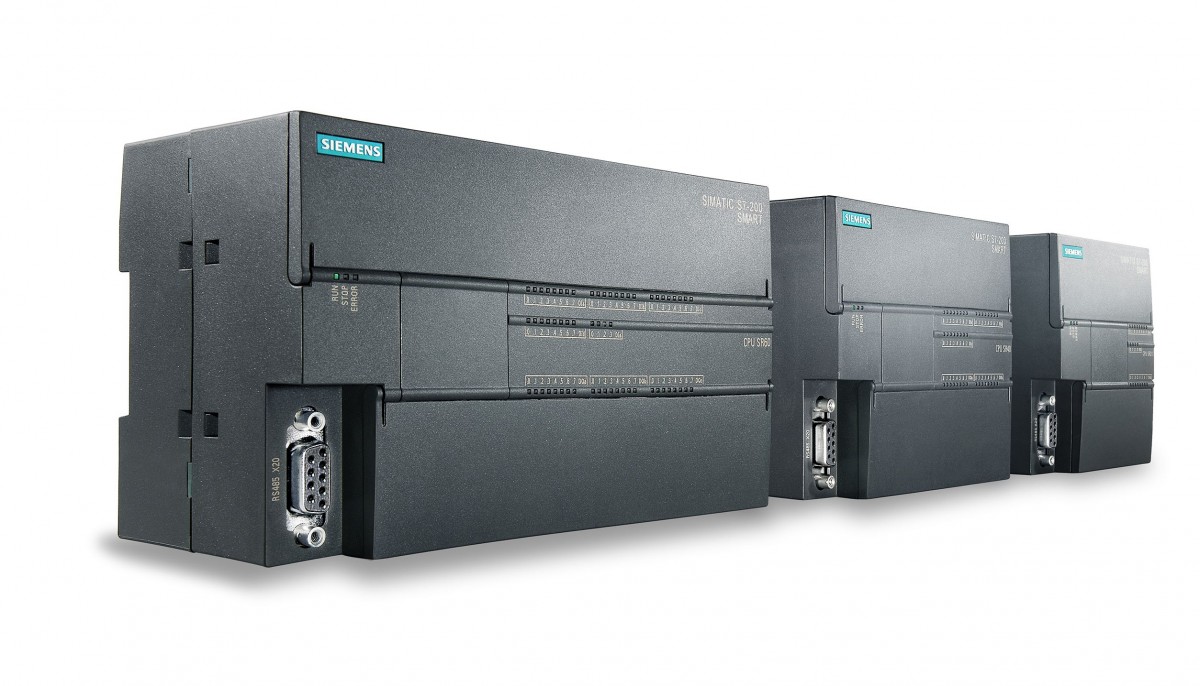

The CPU module is available in four configurations: 20I/O, 30I/O, 40I/O, and 60I/O, offering both standard and economy types. It features an integrated high-speed processor chip with instruction execution time as low as 0.15μs. Communication ports, analog and digital channels, and clock hold functions can be expanded via the signal board. The CPU module itself integrates an Ethernet interface and RS485 serial port, supporting program downloads via the Ethernet interface. It supports Modbus RTU, USS, PROFIBUS-DP, and free port communications. It also features three integrated 100KHz high-speed pulse outputs. It supports downloading programs from universal MicroSD cards.

CPU Module equipped 20I/O、30I/O、40I/O、 60I/O Four configurations available, including standard and economy models.

• Integrated high-speed processor chip, bit instruction execution time up to 0.15μs

• Expand communication ports, analog channels, digital channels, and clock hold functionality via the signal board.

• CPU Module body integrates an Ethernet interface and RS485 Serial port, supports Ethernet interface program download

• Support Modbus RTU、USS、PROFIBUS-DPFree communication channels

• Integrated multi-functionality 3 Road 100KHz Pulse output at high speed

• Support Universal Micro SD Card download program, updates PLC Firmware and Factory Reset

• New programming software with multiple user-friendly features, enhancing project development efficiency.

• PM207Provide direct current power with quality for the entire system

Widescreen7Inch10Two sizes available, supports both horizontal and vertical installation.

• 800x400（7(in.)1024x600（10Resolution of inch64KColorLEDBacklight

• Integrated Ethernet port forS7-200SeriesPLCandLogoCommunicate (multi-connection capable)4(Taiwan)

• Isolation Serial PortRS422/485Adaptive switching, compatible with Siemens, Mitsubishi, Schneider, Omron, and

Delta seriesPLC

• SupportModbus RTUAgreement

• Supports real-time clock hardware functionality

• IntegratedUSB2.0 hostInterface, compatible with mouse and keyboard connectionHubAs wellUSBMemory

• Support for data and alarm record archiving function

• Formula Management, Trend Display, Alarm Function

• ThroughPack&GoFunctions, easily facilitate project updates and maintenance
