The signal module serves as the interface for process operations with the Siemens S7-300 PLC module. The versatility of the S7-300 module range allows for modular customization to accommodate varied tasks.

The S7-300 supports versatile technical tasks and offers comprehensive communication options. In addition to the CPU with integrated functions and interfaces, the S7-300 design includes various specialized modules for technology and communication.

·

Easy installation

Connect sensors/actuators via the front-end connector. The following connection methods are available:

Screw Type Terminal Connector

Spring-type terminal block

Quick Connect (Insulated Piercing)

After replacing the module, simply insert the connector into a new module of the same type, and retain the original wiring. The coding on the front-end connector helps prevent errors.

Quick Connect

Connecting to SIMATIC TOP is simpler and faster (not compact CPU's onboard I/O). Use pre-assembled front-end connectors with a single cable core, and complete plug-in modular systems with front-end connectors, connection cables, and terminal boxes.

Assembly Density

The numerous channels in the module allow the S7-300 to achieve space-saving design. Modules with 8 to 64 channels (digital) or 2 to 8 channels (analog) are available within each module.

· Simple parameterization

Configure and parameterize these modules using STEP 7 without the need for cumbersome conversion settings. Data is stored centrally, and if a module is replaced, the data is automatically transferred to the new module, avoiding any setup errors. No software upgrade is required when using new modules. Configuration information can be copied as needed, for example, for standard machines. Return to the top page

Design and functionality

A variety of digital and analog modules are provided accurately for input/output, tailored to the requirements of each task.

Digital and analog modules differ in channel count, voltage and current ranges, electrical isolation, diagnostic, and alarm functions. Within the range of modules mentioned here, the SIPLUS components are suitable for expanding temperature ranges from -25…60°C and harmful air/condensation.

Diagnostics, Interruption

Many modules also monitor signal acquisition (diagnosis) and signals transmitted back from the process (process interruption). This allows for immediate response to errors occurring in the process (such as open circuit or short circuit) and any process events (such as rising or falling edges during digital input). Programming the controller's response is easily done with STEP 7.

During testing and simulation, the analog module can be inserted into the S7-300. The module simulates encoder signals through LED conversion and indicator output signals.

This module can be inserted anywhere (without adhering to slot rules). This virtual module reserves a slot for unconfigured signal modules. When the module is installed later, the entire configuration's mechanical setup and address allocation will not be changed.

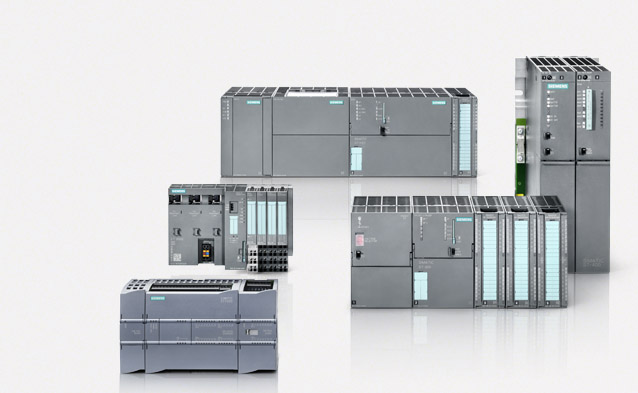

S7-300

• Modular small PLC systems suitable for mid-to-low-end performance requirements

• Modules with various performance levels can meet and adapt to automation control tasks very well.

• Simple and practical distributed structure with multi-interface networking capabilities, highly flexible in application

• User-friendly operation and fanless simple design

• As control tasks increase, it can be freely expanded.

• Extensive integrated features, highly powerful

S7-300F

• Fault-tolerant automation systems to meet the increasing demands of factories

• Based on S7-300

• Connectable ET 200S and ET 200M distributed I/O with type modules

I/O Station

• Communicate via PROFIsafe profile or PROFINET

• Additionally, the standard modules can also be used in the system.

SIPLUS S7-300

Controller for use in harsh environmental conditions

• Extended temperature range of -40/-25 °C to +60/70 °C

• Suitable for medium exposure situations (hazardous gas environments)

• Suitable for use under conditions of condensation and increased mechanical pressure

• Utilizing well-proven S7-300 PLC technology

Easier to handle, program, maintain, and repair.

• Suitable for automotive engineering, environmental engineering, mining, chemical industry, material handling, food processing

Industrial goods

• Can replace expensive customized solutions
