Install Filter Cartridge: Install the corresponding filter cartridge according to the model and specifications of the filter absorber. Generally, the filter cartridge should be mounted at the bottom or side of the equipment.
Pipe Connection: Connect the filter absorber to the ventilation pipeline or other equipment as required. Ensure a tight seal during connection to prevent gas leakage.
After installation, a debugging run should be conducted to check the operation of the filter absorber and ensure its proper functioning.
In summary, the installation of the filter absorber must be carried out in a well-ventilated area, by the manufacturer of filter absorbers, and in accordance with the respective steps. Additionally, safety should be a priority during installation to prevent injuries to personnel or damage to equipment due to improper operation.

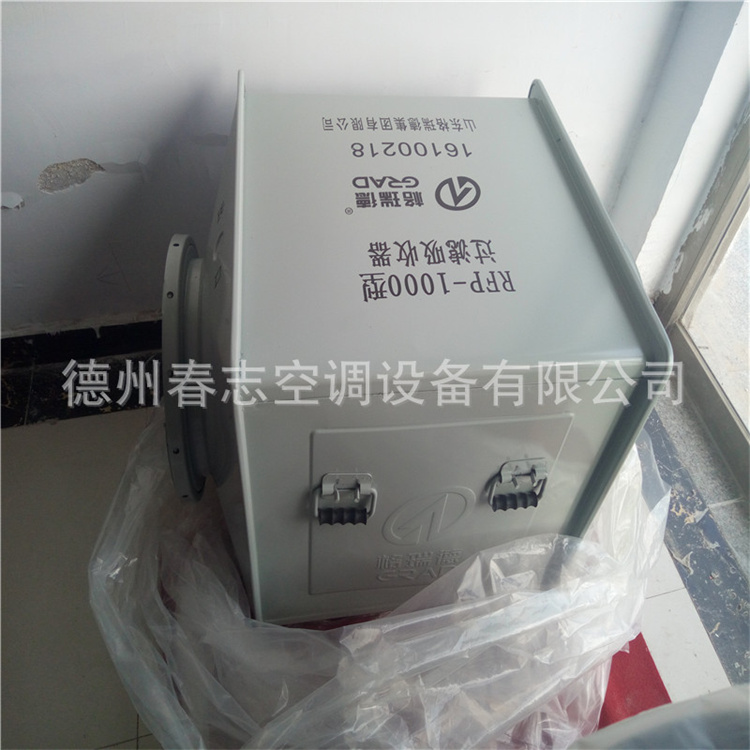

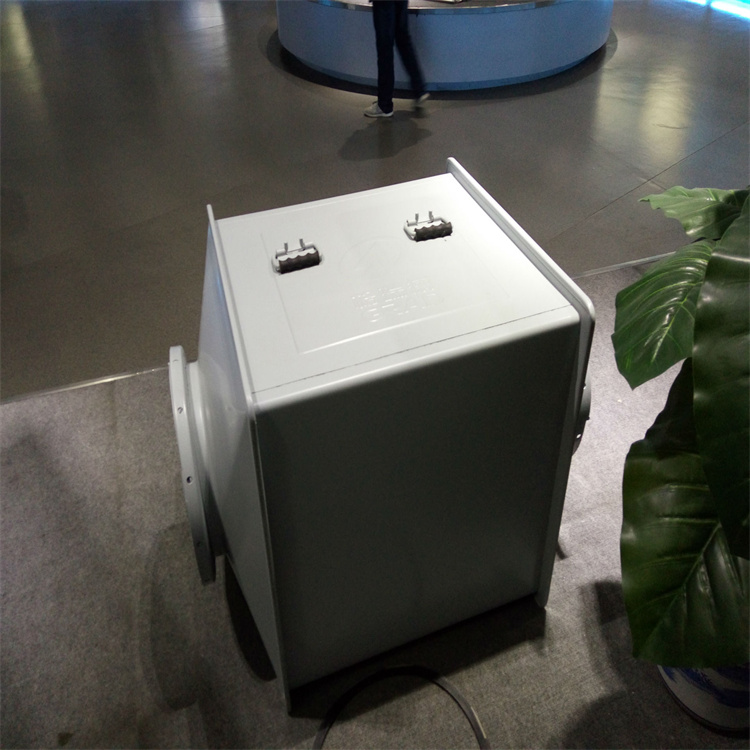

Free radical precision filter unit, filter poison unit, housing, air outlet diffuser, blind cover, and main accessories make up the assembly. The housing and diffuser are sealed and integrated through spin welding. Main technical specifications:
① Rated filter air volume of filter absorber: 1000 mm?/h; ② Resistance: Initial resistance should not exceed 850 Pa; ③ Aerosol transmission rate: Should not exceed 0.001%; ④ Leakage coefficient: Shell leakage coefficient not more than 0.1%; ⑤ Protection dose against simulator (DMMP) vapor: Not less than 400 mg.min/L; ⑥ Efficacy against coliform bacteria: Not less than 95% within 15 minutes; ⑦ Efficacy against spores of Bacillus subtilis: Not less than 80% within 90 minutes; ⑧ External dimensions (length x width x height): (870±5) mm x (623 ±5) mm x (623±5) mm; ⑨ Weight: Not more than (150±10) kg.
Connect the power cord to the electrical plug on the filter absorber: Turn on the power switch of the filter absorber, observe if the indicator light illuminates. If the light is on, it indicates that the active free radical generator is functioning properly. If the light does not illuminate, for the rfp-1000 filter absorber, check and eliminate the fault as per Table 3. Measure resistance: Connect the resistance measuring tubes on both ends of the filter absorber's pipes to the U-tube. Open the ventilation pipe valve and fan, adjust the flow rate to 1000 m/h, and measure the resistance of the filter absorber to the airflow. For the new filter absorber, the resistance should not exceed 850 Pa to meet the specifications.
Open the pipeline valves and fans of the decontamination ventilation system to enter the decontamination ventilation state of the filter absorber; ② If the filter resistance exceeds 1300Pa, or if the filter is contaminated with dust, toxins, or biological agents during use, or if the filter cannot be used further due to other reasons, discontinue use; ③ When biological contamination is confirmed in the decontamination ventilation equipment but the resistance does not exceed 1300Pa, install the new filter absorber and activate the biological inactivation unit during the shutdown of the ventilation equipment to perform biological inactivation. ④ Biological extinguishing has five modes: a) Virus Mode: Press the virus button, the filter absorber is quoted, the corresponding indicator light flashes, works for 15 (1±5%) minutes, and then stops after the indicator light remains on. b) Bacteria Mode: Press the bacteria button, the corresponding indicator light flashes, works for 30 (1±5%) minutes, and then stops after the indicator light remains on. c) Spore Mode: Press the spore button, the corresponding indicator light flashes, works for 180 (1±5%) minutes, and then stops after the indicator light remains on. d) Emergency Mode: In any working mode, press the emergency button, the corresponding indicator light flashes, the controller operates, and pressing the emergency button again turns off the indicator light, stopping the controller. e) Intensified Mode: When working on a specific mode, pressing another button (except the emergency button) causes the corresponding mode indicator light to flash, restarting the timing work with a new timing length based on the longest timing of the pressed button; after the completion of a specific working mode, the mode indicator light remains on, and pressing another button causes the mode to work with the longest timing pressed after the completion of the mode.
