Technical Specifications

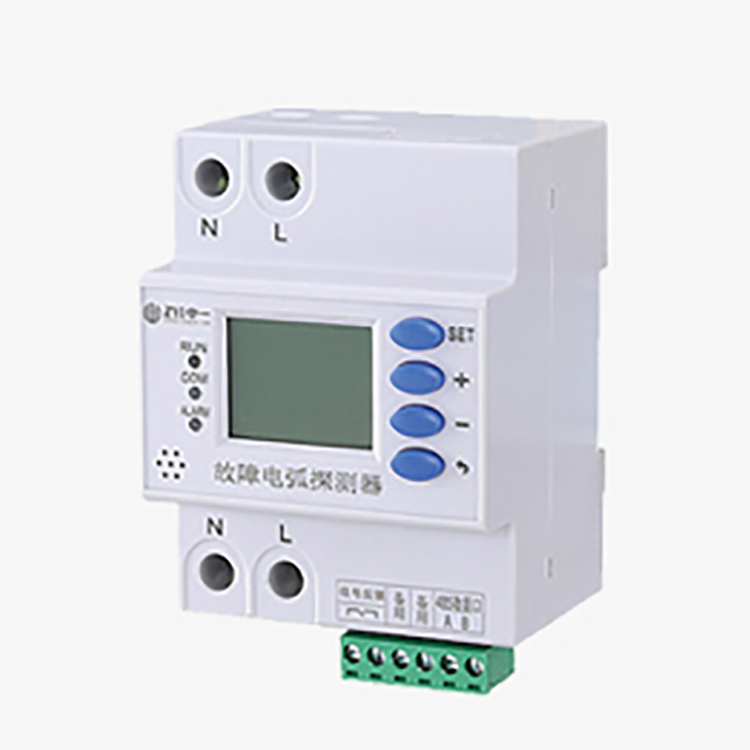

■ Model Specifications: ZY-AFD

■ Working Voltage: AC 220V

Operating Environment: -40~85°C, Humidity: < 90%

Dimensions: 72*95*66mm

Installation Method: 35mm Standard Rail Mount

Feature Highlights

Arc protection, fault arc alarm for loads below AC63A

Voltage protection, rated AC 230V, overvoltage and undervoltage protection

Current protection, rated value AC63A and below, overcurrent protection

LCD liquid crystal cyclic display parameters, protective status indicator with passive normally open contact, capacity AC 250V/5A.

■ 485 Communication, Modbus-RTU Protocol

Event logs, over 5,000 master entries

Dimensions drawing
