Technical Specifications

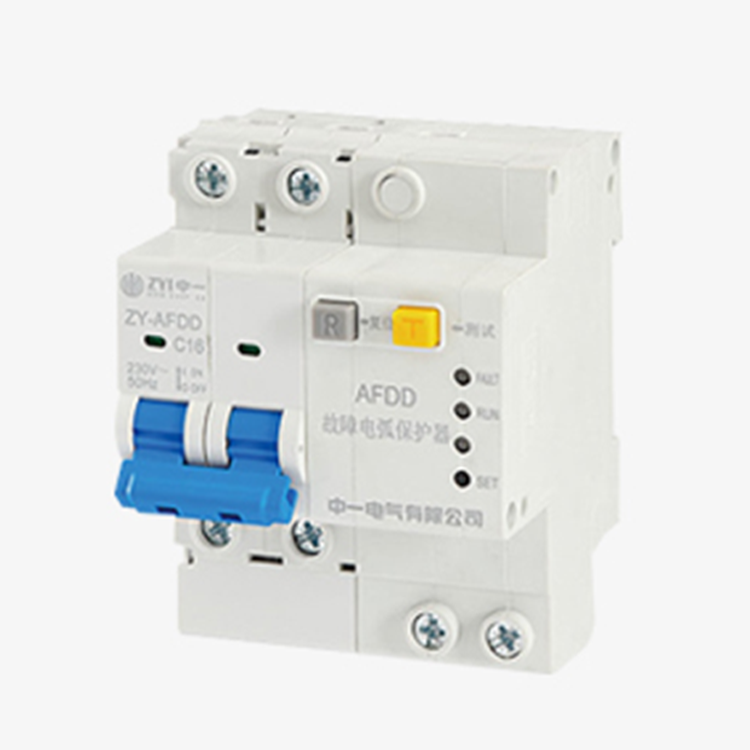

Model Specifications: ZY-AFDD

Rated Operating Current: 1-63A

■ Operating Voltage: AC220V

Operating Environment: -23~+55°C, Humidity: < 90%

■ Dimensions: 1P+N (54*94*65mm) 2P+N (72*94*65mm)

Installation Method: 35mm Standard Rail Mount

Feature Highlights

Voltage protection, rated AC 230V, overvoltage and undervoltage protection

■ Current protection, rated AC63A and below, overcurrent protection

■ Rated short-circuit breaking capacity ICN (kA): 4.5

■ Protection Class: IP20

■ Wire Drawing Capacity mm?: 1-25

■ Altitude: ≤2,000m

■ Installation Environment: Areas free of significant vibration and shock

Product dimensions and structural definition
