Technical Specifications

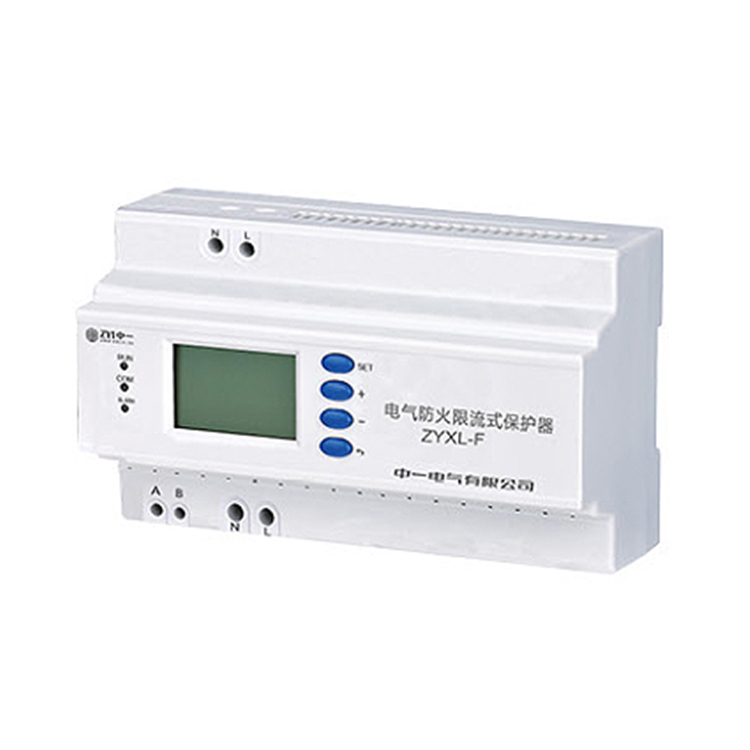

■ Model Specifications: ZYXL-F

Rated Operating Voltage: 220V ±10% 50Hz

Rated Working Current: 6-100A

Temperature Measurement Range: -20~120°C

Over-temperature alarm flow limit: ≥75°C

Overload protection action time: 3~60S

Short-circuit current limiting action time: ≤150us

Communication Method: RS485

■ Dimensions: Guided Type: 160*95*65mm, Wall-Mounted: 160*110*60mm

Model Meaning

Key Features

Short-circuit fault breaking in microseconds

Overload, overvoltage, undervoltage protection

■ Over-temperature protection for the protector body

Line fault protector: Current limiting protection with audio-visual alarm

Wiring diagram
