The working medium of the 200-ton single-armed hydraulic press not only transmits pressure but also ensures the machine's working components are sensitive, reliable, long-lasting, and have minimal leakage.
The basic requirements for the working medium of a 200-ton single-column hydraulic press are:
Features: Appropriate liquidity and low compressibility to enhance transmission efficiency.
② Rust-resistant
③ Excellent lubricating properties.
④Easy to seal
⑤ Stable performance, maintains quality through long-term operation.

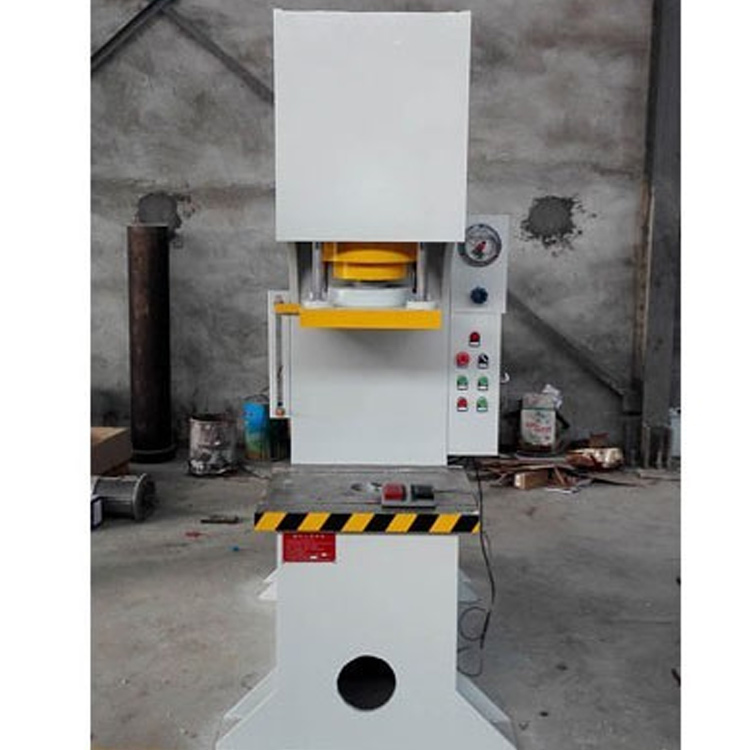

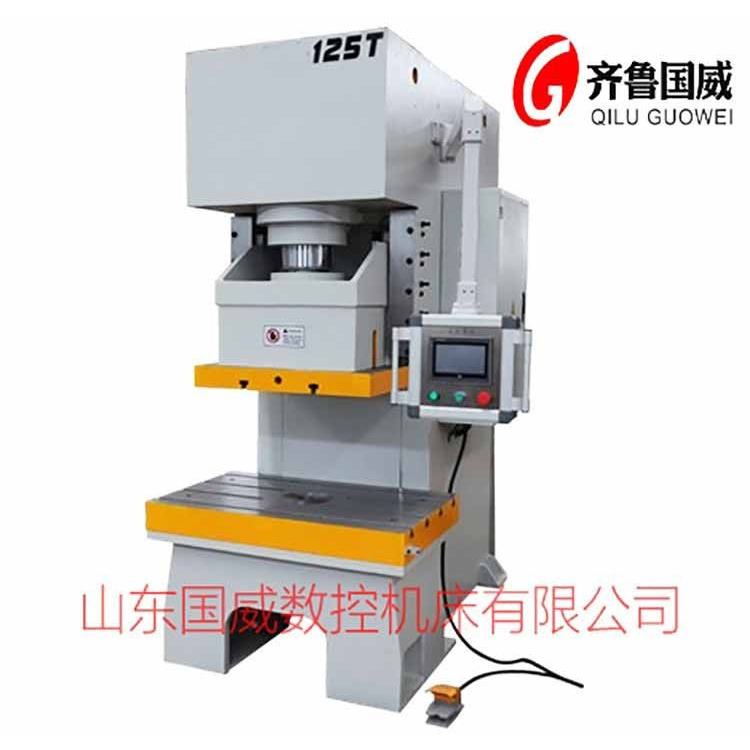

This series of presses utilizes steel plate welding construction, offering high machine strength, stable precision, and long-lasting durability. Equipped with a hydraulic overload protection device, it optimizes three-dimensional space, broadens the working range, and can be custom-made according to customer requirements.
| Parameter Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | KN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Valid Itinerary | mm | 260 | 260 | 280 | 320 | 360 | 400 | 400 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat body | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstream speed | mm/s | 16 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return shipping speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Workbench, left and right | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Workbench front and back | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Blanking hole diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
