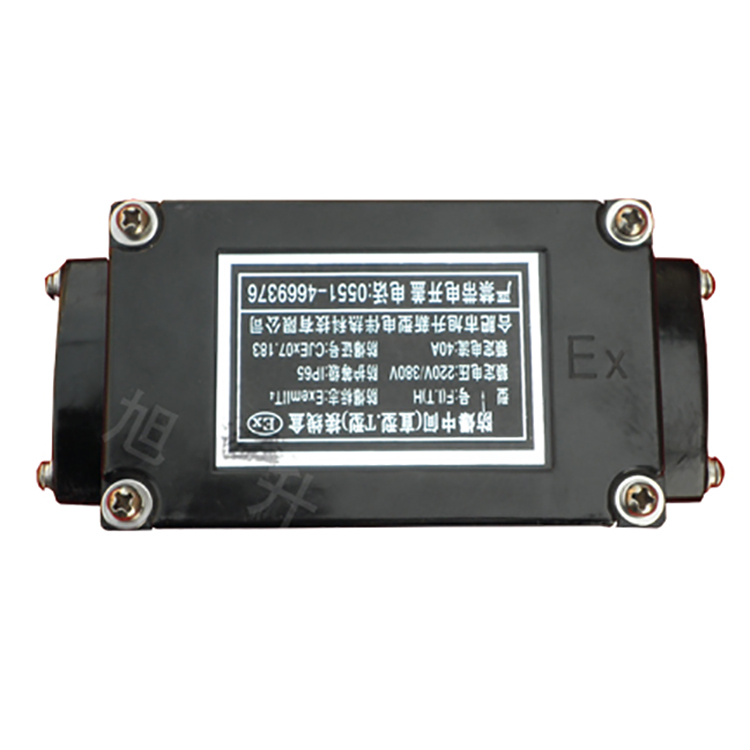

Product Name: Explosion-Proof Two-Way Terminal Box
Product Description:

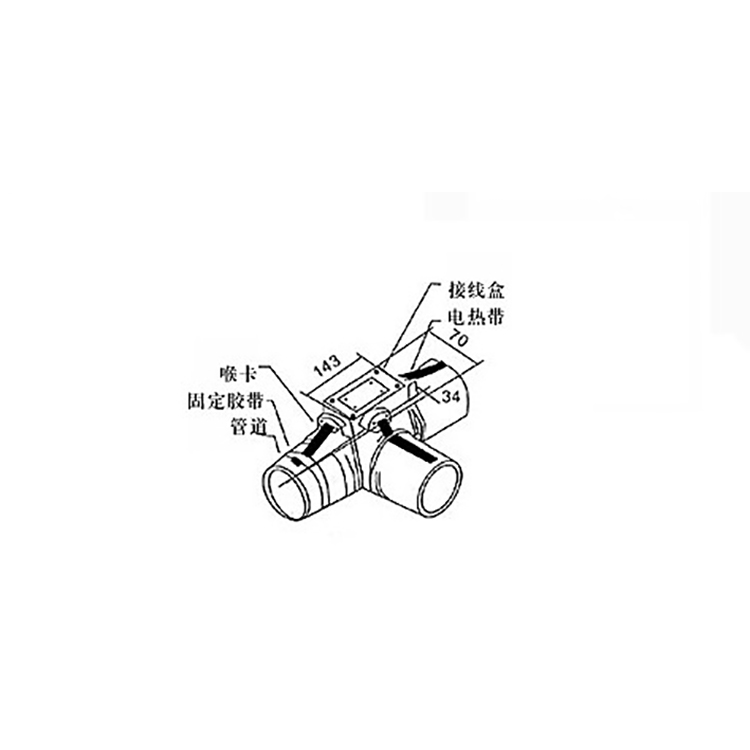

For explosion-proof zone electrical heating cables and their connections, to increase the length of the heating cables or to use different power heating cables on the same pipeline, or in more complex situations like Y-shaped pipelines. It comes in two types: straight-type explosion-proof junction boxes (commonly known as "two-way"), and T-type explosion-proof junction boxes (commonly known as "three-way"). The explosion-proof marking is "IT65". When paired with heating cables, it is suitable for Zone 1 and Zone 2 explosion-proof gas mixture environments in factories. The housing is made of high-strength plastic.
1. Key Technical Specifications:
Rated Voltage: AC 220V/380V
Rated Current: 40A
Explosion-proof marking: IT65
Ex-proof Certificate No.: No. CJEx07.183


Product Precautions:
a. If the junction box housing is found to be deformed, cracked, or damaged, discontinue use.
b. Prevent short circuits and reduce electrical clearances between the electric heating wire, woven copper wire, and core wire during installation.
c. Unused inlet holes should be sealed with the steel plate provided.
