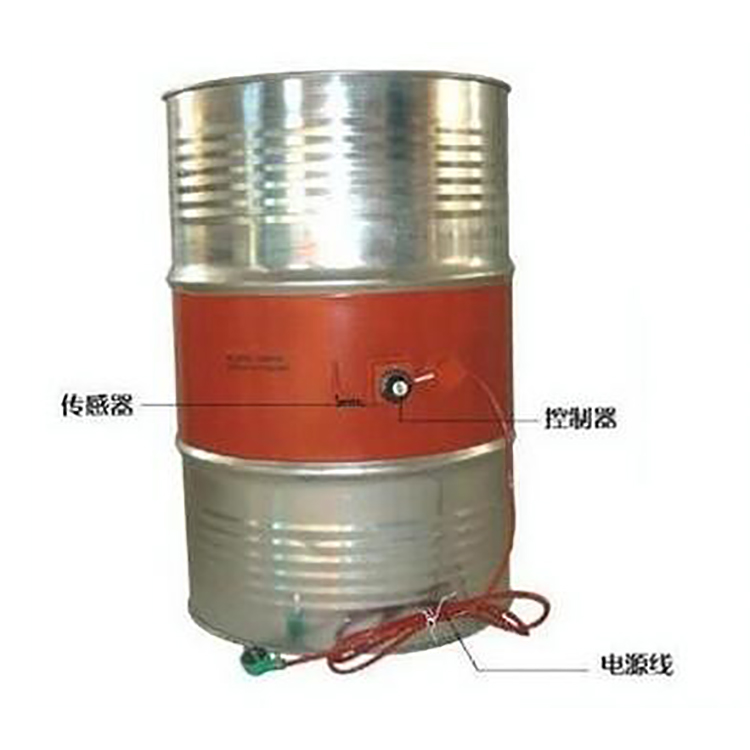

Silicone oil drum heating belts utilize the soft and flexible properties of silicone heating plates. Metal buckles are riveted on both sides of the heating plate, secured with spring clips onto drums, pipes, and tanks. Installation is easy and quick. They allow the silicone heating plate to tightly adhere to the heated area with the spring's tension, ensuring rapid heating and high thermal efficiency. The heating belt facilitates the easy removal of liquids and solids from within the drum, such as adhesives, oils, asphalt, paint, paraffin, oils, and various resin raw materials. By heating the drum, it reduces their viscosity uniformly, easing the pump's workload. Therefore, this device is unaffected by seasons and can be used year-round. Sensors are installed on the surface of the heating belt, allowing direct temperature control through temperature regulation.
Product Specifications:
Parameters/Product Name | 200LOil drum heating belt | 200LOil drum heater belt | 20LOil Drum Heater Belt |
Dimensions | 250*1740mm | 125*1740mm | 200*860mm |
Voltage/Power | 220v2000w(220v3000w) | 220v1000w | 220v800w |
Temperature Range | -20-250℃ | -20-250℃ | -20-250℃ |
Temperature Control Accuracy | ±1℃ | ±1℃ | ±1℃ |
Weight | Approx.0.65kg | Approx.0.5kg | Approx.:0.55kg |
Bucket Diameter | Approximate Diameter:580mm | Approximate Diameter:580mm | Approx. Diameter:300mm |
Purpose:
Oil drum heating bands are used for heating, heat tracing, and insulation of drum-shaped equipment such as tanks and pipelines. They can be directly wrapped around the heated area, making installation and removal convenient. Particularly suitable for paraffin dissolution and preventing wax formation in oil materials during winter.
The surface temperature of the heater when suspended in a stationary air of 20 degrees is 150 degrees Celsius.
The temperature of the heater varies depending on the environment, material, and shape of the object being heated.
