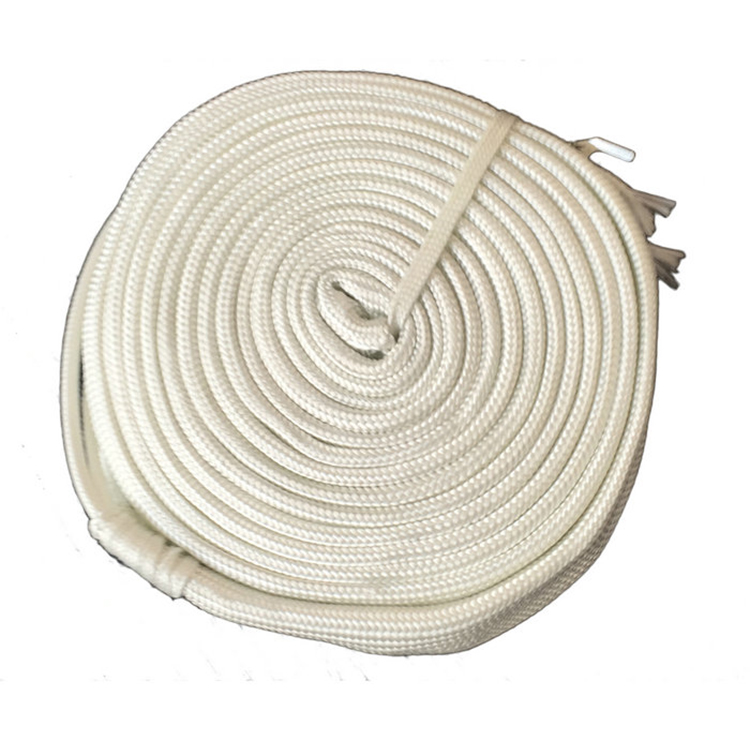

Glass Fiber Electric Heating Tape This product is suitable for heating and insulation of tanks, pipes, troughs, and other containers in various industrial equipment. The glass fiber electric heating tape is mainly composed of electric heating materials and insulating materials. The electric heating material is nickel-chromium alloy strip, featuring fast heating, high thermal efficiency, and long service life. The insulating material is multi-layer alkali-free glass fiber, offering excellent temperature resistance and reliable insulation properties. The glass fiber electric heating tape has a soft structure, can be directly wrapped around the surface of the heated area during use, and provides uniform temperature, easy installation, convenient operation, and safe reliability.
Welcome new and old customers to visit and make purchases.
| Product Name | Voltage:V） | Power （W/Root | Length （mm） | Width （cm） | Wiring Direction | Insulation Resistance | Limited Maximum Temperature |
RDB-1 | 220 | 150 | 1000 | 1-3 | One-way |
＞2MEU |
≤400℃
|
RDB-2 | 220 | 200 | 2000 | 1-3 | One-way | ||
RDB-3 | 220 | 300 | 3000 | 1-3 | One-way | ||
RDB-4 | 220 | 400 | 4000 | 1-3 | One-way | ||
RDB-5 | 220 | 500 | 5000 | 1-3 | One-way | ||
RDB-6 | 220 | 600 | 6000 | 1-3 | One-way | ||
RDB-7 | 220 | 700 | 7000 | 1-3 | One-way or two-way | ||
RDB-8 | 220 | 800 | 8000 | 1-3 | One-way or two-way | ||
RDB-9 | 220 | 900 | 9000 | 1-3 | One-way or two-way | ||
RDB-10 | 220 | 1000 | 10000 | 1-3 | One-way or two-way | ||
RDB-15 | 220 | 1200 | 15000 | 1-3 | Two-way | ||
RDB-20 | 220 | 1500 | 20000 | 1-3 | Bi-directional |
