Detailed Description:

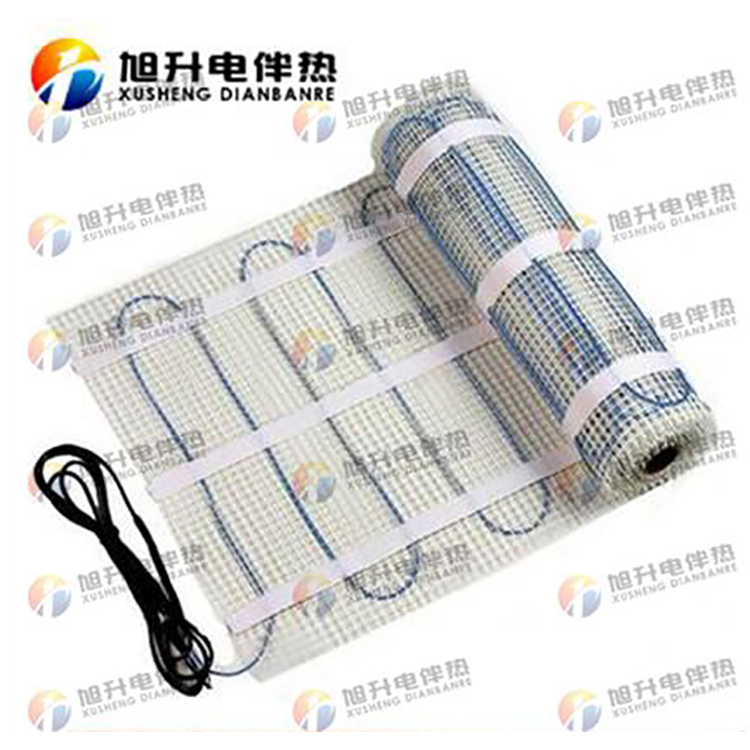

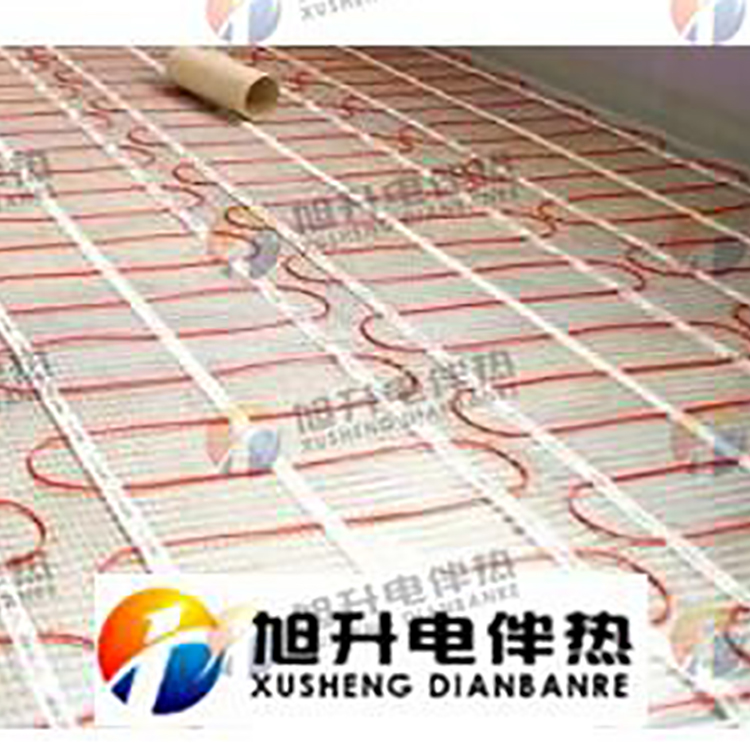

Xusheng double-core heating cable electric heating mats/ground heating mats are composed of diameter 3.5mm high-temperature resistant fluoroplastic double-core heating cables and glass fiber mesh. The ground heating mat is an advanced ground heating system that can be directly embedded under 8-10mm of adhesive in ground decorative materials without the need for a concrete layer, offering flexibility in installation and ease of standardized operations, suitable for various types of ground decorative materials. It can be installed in tile adhesive on concrete floors, wooden floors, old tiles, or terrazzo without significantly affecting the ground level. Xusheng's ultra-thin electric heating mats can also be laid directly on existing floors without any additional treatment to the original surface. The thin preheating layer allows you to achieve the desired ground temperature in just 20-30 minutes after system startup, making this rapid heating heating system an excellent choice for bathrooms and other residential areas. (Heating ground mats are also known as electric ground heating mats)
Product Name: Dual-Conductive Heating Mat Series
Temperature Range: 0-65℃
Operating Temperature: 105℃
Standard Power: 150-200 W/M²
Common Voltage: 230V
Section II: Performance of Heating Mat
1. Structure
Outer Sheath: Polyfluoroethylene (FEP)
Grounding Wire: Bare Copper Wire
Insulation Layer: Aluminum Foil + Copper Wire
Insulated conductor: Alloy resistance wire + copper wire.
Internal Insulation: Polyfluoroethylene (FEP)
Connector Type: External Connector
2. Dimensions
Outer Diameter: 3.5 mm
3. Electrical Parameters
Supply Voltage: 220V (Voltage available for customization)
Linear Power: 12W/m
Power Density: 150 W/m²
4. Miscellaneous
Cold Line Length: 3m
Higher Surface Working Temperature: 120 °C
Smaller bending coefficient: 5D.
Section 3: Model and Parameters of Dual-Conductive Heat Mat
Model | Thermal Dissipation Area | Standard Width | Power |
m2 | m×m | w | |
XS-mat150-1.0 | 1 | 0.5×2 | 150 |
XS-mat150-1.5 | 1.5 | 0.5×3 | 225 |
XS-mat150-2.0 | 2 | 0.5×4 | 300 |
XS-mat150-2.5 | 2.5 | 0.5×5 | 375 |
XS-mat150-3.0 | 3 | 0.5×6 | 450 |
XS-mat150-3.5 | 3.5 | 0.5×7 | 525 |
XS-mat150-4.0 | 4 | 0.5×8 | 600 |
XS-mat150-5.0 | 5 | 0.5×10 | 750 |
XS-mat150-6.0 | 6 | 0.5×12 | 900 |
XS-mat150-7.0 | 7 | 0.5×14 | 1050 |
XS-mat150-8.0 | 8 | 0.5×16 | 1200 |
XS-mat150-9.0 | 9 | 0.5×18 | 1350 |
XS-mat150-10 | 10 | 0.5×20 | 1500 |
XS-mat150-12 | 12 | 0.5×24 | 1800 |
Model | Cooling Area | Standard Width | Power |
m2 | m×m | w | |
XS-mat200-1.0 | 1 | 0.5×2 | 200 |
XS-mat200-1.5 | 1.5 | 0.5×3 | 300 |
XS-mat200-2.0 | 2 | 0.5×4 | 400 |
XS-mat200-2.5 | 2.5 | 0.5×5 | 500 |
XS-mat200-3.0 | 3 | 0.5×6 | 600 |
XS-mat200-3.5 | 3.5 | 0.5×7 | 700 |
XS-mat200-4.0 | 4 | 0.5×8 | 800 |
XS-mat200-5.0 | 5 | 0.5×10 | 1000 |
XS-mat200-6.0 | 6 | 0.5×12 | 1200 |
XS-mat200-7.0 | 7 | 0.5×14 | 1400 |
XS-mat200-8.0 | 8 | 0.5×16 | 1600 |
XS-mat200-9.0 | 9 | 0.5×18 | 1800 |
XS-mat200-10 | 10 | 0.5×20 | 2000 |
XS-mat200-12 | 12 | 0.5×24 | 2400 |
