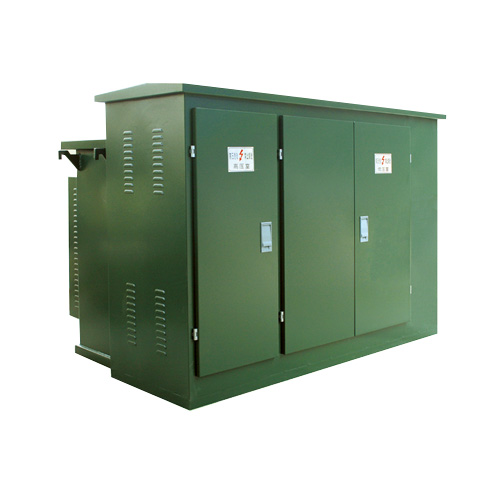

ZGS □-12 Pre-Installed Substation (American Style)

Product structural features

Compact structure, small size, only 1/3 to 1.5 times the volume of domestic European-style transformers of the same capacity, significantly reducing the occupied area.

2. Full-sealed, fully-insulated construction; no insulation distance required, reliably protecting personal safety.

3. High-voltage wiring is suitable for both ring networks and terminals, offering flexible power supply methods and high reliability.

4. Transformer Performance: Low loss, low noise, and low temperature rise; strong overload capacity, short-circuit resistance, and strong shock resistance.

5. Meets various low-voltage distribution requirements; options include pre-set schemes or custom designs.

6. We offer two types of cable heads: 200A elbow-type plug and 600A "T" type fixed cable connectors. Both are available with full insulation zinc oxide surge arresters. The 200A cable head is suitable for load-bearing insertion and removal, and also serves as a disconnect switch.

Application Environment Conditions

◆Altitude: 4,000m

◆Wind Speed: Equivalent to 34 m/s not exceeding 700 Pa.l.

◆Humidity: Daily average relative humidity not exceeding 95%; monthly relative humidity not exceeding 95%

Vibration Resistance: Horizontal acceleration not exceeding 0.4 m/s², vertical acceleration not exceeding 0.15 m/s².

Installation Site Inclination: Not greater than 3°

◆Installation Environment: Surrounding air is free from significant contamination by corrosive, flammable gases, etc., and the installation site is free from severe vibrations.

◆Should the order for this product exceed the provisions mentioned above, please negotiate with our company.
