Product Overview
Features and Specifications

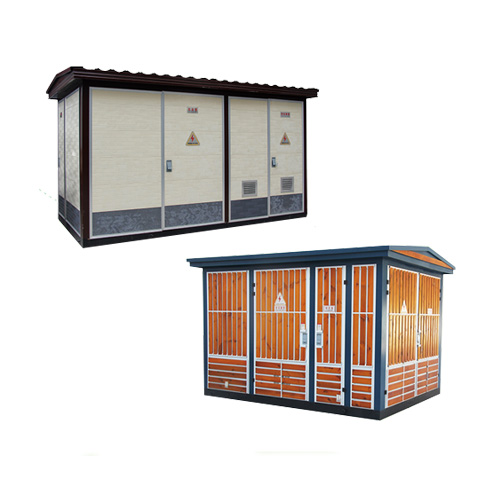

Pre-assembled substation (also known as a modular substation) is more...
High-voltage switchgear, transformers, and low-voltage switchgear integrated as a complete set, highly adaptable; versatile and convenient for building power stations, widely used in urban network renovations.
2. Comprehensive high and low voltage protection; safe and reliable operation; simple maintenance; suitable for high-rise buildings, residential complexes, industrial parks, and commercial centers
3. Low land use, cost-effective investment, short production cycle, easy to move: suitable for locations such as hearts, airports, train stations, docks, schools, and mining enterprises.
4. Flexible and diverse local solutions: Pre-assembled substation (hereinafter referred to as "box substation") with high voltage breakers
5. Unique Structure: The unique honeycomb structure of the double-layer (composite) shell is robust, providing excellent heat insulation and ventilation, with an aesthetically pleasing and high protection grade. The shell materials consist of stainless steel alloy, aluminum alloy, cold-rolled steel, color steel, tile cladding, wood paneling, and new switchgear, transformers, and low-voltage switchgear. Environmental-friendly materials are used; surface watercolor painting is optional: The overall layout includes modular and integrated (commonly known as Euro-transformer) options.
6. Various Styles: Standard, Villa, Compact; Multiple Styles: The combination style consists of three separate rooms forming an "eye" shape.
7. The high-voltage ring main cabinet can be equipped with an automated terminal unit (FTU) for reliable detection of short-circuit and single-phase grounding faults. It features a "four or eight" pattern layout, an integrated design centered around the transformer, and a "remote control" function, facilitating the upgrade of distribution automation. This series is widely used in urban grid transformation, residential communities, high-rise buildings, high-voltage load switches, and fuses installed within transformer cabinets in industrial and mining areas, hotels, shopping malls, airports, railways, oil fields, ports, highways, and temporary power supply facilities, among other indoor integrated layouts.
