Product Overview

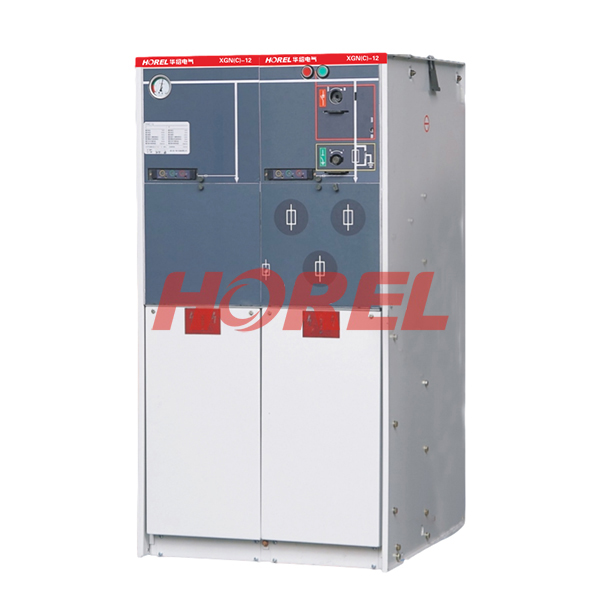

The switchgear is in a modular unit configuration, which can be combined for various applications.;Comprised of fixed modular units and expandable modular units, these cater to the flexible usage needs of compact switchgear for various substation types.HXGN(C)- 12The type of inflatable switchgear is a completely sealed system, with all live components and switches enclosed within a stainless steel housing. The entire switchgear is unaffected by external environmental conditions, ensuring operational reliability and personal safety, and achieving maintenance-free operation. By selecting expandable busbars, any combination can be achieved for full modularization. The safe insulation and shielding of the expansion busbars ensure high reliability and safety.XGN(C)- 12Type inflatable switch cabinets can also provideTVChemical Automation Solutions;The concept of an intelligent switch has been developed, reducing the workload for on-site installation and debugging.HXGN(C)- 12The type of inflatable switchgear is divided into non-expandable standard configuration and expandable standard configuration. Due to its combination of full and semi-modules, as well as its own expandability, it offers unique flexibility.HXGN(C)- 12Type inflatable switchable switch actuatorGBStandard. Under indoor conditions(20°C)Operating design life exceeds30Year.

Normal operating conditions

Ambient air temperature: -15°C to +40°C.

2. Altitude: 1000m and below.

3. Humidity Conditions:

Average daily value not exceeding 95%, average daily steam pressure not exceeding 2.2 KPa.

The monthly average does not exceed 90%, and the monthly average steam pressure does not exceed 1.8 KPa.

4. Earthquake Intensity: Not exceeding 8 degrees.

5. No areas with corrosive or flammable gases, or other obvious pollutants.

Note: For usage beyond the normal conditions stated, customers may negotiate with our company.

Technical Specifications
