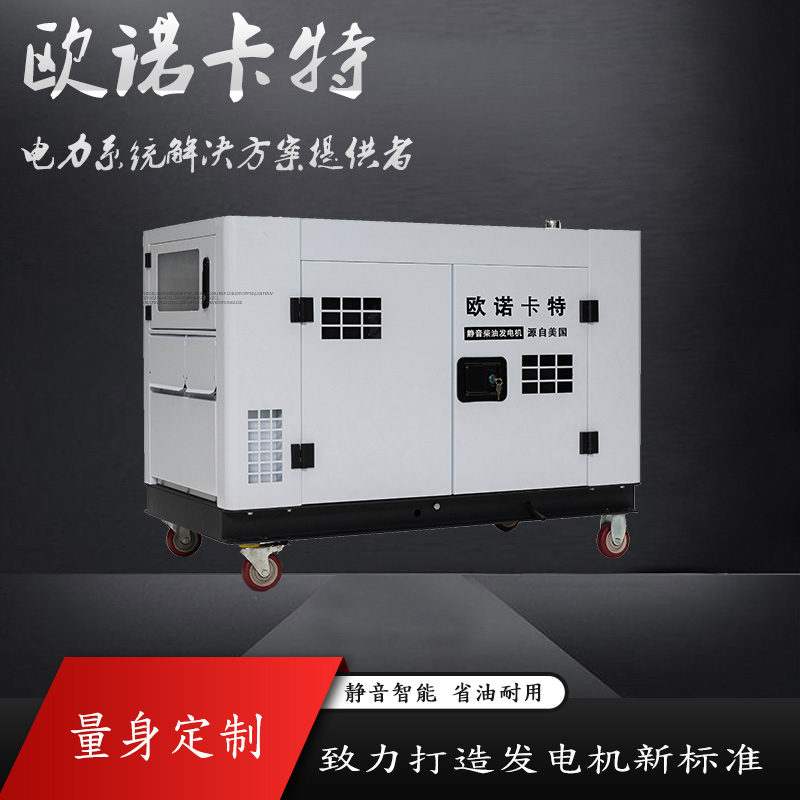

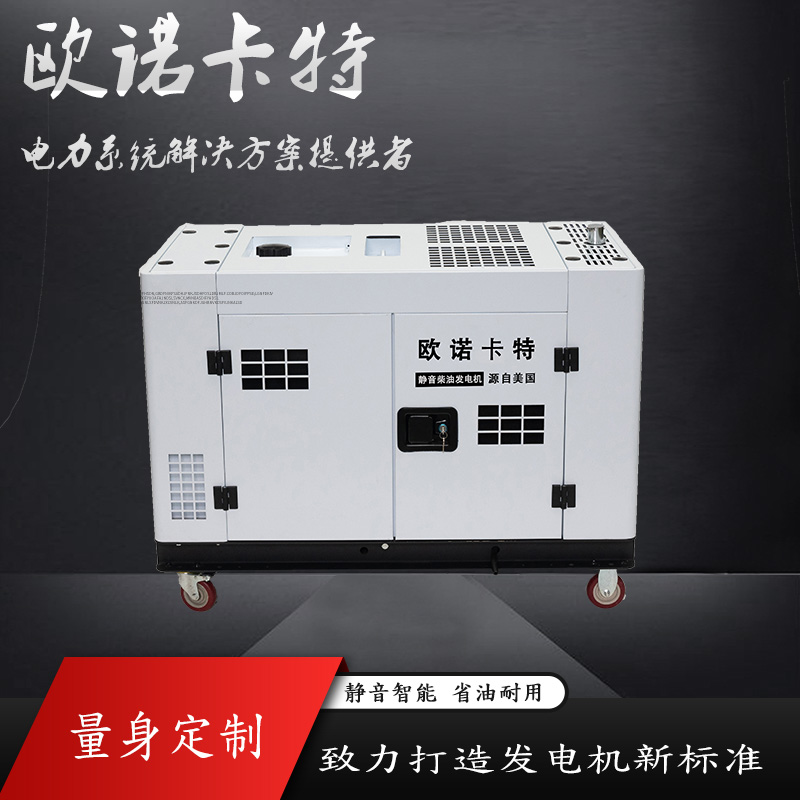

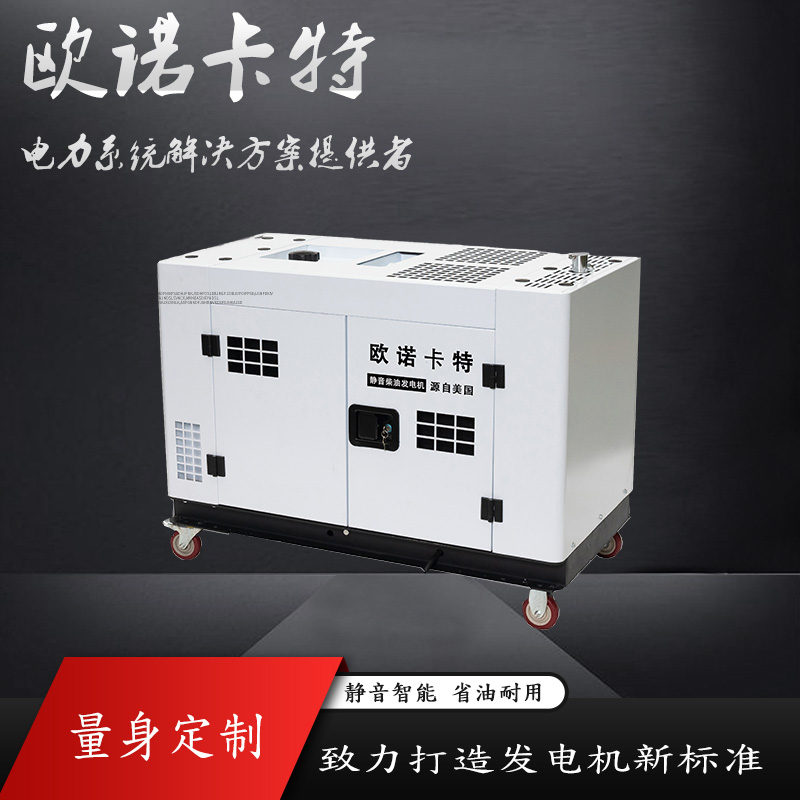

Model No.:CAT-15J

Generator specifications

Rated Power: 15KW

Standby Power: 16KW

Rated Frequency: 50HZ

Rated Voltage: 220/380V

Structure Type: Silent type-

Power Factor: 0.8/1

Please provide the Chinese content to be translated.    Quantity: Single/Three-phase

Startup Method: Electric start (optional fully automatic)

Direct Current Output: 12-8.3（V-A）

Engine specifications

Engine Model CAT2V92

Consumption Oil Quantity: 205g/kw.h

Fuel Tank Capacity: 28L

Oil Capacity: 2.3L

Overload Capacity: 110%/1h

Bore diameter*Itinerary: 2*80*79mm

Piston displacement:997ml

Pressure Shrink Please provide the Chinese content you would like translated into American English. 19：1

Insulation Grade: F

Oil Type:SAE10W30OrCD）

Fuel Model: 0#Or-10#Diesel

Speed control method: Automatic speed control

Cooling Method: Air Cooling

Rated Speed: 3000r/min

Cylinder Structure: Twin cylinder,VType,Four-stroke

Combustion System: Direct喷射式

Complete Machine Specifications

Office Hours: 8-12H

Noisedb）7M 68-76

Burn Oil Table:     Available

Electricity Pressure Table:     Available

Output Indicator: Available

Machine Weight: 295/325kg

Dimensions: 1250*650*760mm
