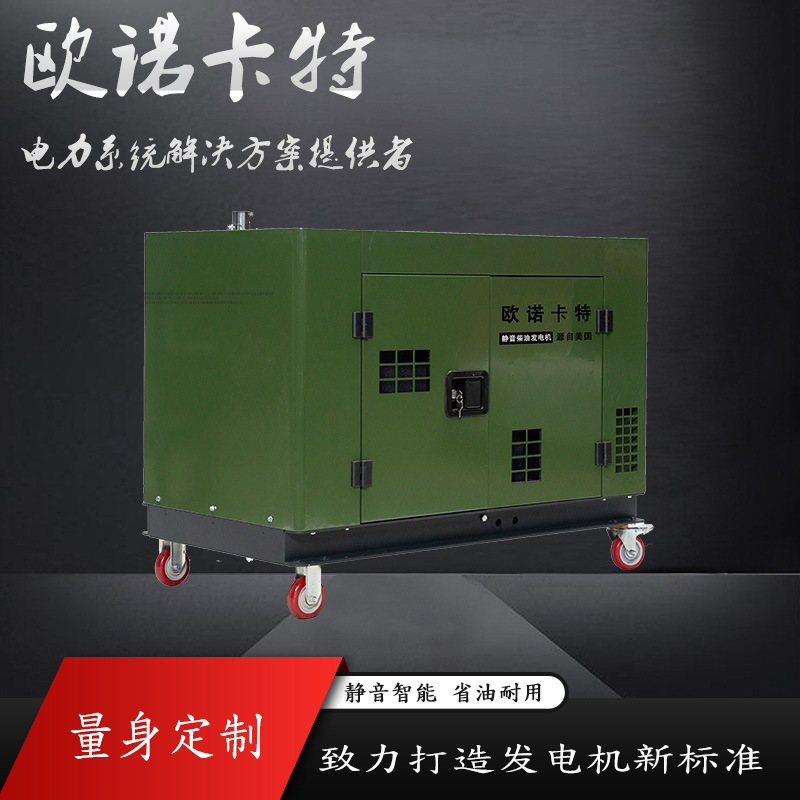

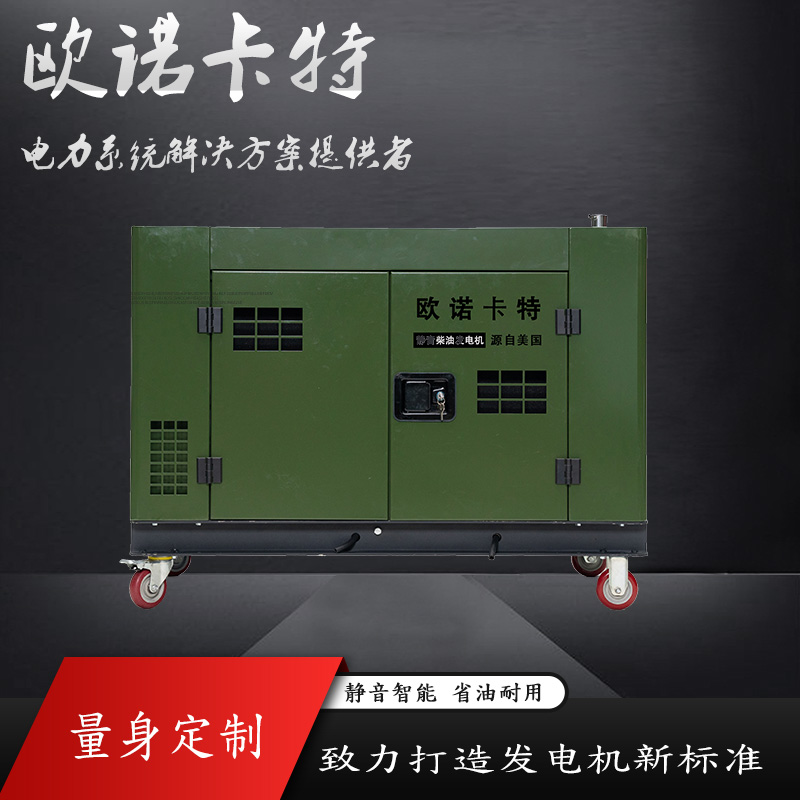

Model No.:CAT-10J

Generator specifications

Rated Power: 10KW

Standby Power: 11KW

Rated Frequency: 50HZ

Rated Voltage: 220/380V

Structure Type: Silent-type

Power Factor: 1.0

Phase Count: Single/Three-phase

Startup Method: Electric Start (optional fully automatic)

Direct Current Output: 12-8.3（V-A）

Engine specifications

Engine Model:CAT2V88

Fuel Consumption: 205g/kw.h

Fuel Tank Capacity: 32L

Oil Capacity: 2.2L

Overload Capacity: 110%/1h

Bore diameter*Itinerary: 2*80*79mm

Piston displacement:875ml

Compression Ratio: 19：1

Insulation Grade: F

Oil Type:SAE10W30OrCD）

Fuel Model: 0#Or-10#Diesel

Speed Control Method: Automatic Speed Control

Cooling Method: Air Cooling

Rated Speed: 3000r/min

Cylinder structure: Twin-cylinder,VType,Four-stroke

Combustion System: Direct喷射式

Complete Machine Specifications

Office Hours: 8-12H

Noisedb）7M 68-76

Fuel Gauge: Available

Voltage meter: Available

Output Indicator: Available

Machine Weight: 295/325kg

Dimensions: 1250*650*760mm
