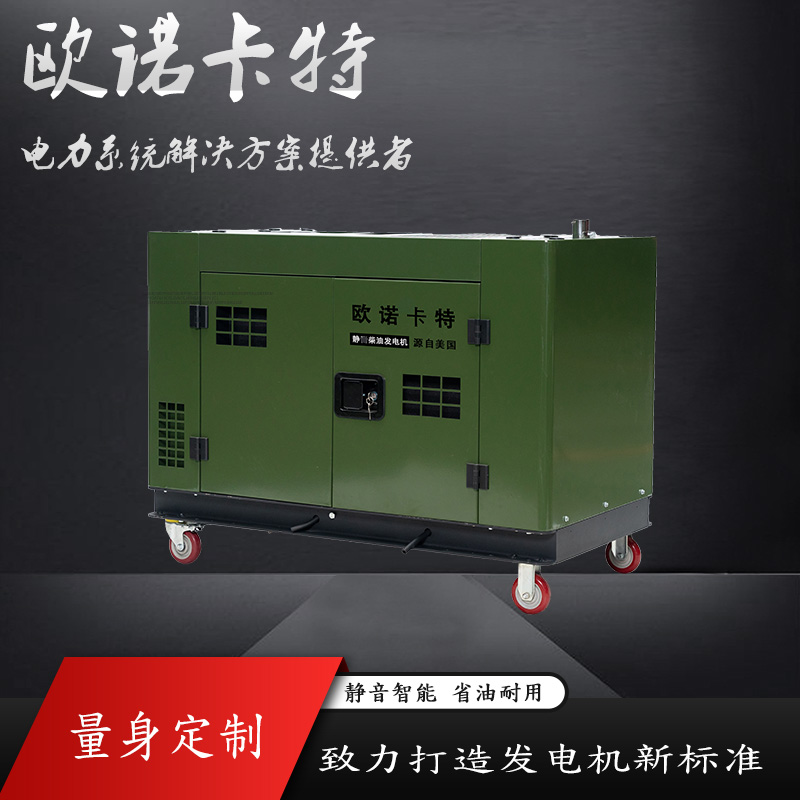

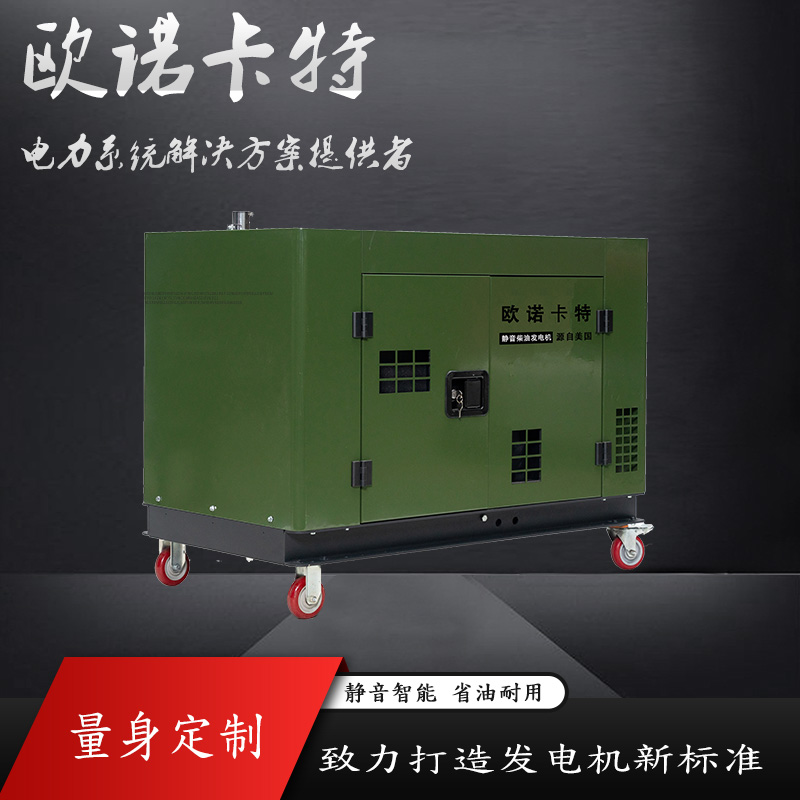

Model No:CAT-12J

Generator specifications

Rated Power: 12KW

Standby Power: 13KW

Rated Frequency: 50HZ

Rated Voltage: 220/380V

Structure Type: Silent type

Power Factor: 1.0

Phase Count: Single/Three-phase

Startup Method: Electric start (optional full automatic)

DC Output: 12-8.3（V-A）

Engine Specifications

Engine Model CAT2V92

Fuel Consumption: 205g/kw.h

Fuel Tank Capacity: 32L

Engine Oil Capacity: 2.2L

Overload Capacity: 110%/1h

Bore diameter*Itinerary: 2*80*79mm

Piston displacement:997ml

Compression Ratio: 19：1

Insulation Grade: F

Fuel Model: 0#Or-10#Diesel

Speed Control Method: Automatic Speed Control

Cooling Method: Air Cooling

Rated Speed: 3000r/min

Engine Oil Type:SAE10W30OrCD）

Cylinder structure: Twin cylinder,VType,Four-stroke

Combustion System: Direct喷射式

Complete Machine Specifications

Office Hours: 8-12H

Noisedb）7M 68-76

Fuel Gauge: Available

Voltage Gauge Available

Power indicator light: Available

Machine Weight: 295/325kg

Dimensions: 1250*650*760mm
