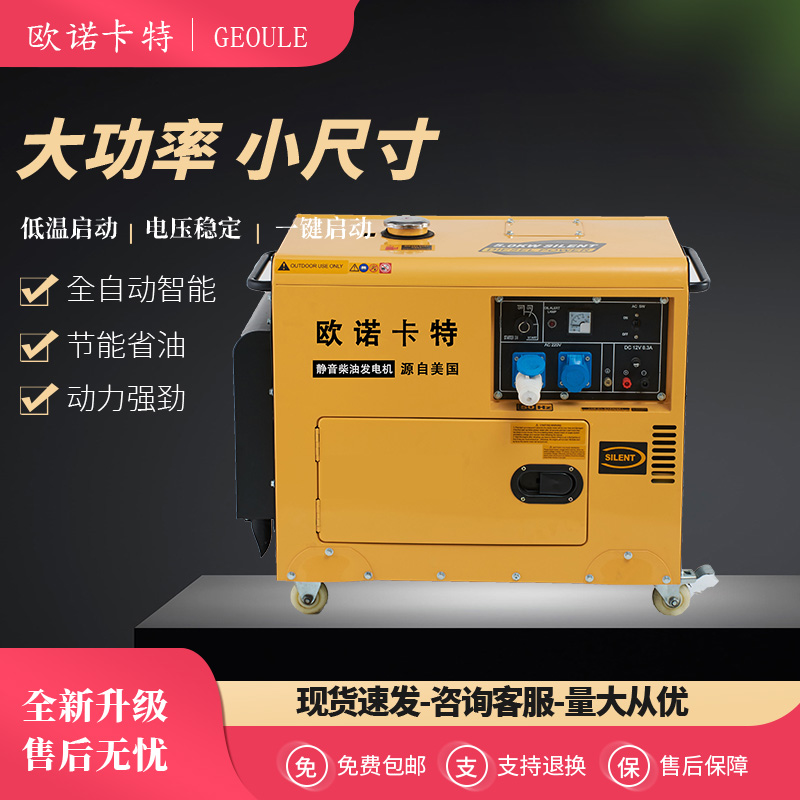

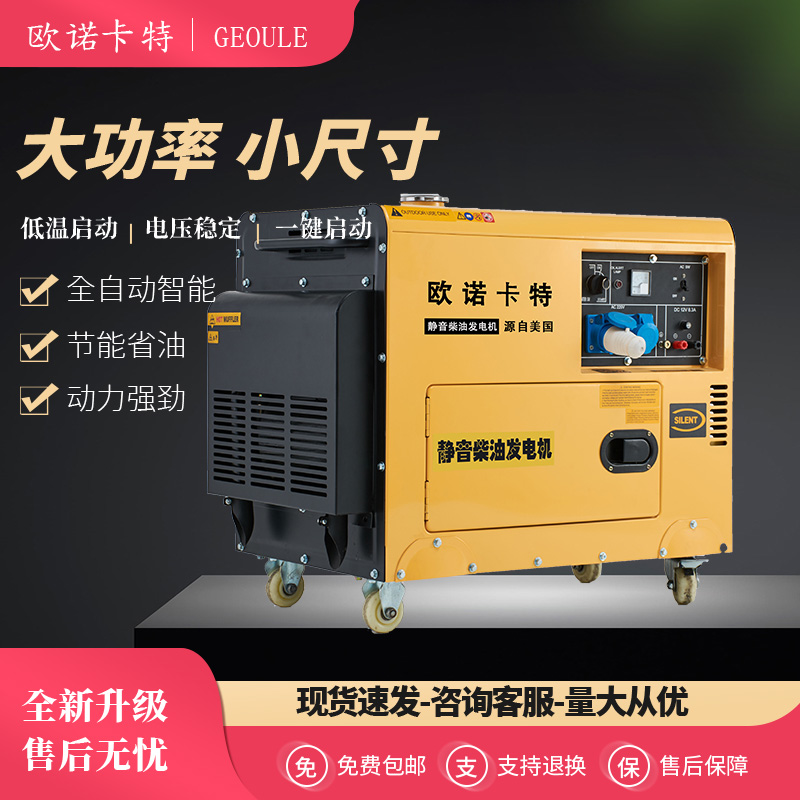

Model No:CAT-8J

Generator specifications

Rated Power: 8KW

Standby Power: 8.2KW

Rated Frequency: 50HZ

Rated Voltage: 220/380V

Structure Type: Silent-type

Power Factor: 0.8/1

Please provide the Chinese content to be translated.    Number: Single/Three-phase

Startup Method: Electric start (optional full automatic)

Direct Current Output: 12-8.3（V-A）

Engine specifications

Engine Model CAT195

Consumption Oil Quantity: 205g/kw.h

Fuel Tank Capacity: 25L

Oil capacity: 1.75L

Overload Capacity: 110%/1h

Bore diameter*Itinerary: 80*79mm

Piston displacement:531ml

Pressure Short Compare: 19：1

Insulation Grade: F

Oil Type:SAE10W30OrCD）

Fuel Model: 0#Or-10#Diesel

Speed control method: Automatic speed regulation

Cooling Method: Air Cooling

Rated Speed: 3000r/min

Cylinder structure: Single-cylinder,Air-cooled, Four-stroke,Vertical

Combustion System: Direct喷射式

Complete Machine Specifications

Office Hours: 8-12H

Noisedb）7M 68-76

Burn  Oil  Table: Available

Electricity  Pressure  Table: Available

Power indicator light: Available

Machine Weight: 160/175kg

Dimensions: 940*530*700mm
