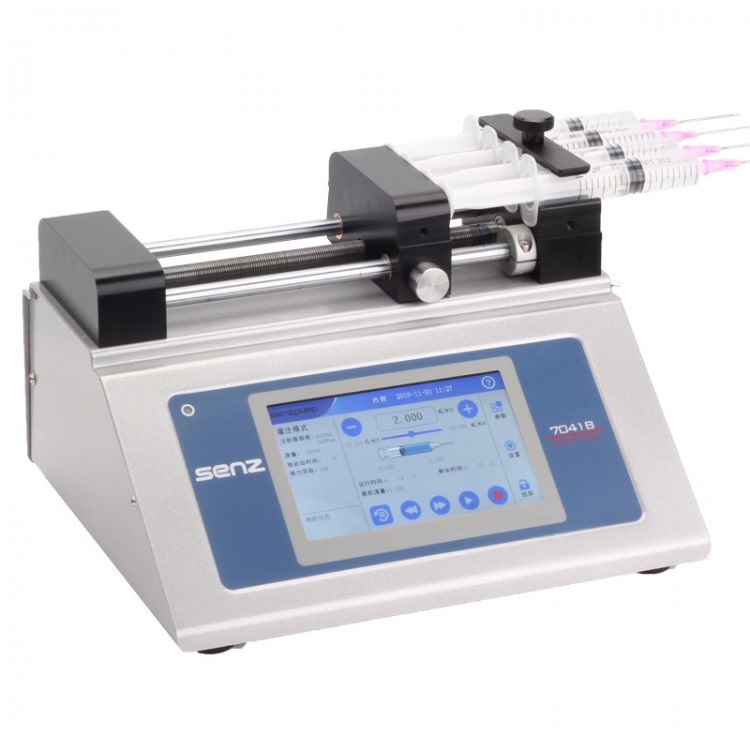

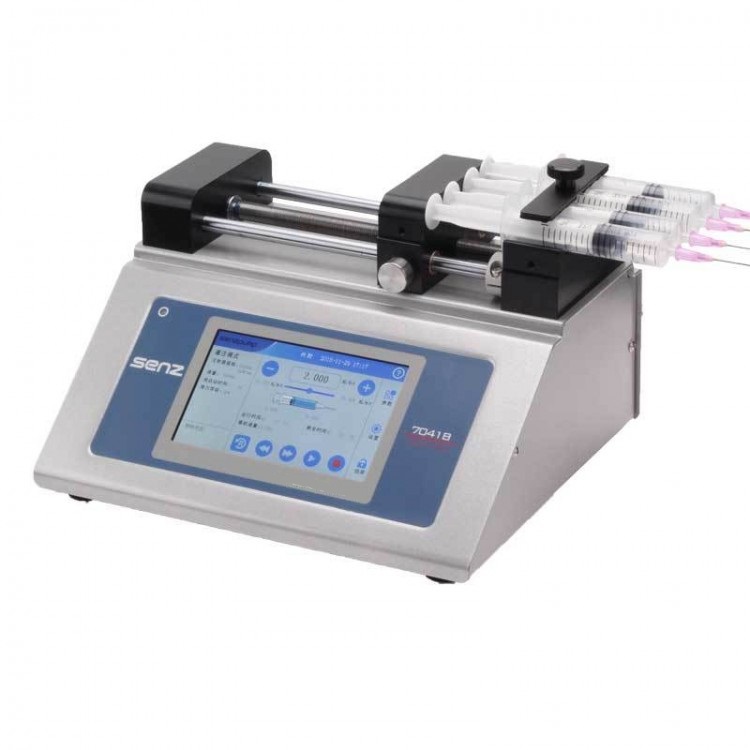

Basic Injection Pump
5-inch high-definition touch LCD screen, aesthetically pleasing interface, easy to operate, real-time display of operating parameters and status.
Model and Specification:
7041B Four-Channel
Category:
Basic Model
ØWork Mode: Casting
ØSyringe Selection: Includes three brand-name syringes, supports custom syringe options.
ØCalibration Function: Supports syringe calibration and stores syringe parameters
ØPower-down Memory: Remembers current operating parameters during power failure and resumes operation upon power-up.
ØOnline Adjustment: Current flow rate can be adjusted during operation
ØAlert Function: Real-time display of current available flow rate (up to/max) and dynamic display of related operating parameters
ØReminding Feature: Target liquid level operation, audio alarm reminder
ØPush Force Setting: Suitable push force can be set according to the syringe specifications.
ØExternal Control: External control signal (5)～24V, to achieve start and stop control

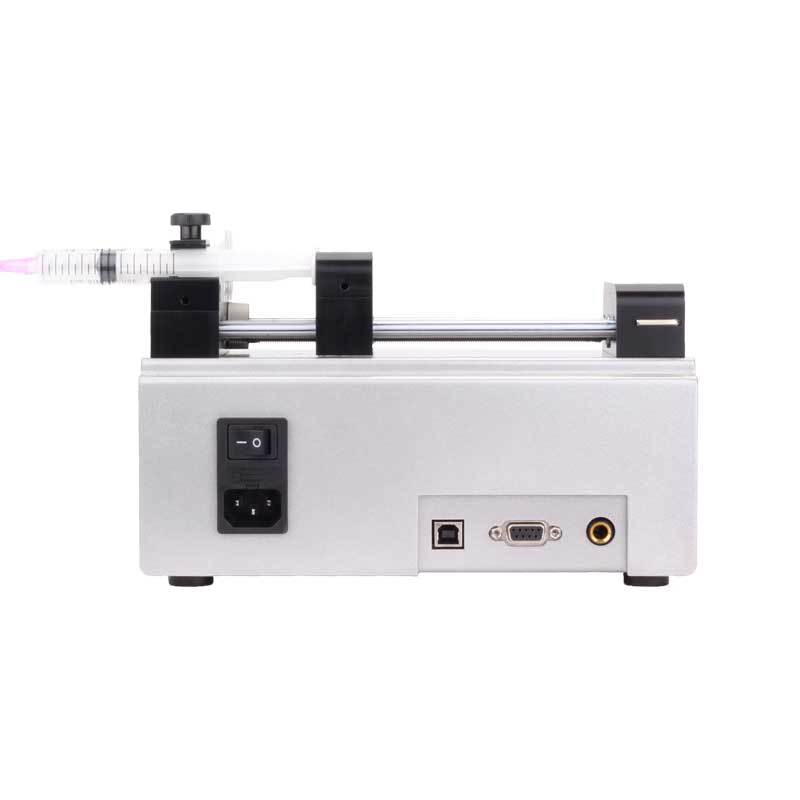

ØRS485/USB: Address adjustable and displayed on screen, baud rate 1200～9600 bps
ØStatus Output: Start/Stop, Direction, Alarm
ØMaximum Travel: 140mm
ØStep Resolution: 0.0625um/μstep
ØLine speed range: 0.08 um/min - 160 mm/min
ØLinear Thrust: 160N
ØApplicable syringe specifications: 0.5ul - 5ml
ØApplicable Power Supply: AC 90-264V, 50-60Hz
ØWork Environment: Temperature: 0-40℃; Humidity: 20%-85% RH; No condensation
ØProtection Rating: IP31
ØDimensions: 210x240x145 mm
Syringe volume | SyringeInside Diameter (mm) | Reference Flow Range (nL/min-mL/min) |
0.5uL | 0.103 | 0.0007～0.0013 |
1uL | 0.146 | 0.0013～0.0027 |
2uL | 0.206 | 0.0027～0.0053 |
5 uL | 0.343 | 0.0074～0.0148 |
10 uL | 0.485 | 0.0148～0.0295 |
25 uL | 0.729 | 0.0334～0.0667 |
50 uL | 1.03 | 0.0666～0.1332 |
100 uL | 1.457 | 0.1333～0.2666 |
250 uL | 2.304 | 0.3334～0.6667 |
500 uL | 3.256 | 0.6658～1.332 |
1mL | 4.73 | 1.4050～2.8100 |
2mL | 8.92 | 4.9970～9.9930 |
2.5mL | 8.92 | 4.9970～9.9930 |
5mL | 12.4 | 9.6560～19.3120 |
