Basic Injection Pump

5-inch high-definition touch LCD screen, aesthetically pleasing interface, easy to operate, displaying real-time running parameters and status.

Specification Model:

7011B Single Channel

Category:

Basic Model

ØOperation Mode: Infiltration

ØSyringe Selection: Includes three in-built brands of syringes, supports custom syringes.

ØCalibration Function: Supports syringe calibration and stores syringe parameters

ØPower-down Memory: Retains current operating parameters during power failure and resumes operation upon power-up.

ØOnline Adjustment: Current flow rate can be adjusted during operation

ØHint Function: Real-time display of current maximum/minimum flow rate, dynamic display of running parameters

ØReminder Feature: Target liquid volume, sound alarm alert

ØPush Force Setting: Suitable push force can be set according to the syringe specifications.

ØExternal Control: External control signals (5~24V), for start and stop control

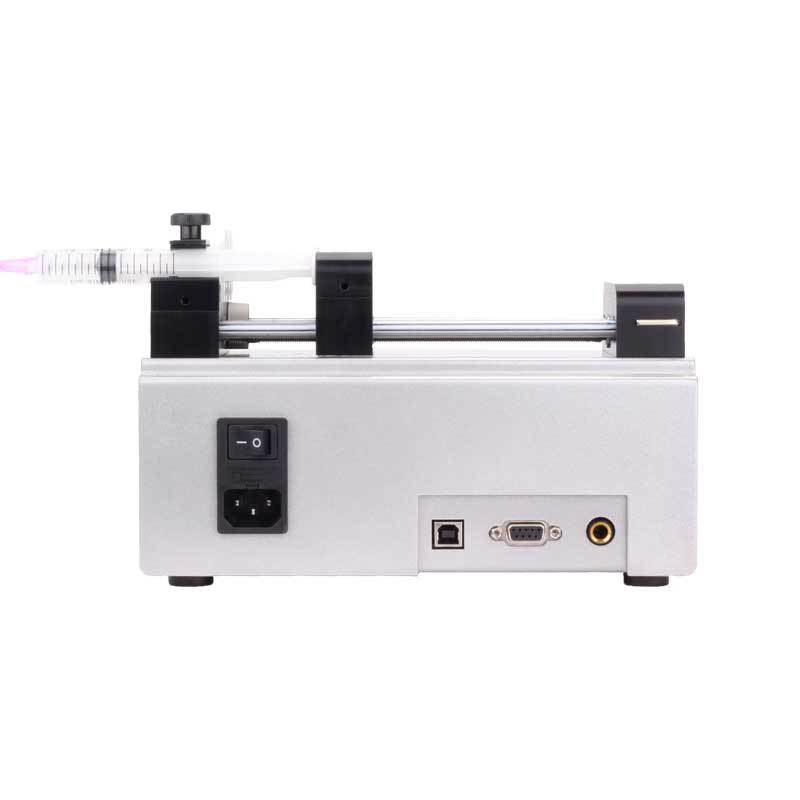

ØRS485/USB: Address adjustable and displayed on screen, baud rate 1200-9600 bps

ØStatus Output: Start/Stop, Direction, Alarm

ØMaximum Stroke: 140mm

ØTravel Resolution: 0.0625 um/μstep, Linear Speed Range: 0.08 um/min - 160 mm/min

ØLinear Thrust: 160N

ØApplicable syringe specifications: 0.5ul - 60ml

ØApplicable Power Supply: AC 90-264V, 50-60Hz

ØWork Environment: Temperature: 0-40℃; Humidity: 20%-85% RH; No condensation

ØProtection Level: IP31

ØDimensions: 210x240x145 mm
