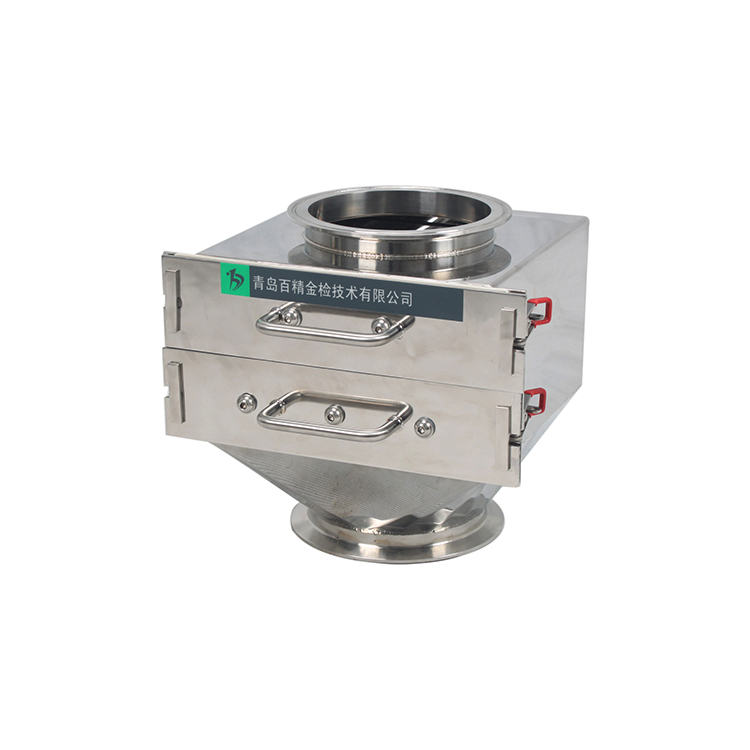

Box type iron separator

Used for separating ferromagnetic metals from free-falling bulk materials

Basic Information

1.Filtering and removing ferromagnetic materials applicable to industries such as food, tablet production, chemicals, and plastics. As large amounts of material pass through high-intensity iron separators, iron contaminants are adsorbed and fixed on the separators, effectively separating ferromagnetic metals.

2.Suitable for dry, free-flowing bulk materials（Powder, tablet, granule)

3.The magnetism of this product is generated by rare earth permanent magnet materials, offering strong and stable magnetic force, without the need for additional energy.

4.Easy installation and online usage, quick connect with clamp or flange connection

Product Features

Specs:Box type iron separator (round or square); Grid type iron separator (round or square)

Remanence Strength: zuiHigh12000Gauss (Easy-to-clean Type: Zui)8000Gaussian

Material opening size:￠100、￠150、￠200、￠250

Magnetic rack layer count:Single, double, or multi-layer options available

Installation Height:Customizable

Shell Material:Stainless Steel304Or316LPolished or brushed surface

Number of Magnetic Rods:Optional

Product Temperature:Highest80℃

Easy-to-clean, with a removable middle magnetic grid for convenient cleaning.

Other Options:Flow baffles or baffles can be added, allowing material to pass through the high magnetic field surface as much as possible. Enhance the iron removal effect for fine particles.
