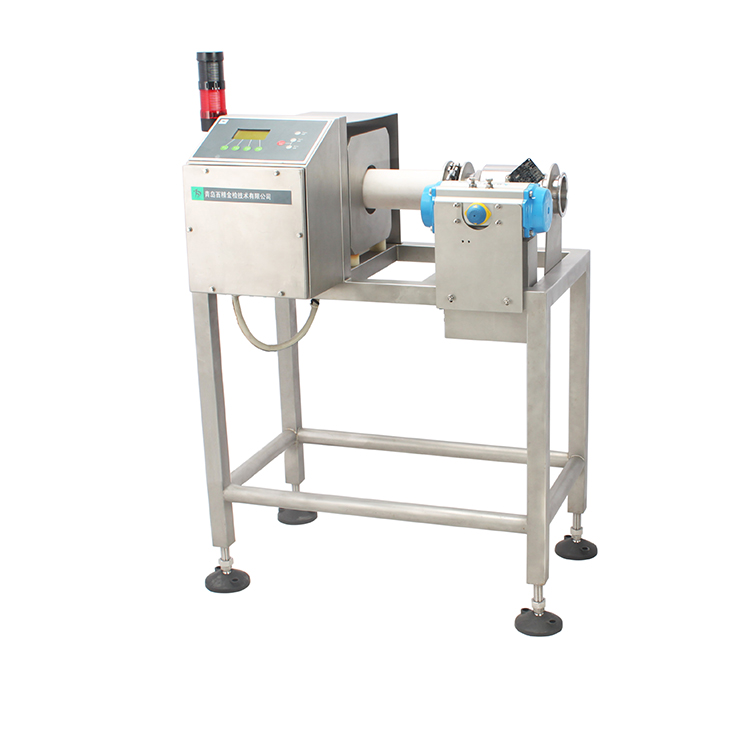

Pipe-style metal detector
Used for detecting metallic foreign objects in the transmission of materials (both liquid and paste-like substances) through separating pipelines
Basic Information
Quality:German technology, with imported control units, features high precision, high sensitivity, and high stability.
Application:Online detects magnetic and non-magnetic metal impurities in pipeline conveyed materials (high-density oils, sauces, bean paste, etc.) and quickly removes them (using pneumatic actuators), reducing material loss without disrupting the normal production process.
On-Site:Installed in enclosed pipeline conveyors. Suitable for industries with high hygiene standards such as tablet manufacturing, food, and chemicals.
Product Advantages, Performance Features
Design:Advanced design, easy installation; simply fix with four screws; or comes with a built-in frame, excellent equipment sealing.
Structure:Special structure effectively minimizes interference from factors such as vibration, noise, and product effects; compact in design, easy to install.
Appearance:Surface finishing options include mirror, brushed, or sandblasted. Metal materials for contact parts are all made of stainless steel.304Manufacturing, non-metallic product channel is food-grade Teflon.
Cleanliness:The control box and detection section are separated; the material channel of the body and the rejection unit support water washing.
System:Equipped with product learning and effect suppression functions, adaptable to testing various products; features200Product storage function with quick parameter changes.1500Transaction (memory exclusion) storage function; built-in exclusion timer, multi-program memory, password-level control.
Safety:When equipment malfunctions, a metal alarm is triggered immediately. The metal detector will emit an alarm after the set time, requiring the insertion of a corresponding metal test ball to perform a performance check, to confirm whether the equipment's detection function is operating normally.
Operation:Direct access, multi-program memory, password tiered control. Performance verification process.
Accuracy:Adjustable detection accuracy, material in operation.100%Inspection.
Level:Protection Grade:IP65AvailableHACCPCertification requirements, overall complianceGMPAndCERequirements.
Power:Complete Unit0.035kw/h。
File:ThreeQ，SOP，FATAll material compliance certificates.
Operating Principle:Raw materials areHorizontal conveyingMethod has been tested by the machine② The probe detects metal, disrupting the coil balance, triggering the system immediately. The separating plate opens simultaneously, removing the raw material containing metal particles ④ through the waste outlet.⑤Exclude
Technical Specifications
Quality Assurance
AcceptChallenging tests.
EnhanceProduct quality.
OptimizeProduction mode, enhance efficiency.
BenefitsLeave substandard products in the workshop to avoid complaints and enhance the company's image.
PurchaseEconomic.
Warranty：12Month(s).
EnhanceAdd:10%Fees, Warranty5Year.
After-sales: Domestic48Resolve within hours, support replacement within warranty period, international response12Parts dispatched within hours.
