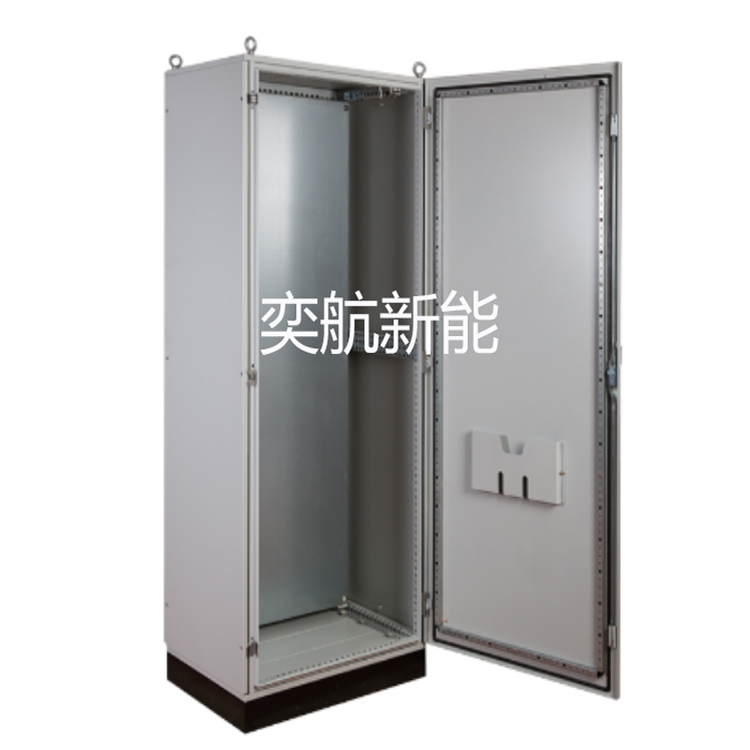

● The bottom edge of the cabinet door is 25mm from the ground, and it is equipped with a rectangular frame fixed on the door panel, which has circular holes every 25mm. This not only enhances the door's strength but also allows for the installation of wire bundles, electrical components, etc. The door and the top cover are sealed with a PU foam plastic gasket, paint can be applied without concern.

● The mounting plate can be adjusted forward and backward in 25mm increments to regulate depth.

● All nine-d折 profiles come with circular and square holes every 25mm (for use with mounting beams), making internal installation and instrument fixation extremely convenient and quick.

●The top, side, rear, and bottom panels are all secured with screws, making disassembly and assembly easy, and the installation inside the cabinet even more convenient.

●The concealed hinges do not protrude into the frame or the box, making the door easy to install and replace. The door can open up to 130°.

● Top and bottom wiring holes are equipped with partitioned covers, and the front and side doors can be easily removed and installed, facilitating work.

● The three baseboard in-line holes have replaceable lids that can move freely, facilitating cable insertion and hole-based in-line entry.

● The mounting plate can be adjusted in increments of 25mm, with a 2.5mm thick surface plated in zinc or orange-red. The sides feature a 23mm C-shaped bend, ensuring the mounting plate is sturdy and easy to handle.
