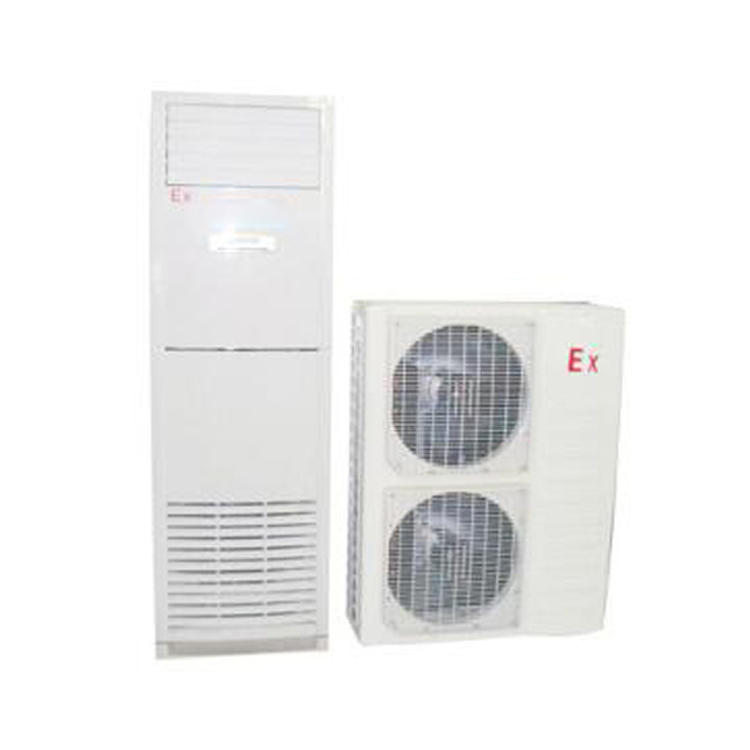

Explosion-proof Cabinet Air Conditioners - 2HP Explosion-proof Air Conditioners, 3HP Explosion-proof Air Conditioners, 5HP Explosion-proof Air Conditioners - Explosion-proof Wall-Mounted Air Conditioners, Explosion-proof Air Conditioning Units (Cabinet Type), Explosion-proof Air Conditioning Cabinets | Suitable Environment for Explosion-proof Cabinet Air Conditioners:
Suitable for explosive gas environments in Zones 1 and 2.
Suitable for IIA, IIB, IIC explosion-proof gas environments;
◆ Suited for environments with temperature categories T1 to T4;
Suitable for explosive and hazardous environments in oil extraction and refining, chemicals, battery storage, paint rooms, and chemical facilities.
Applicable for spaces with limited usage area;
Explosion-proof cabinet-type air conditioner product features:
◆Auto defrosting, energy-saving, and silent operation. Equipped with powerful functions for superior cooling and heating performance, ultra-quiet operation, and comfortable tranquility. Durable hydrophilic aluminum foil with a special coating design prevents the formation of Al2O3·H2O oxide powder on the foil surface, extending the machine's lifespan and reducing environmental pollution. It also solves the issue of "water bridges" on the fins, which increases wind resistance, improving the energy efficiency ratio of the air conditioner and delaying the decline in energy efficiency ratio over time.
It differs from explosion-proof cabinet air conditioners in that it does not occupy floor space, allowing for the maximum release of usable space. Suitable for areas of 10~17 square meters, please refer to the following chart for specific dimensions.
Blast-proof air conditioners are available in two types according to performance: single cooling and cooling & heating. They can be categorized into three structural forms: window-type, split wall-mounted, and split cabinet-type.
◆ Explosion-proof air conditioners are designed with explosion-proof features based on branded air conditioners, adhering to the requirements of the GB3836 series standards. They undergo special processing techniques and manufacturing methods for explosion-proof treatment.
Blast-proof air conditioning pipeline connections and installations are similar to standard air conditioning. Electrical connections must follow the installation procedures for explosion-proof electrical equipment. First, the power source should be introduced into the explosion-proof control box, and then separately into the indoor and outdoor units from the control box.
The explosion-proof control box is equipped with a power switch.
◆Special explosion-proof treatments can be applied to on-site air conditioning equipment according to customer requirements. For example: explosion-proof treatments for large-scale chilled water units, refrigeration units, central air conditioning systems, and air conditioning equipment with special installation forms. We will design and manufacture the solution, submit it for customer review, and if necessary, can apply for an explosion-proof testing center to conduct on-site product explosion-proof performance testing based on customer requirements.
All explosion-proof air conditioners are supplied with a complete set of product technical documents and installation/user manuals. Users must strictly follow the instructions in the manual for installation and use.
◆ Steel pipes or cable wiring.
★ The entire unit employs ultra-low electrical technology to isolate intrinsic safety circuits, manufactured through special processes and explosion-proof treatments. The design and manufacturing of the product strictly adhere to relevant standards.
GB3836.1-2000 "General Requirements for Electrical Equipment for Explosive Gas Atmospheres – Part 1"
GB3836.2-2000 Electrical Equipment for Explosive Gas Atmospheres - Part 2: Intrinsically Safe "d" Type
GB3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety 'e' Type"
GB3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres – Part 4: Intrinsic Safety 'i'"
GB3836.9-2006, Part 9 of "Electrical Equipment for Explosive Gas Atmospheres": "M" Type Encapsulation
The product surface is equipped with surface temperature limitation protection technology, static electricity prevention technology, and various safety protection measures.
★Wide voltage design, suitable for unstable power sources in the field, voltage: 220V/50Hz, 220V/60Hz, 110V/50Hz;
★ Explosion-proof Mark: Exdibmb‖BT4, Exdibmb‖CT4.
Explosion-proof cabinet-type air conditioner product features:
Single-Door Refrigerator Unit
Auto-set Operation Mode, Multiple Protection, Timer Function, Auto Defrost, Fault Self-Diagnosis: Cold and Warm Refrigerator Units
Automatic operation mode setting, low-temperature start, fault self-diagnosis, defrosting operation, multiple protection, timer function.
