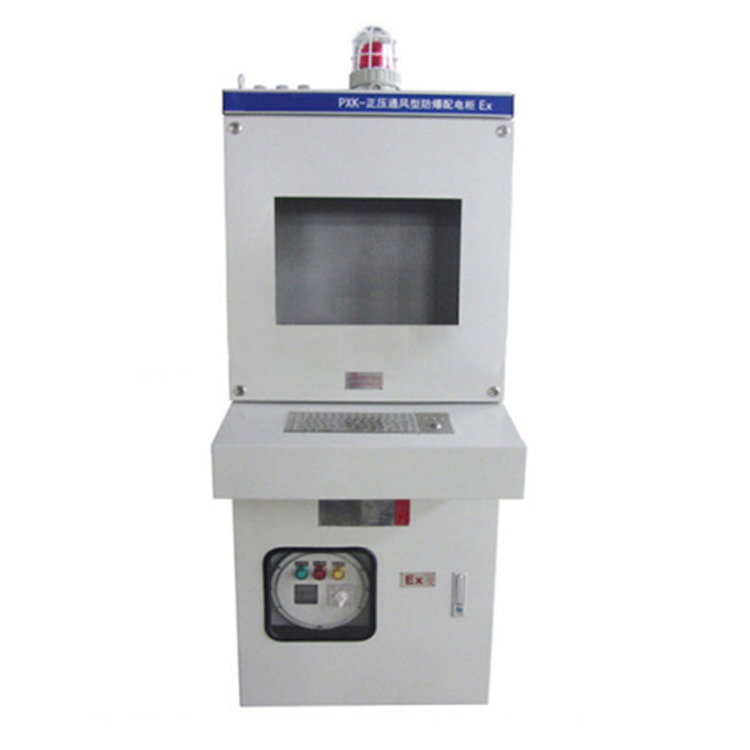

Chimney-style positive pressure cabinets, explosion-proof positive pressure cabinets, positive pressure control cabinets, explosion-proof distribution cabinets. Materials can include stainless steel, aluminum alloy, Q235 steel plate. Capable of manufacturing explosion-proof lighting and distribution boxes, explosion-proof power distribution boxes, explosion-proof positive pressure cabinets, waterproof, dustproof, and corrosion-resistant distribution boxes, and various customized enclosures.

For example: Explosion-proof distribution box with main circuit 63A, 3P with RCD, loop 16A, 2P, 10 loops. Detailed parameters, technical specifications, or drawings are available upon customization. For more information, please call to inquire.

One. Explosion-proof pressure cabinets, explosion-proof control cabinets, explosion-proof distribution cabinets, suitable for piano stand type positive pressure cabinets

1.1 & 2.1 Hazardous Gas Locations

2. T1-T6 Group II A, II B, II C explosive gas or vapor atmospheres

3. Indoor and outdoor (IP54, IP65 to be specified upon order)

II. Technical Parameters of Explosion-Proof Pressure Cabinet, Piano-Style Pressure Cabinet, Pressure Type Control Cabinet, and Explosion-Proof Distribution Cabinet:

1. Execution Standards: GB 3836.1, GB 3836.2, GB 3836.3, GB 12476.1, IEC 60079

2. Explosion-proof marking: ExdeⅡBT6, DIP A20 TA, T6

3. Rated Voltage: AC 220V/380V

4. Rated Current of Main Circuit: 20A to 250A

5. Branch numbers: 2, 4, 6, 8, 10, 12

6. Branch Circuit Rated Current: 1A, 3A, 5A, 10A, 15A, 20A, 25A, 32A, 40A, 50A, 60A

7. Protection Level: IP54 (ⅡB), IP55 (DIP), IP65 (with rainproof cover)

8. Corrosion Resistance Grade: WF1

9. Entry Specifications: G1/2 - G3

10. Applicable Cable Outer Diameter: Φ6～Φ55mm

11. Inlet Orientation: Bottom In-Bottom Out, Bottom In-Top Out, Top In-Top Out, or Top In-Bottom Out

3. Piano-Style Pressure Vessel Explosion-Proof Pressure Vessel Pressure Type Control Cabinet Explosion-Proof Power Distribution Cabinet Performance Parameters

1. The explosion-proof control box housing is made of ZL102 aluminum alloy die-casting or steel plate welding, with a surface treated by high-pressure electrostatic spraying, featuring stainless steel exposed fasteners for an aesthetically pleasing appearance.

2. The explosion-proof control box is expertly designed, safe to use, and comes with a one-year free warranty from our company.

3. The case drawings can be provided by your company or created on behalf of our company.

4. Explosion-proof lighting power distribution boxes are of a composite, modular design, allowing each circuit to be freely assembled as required. Generally, switch boxes are equipped with explosion-proof structures, while busbar boxes and outgoing cable boxes utilize increased safety structures.

5. Internal components can be equipped with high-interrupting capacity circuit breakers or molded-case circuit breakers as per customer requirements. Examples include DZ47, C65, CM1, and so on.

6. Custom-made to customer's specifications, including options like adding a Rongyong protector, ammeter, voltmeter, etc., and available with a metal handle equipped with a padlock.

7. Suitable for lighting and power lines, featuring circuit breaking, overload, voltage drop protection, and automatic short-circuit disconnection. Pipe or cable wiring is applicable.

8. Meets the requirements of GB3836-2000 and IEC60079 standards.

Four: Explosion-proof positive pressure cabinets - Piano Bench Style, Explosion-proof Control Cabinets, Positive Pressure Type, Explosion-proof Distribution Cabinets - Precautions:

4.1 Check the technical data on the label to ensure it matches the usage before installing and using the product.

4.2 Cut off the power supply before installation and maintenance.

4.3 The incoming and outgoing cables must pass through a rubber seal, and they should be securely fastened with a washer and a tightening nut to ensure a seal and prevent the cables from becoming loose.

4.4 In the event of corrosion, cracking, deformation, sticking, or hardness change exceeding 20% beyond the factory setting during use, the seal ring should be promptly purchased and replaced from the manufacturer to ensure reliable explosion-proof performance.

4.5. During maintenance and disassembly, ensure that the explosion-proof surface is not bumped, scratched, or corroded, and apply 204-1 anti-rust oil regularly.

4.6 The distribution box should be checked regularly during use to ensure its proper operation.

4.7 Non-maintenance personnel are strictly prohibited from opening the cover for repair or inspection.

Additional Notes

1. This product is composite, featuring an explosion-proof structure for the switch box, and an increased safety structure for the busbar and outgoing cable boxes. It employs a modular design, allowing for flexible selection and combination of various circuits.

2. Equipped with high-interrupting capacity mini circuit breakers, featuring overload and short-circuit protection functions.

3. This product features a new, optimized design and operational mechanism, offering a compact and rational structure, strong versatility, flexible operation, and comfortable handling.

4. All fasteners are made of corrosion-resistant 304 stainless steel.

5. Steel pipes or cable wiring are both acceptable.

6. Custom-made upon customer's request.

Chamber Type Pressure Cabinet Explosion-Proof Pressure Cabinet Pressure Type Control Cabinet Explosion-Proof Distribution Box Order Instructions

◆Please specify the number of branches for the distribution box, the corresponding current for each branch, and the pole number of the circuit breaker when placing an order. If leakage protection function is required, please indicate.

Please specify the current rating and number of poles for the main switch, as well as the direction of the incoming and outgoing lines, the specifications, and corresponding quantities if required.
