Explosive gas mixture hazardous areas: Zones 1 and 2.
2. Explosive gas mixtures: II A, II B, II C.
3. Temperature Categories: T1 to T6.
4. Explosion-proof Mark: ExdⅡBT6, *ExdeⅡCT6.
Note: Please specify "II-C" grade if required.

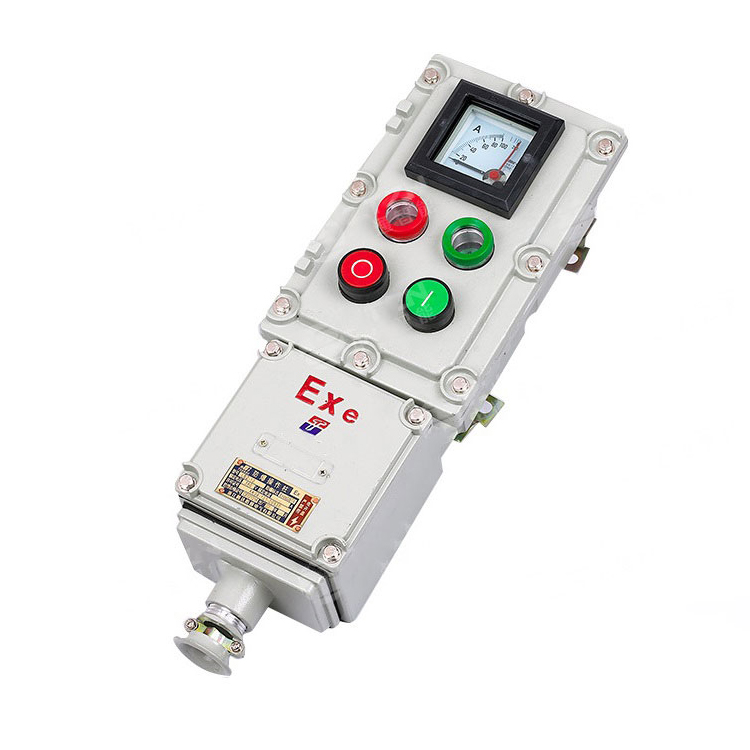

Explosion-proof operation column product features:
1. Aluminum alloy casting shell, cover panel pressure casting with plastic coating surface.
2. The explosion-proof operating column is equipped with a conversion switch, an ammeter (other instruments can be installed upon customer's request), indicator lights, etc.
3. Automatic reset changeover switches replace buttons, single hole replaces multiple holes.
4. The explosion-proof operation column switch offers over 30 functions that can be freely selected by the user.
5. Fewer holes, more functions, excellent explosion-proof reliability, and high safety factor.
6. Explosion-proof operation columns can be custom-made to specification.
7. The ammeter range is determined by the user.
8. Steel pipes or cables; wiring is available.
Explosion-proof operation column technical specifications
Execution Standards: GB3836.1-2000, GB3836.2-2000, GB3836.3-2000, GB12476.1-20001
2. Explosion-Proof Mark: ExedⅡCT6 DIP A20 TA, T6
3. Protection Level: IP65
4. Corrosion Resistance Grade: WF1
5. Application Categories: AC-3, AC-4
6. Rated Voltage: 220V/380V (Please specify if special requirements apply)
Rated Current: 10A
8. Thread Size at Entry Port: G1" (Special requirements, if any, please specify)
9. Cable Outer Diameter: Φ12mm to Φ17mm
Explosion-proof Control Column Price/Model Spec Sheet
BZC81-A2G Two-Button Wall Mount
BZC81-A2L two-button vertical
BZC81-A4; Explosion-proof operation column with four buttons
BZC81-A4G, BZC81-A4L, BZC81-A6 Explosion-proof Operating Columns
BZC81-A6G, BZC81-A6L, BZC81-A8G - 8 Button Explosion-Proof Operating Columns
BZC81-A8L, BZC81-A8, BZC81-A10 Ten-Button Explosion-Proof Control Column
BZC81-A10G, BZC81-A10, BZC81-A12 12-button explosion-proof operation column
BZC81-A12G BZC81-A12L
BZC81-K1; Explosion-proof switch operating column
BZC81-K1G, BZC81-K1L, BZC81-K2 Double Switch Explosion-Proof Operating Column
BZC81-KG, BZC81-K2L, BZC81-A2D2 Explosion-proof control column with two buttons and two lights
BZC81-A2D2G, BZC81-A2D2L, BZC81-A4D4 Four Button Four Light Explosion-Proof Operating Columns
BZC81-A4D4G, BZC81-A4D4L, BZC81-A2B1 Explosion-proof Operating Columns with Two Buttons and One Gauge
BZC81-A2B1G BZC81-A2B1L
BZC81-A2K1 explosion-proof operating column with two buttons and one switch
BZC81-A2K1G, BZC81-A2K1L, BZC81-A2D2K1 - Two Button, Two Light, One Switch Explosion-Proof Operating Column
BZC81-A2D2K1G BZC81-A2D2K1L
BZC81-A2B1K1 explosion-proof operation column with two buttons, one indicator, and one switch
BZC81-A2B1K1G BZC81-A2B1K1L
BZC81-A2B1K1 explosion-proof operation column with two buttons, one gauge, and one switch
BZC81-A2B1K1 BZC81-A2B1K1
BZC81-A2B1D2G Explosion-proof operating column with two buttons, one gauge, and two indicator lights
BZC81-A2B1D2G BZC81-A2B1D2G
BZC81-D2K1 Explosion-proof Operating Column with One Switch and Two Lamps
BZC81-D2K1G BZC81-D2K1L
BZC81-B1K1;; One-table, one-switch explosion-proof operation column
BZC81-B1K1G, BZC81-B1K1L, BZC81-B1D2K1 - One Table, Two Lamps, One Switch Explosion-proof Operating Column
BZC81-B1D2K1G, BZC81-, BZC81-B2K2; two-lamp, two-switch explosion-proof operating column
BZC81-B2K2G BZC81-B2K2L
BZC81-A4D2;; Four-button, two-lamp explosion-proof operating column
BZC81-A4D2G BZC81-A4D2L BZC81-A3D3; Three-button, three-lamp explosion-proof control column
BZC81-A3D3G BZC81-A3D3L
BZC81-A2D1;; Two-button, one-light explosion-proof operation column
BZC81-A2D1G BZC81-A2D1L
BZC81-B1K1;; One-table, one-switch explosion-proof operating column
BZC81-B1K1G BZC81-B1K1L
BZC81-B1D2K1 explosion-proof operation column with one switch, two lights, and one indicator
BZC81-B1D2K1G BZC81-B1D2K1L
BZC81-A3D3K1 Three-button, three-meter, one-switch Explosion-proof Operating Column
BZC81-A3D3K1G, BZC81-A3D3K1L Three-button, three-meter, one-switch Vertical Type
BZC81-A2D2K1 explosion-proof operating column with two buttons, two lights, and one switch
BZC81-A2D2K1G, BZC81-A2D2K1L: Vertical Mount, Dual Button, Dual Light, Single Switch
BZC81-A6D3;; Six-button three-lamp explosion-proof operating column
BZC81-A6D3G, BZC81-A6D3L; 6-button, 3-lamp vertical unit
BZC81-A6B2D4 Six-button, dual gauge, four-lamp explosion-proof control column
BZC81-A6B2D4G six-button, two-meter, four-lamp wall-mounted
BZC81-A6B2D4L six-button, two-meter, four-lamp vertical model
BZC81-A6B1D3; Explosion-proof operation column with six buttons, one gauge, and three lights
BZC81-A6B1D3G six-button, one-meter, three-lamp hanging type
BZC81-A6B1D3L six-button one-display three-lamp vertical
BZC81-A6B2D3 Explosion-proof Operation Column with Six Buttons, Two Meters, and Three Lamps
BZC81-A6B2D3G 6-button, 2-meter, 3-lamp hanging type
BZC81-A6B2D3L Six-button, Two-meter, Three-lamp Vertical Type
BZC81-A6B3D3 Six-button Three-meter Three-lamp Explosion-proof Operating Column
Explosion-proof operation column application range:
Explosive gas mixture hazard areas: Zone 1, Zone 2.
2. Explosive Gas Mixtures: II A, II B, II C.
3. Temperature Groups: T1-T6.
4. Explosion-proof Markings: ExdⅡBT6, *ExdeⅡCT6.
Note: Please specify "II-C" grade if required.
