Brief Introduction:

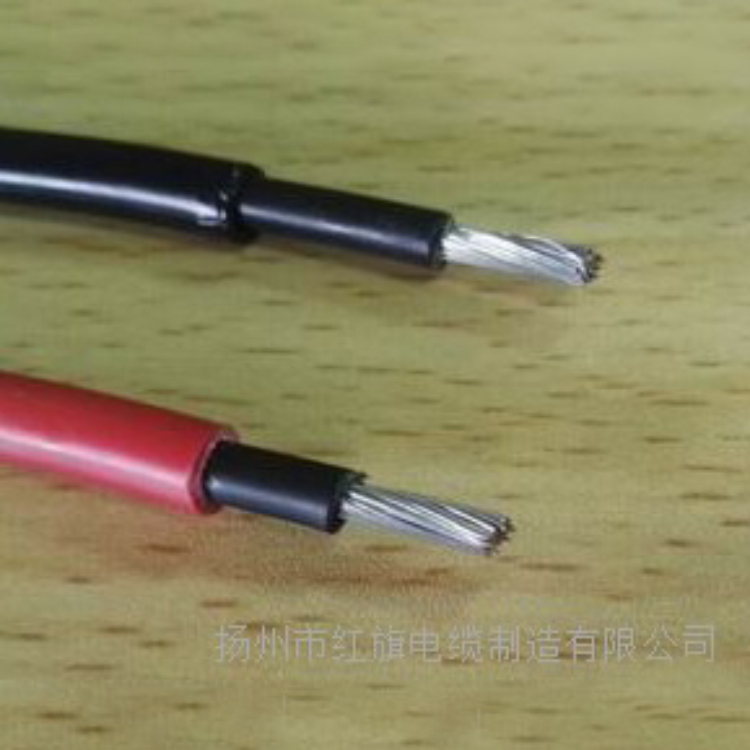

Solar PV system connection cables, suitable for deserts with large diurnal temperature differences, coastal areas with salt fog humidity, and high-altitude regions with strong radiation. PV Cable, PV Wire, PV Cable, PV Wire

Detailed Description:

Product Specifications: 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm², 16 mm²

Product Application: Designed for solar photovoltaic system connections, suitable for deserts with significant day-night temperature differences, coastal areas with salt-fog humidity, and high-altitude regions with strong radiation.

Product Features: Operating Temperature -40℃ to 90℃

Bend Radius ≤ 5D

Short-circuit Temperature: The conductor temperature does not exceed 250℃ during a cable short-circuit (*duration not exceeding 5 seconds).

Weather-resistant, conforms to UV (UVISO 4892-2A)

Ozone-Resistant, Compliant with IEC60811-2-1

Flame Retardant Properties - Single Vertical Burning (Compliant with IEC60332-1)

Excellent resistance to acids, alkalis, and humidity.
