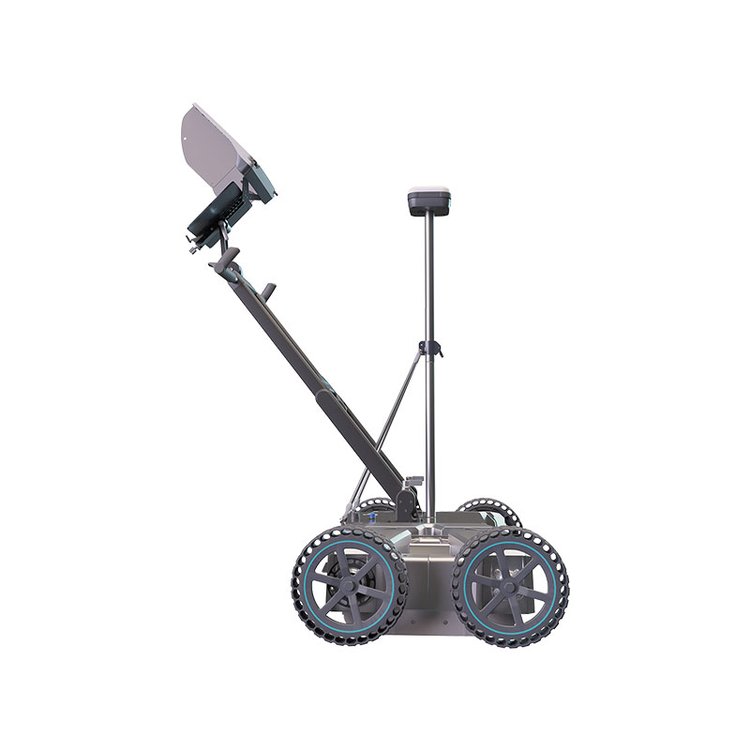

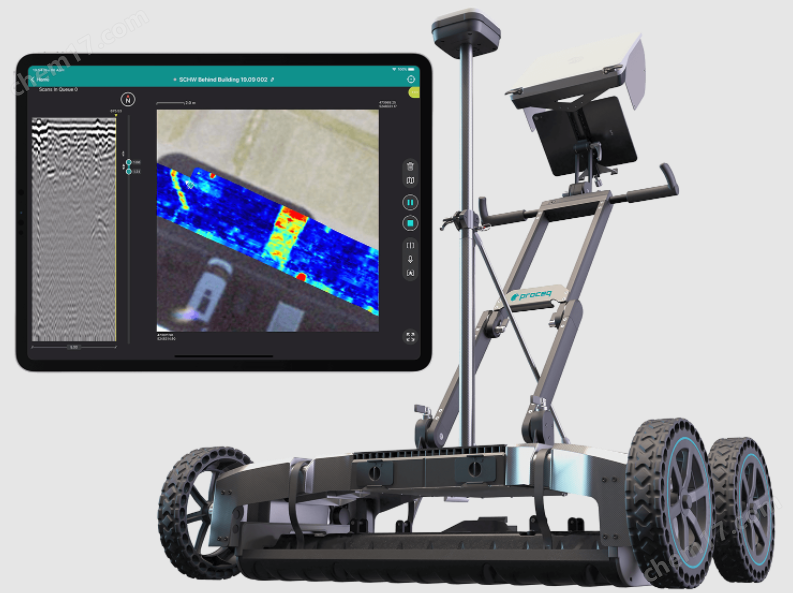

GS9000 Real-time on-site processing3DVisualized GAO Multi-Channel Ground Penetrating Radar

Shenzhen Pengjin Technology Co., Ltd.  Welcome to inquire18320930028 Miss Lai

GS9000 Technical SpecificationsRadar Technology: Stepped Frequency Ground-Penetrating Radar, Modulation Frequency Range:500 – 3,000 MHz² | 30 – 750 MHz³ Channel Count: 35 (VV) + 15 (HH)² | 11 (VV) Cubic Channel Spacing: 2.5 cm (VV), 5.5 cm (HH)² | 7.5 cm³ Scan Width: 0.85 m² | 0.82 cm³ Scan Rate: 27,500 Scans/Sec² | 22,000 Scans/Sec³ Time Window: 35 ns² | 100 ns³ Space Interval: Up to 100 Scans/Meter Dimensions: 722 x 1178 x 443 mm Weight: 45 kg Ingress Protection (IP)/Sealing: IP65 Power Consumption: Ready-Made Mobile Power Source Autonomous: 6 Hours | Hot-Swappable Operating Temperature: -10° to 50°C | 14° to 122°F Operating Humidity < 95% RH, Non-Cooled Condensation Connections: WiFi, USB-A, USB-C, Lemo GNSS Satellite: Multi-Band GPS + GloNASS + Galileo + BeiDou GNSS Real-Time SSR Correction; Enhanced/Compatible with NRTK GNSS Real-Time 3D Accuracy: Typ. 1 - 5 cm | 0.5 - 2 inches GNSS Initialization Time: Typ. 5 - 30 seconds
