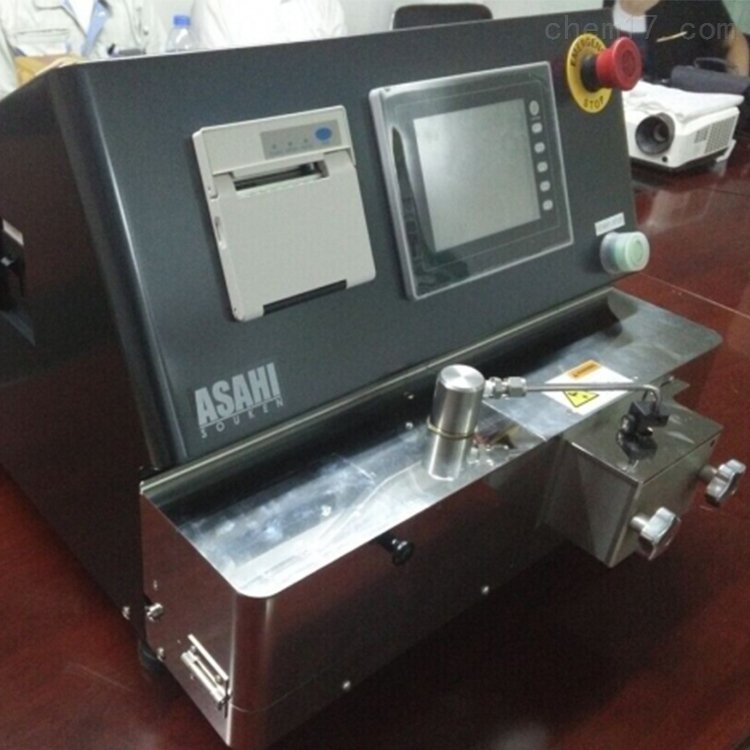

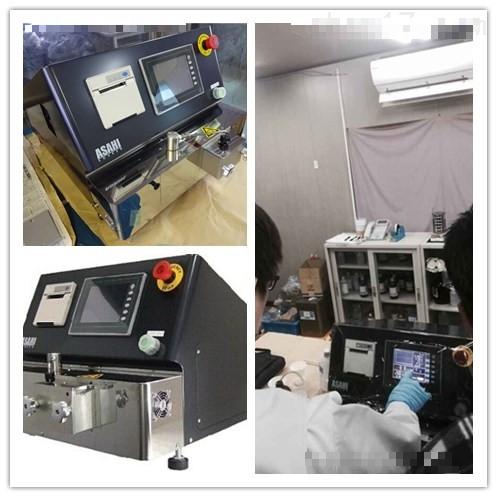

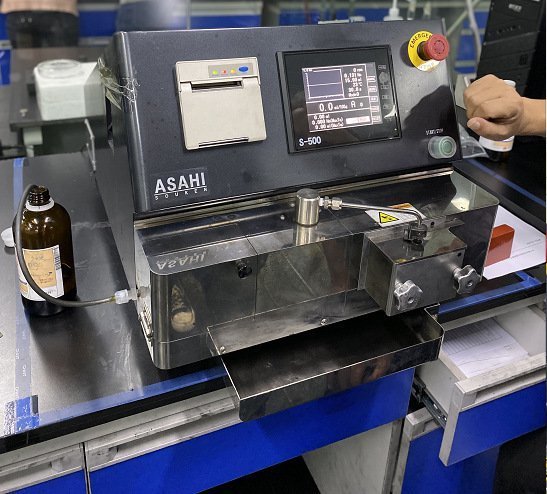

High-nickel cathode materialS500Oil Absorption Tester
Shenzhen Pengjin Technology Co., Ltd. Welcome to inquire18320930028 Miss Lai
Product Features
Mechanical Measurement: Mechanical measurement ensures consistency in data, eliminating variations caused by different workers.
Mixed room auxiliary temperature control feature: The auxiliary temperature control in the mixed room ensures more stable data measurement
More compact: Measures area, integrates printer, pump unit, and electrical equipment into a single, compact product function.
Suitable for different types of powder measurement: Absorbed dose measurement, not only for carbon black measurement, but also for low-torque powders (such as pigments, battery materials, and alumina).
Various liquids are also applicable: In addition to carbon blackDBP (dibutyl phthalate), also used in various liquid measurements such as DOP and linseed oil.
Built-in printer for easy data management: Measurement data can be printed out from the built-in printer, enabling real-time verification of the test results. It also features external communication capabilities, allowing data to be transmitted to a computer..
Touchscreen Operation: Equipped with a touchscreen panel display for intuitive operation.
Design Safety: The equipment features an emergency stop switch on the front, and the interlock function of the mixing chamber can be activated regardless of whether the lid is open or closed.
Remote fuel supply supported: Fuel supply from a remote location: Utilize"Buffer Tank Unit (Optional) can also be refueled from a remote location."
Product Specifications
Dimensions:510x650x415mm
Weight: Approximately50kg
Rotational Speed: Default125 rpm (adjustable range: 25~150 rpm)
ZUIHigh Load Capacity:10Nm (Special specifications support 20Nm)
Sample Weight: Default20g (Range: 1.0~200.0g)
Oil Pump: High Precision Flow Meters (Error:±0.5%）
Drop Speed: Default4.0ml/min
Printed Image: Torque Variation Line Graph
Output:RS-232C (data transmission to computer); 7P connector: buffer tank connection (optional)
Power Supply:AC220V±5%；50/60HZ
Equipment Support:Windows7、Windows8
Application Field
Carbon black or other powders (pigments, battery materials, alumina, silicon, calcium carbonate, etc.); liquids (such as)DBP, DOP, NMP, Linseed Oil, etc.
High-nickel cathode materialS500 Oil Absorption Test Meter In Stock
High-nickel cathode materialsS500Oil Absorption Test Meter
