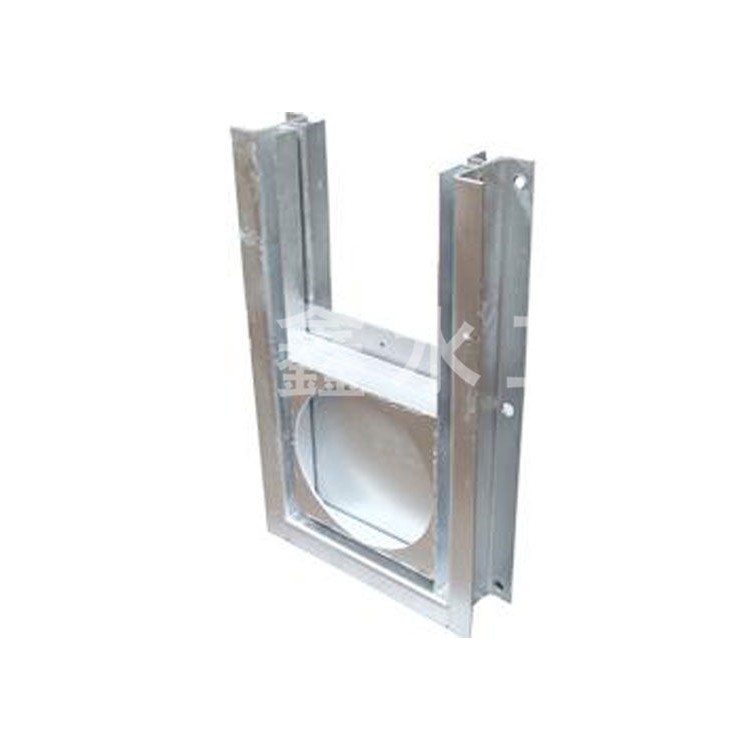

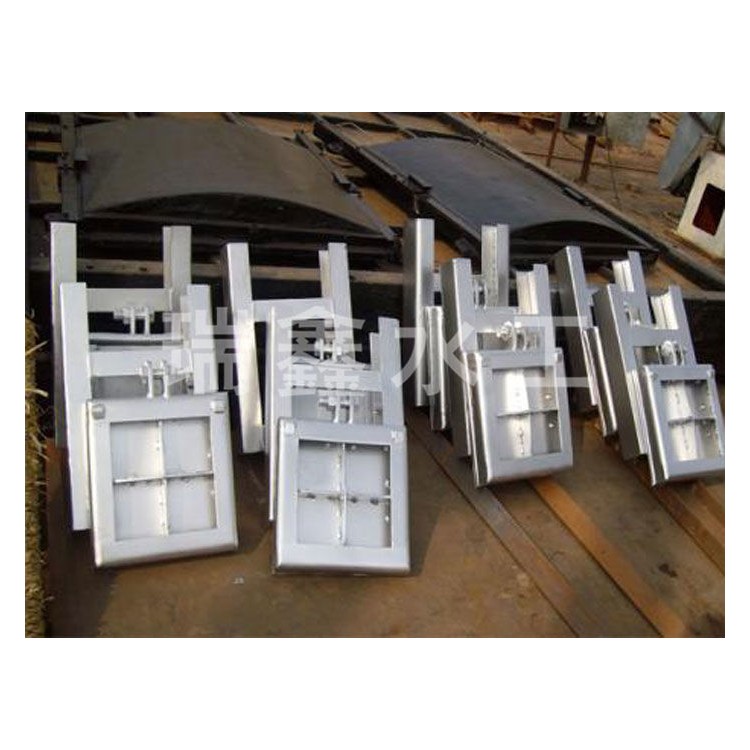

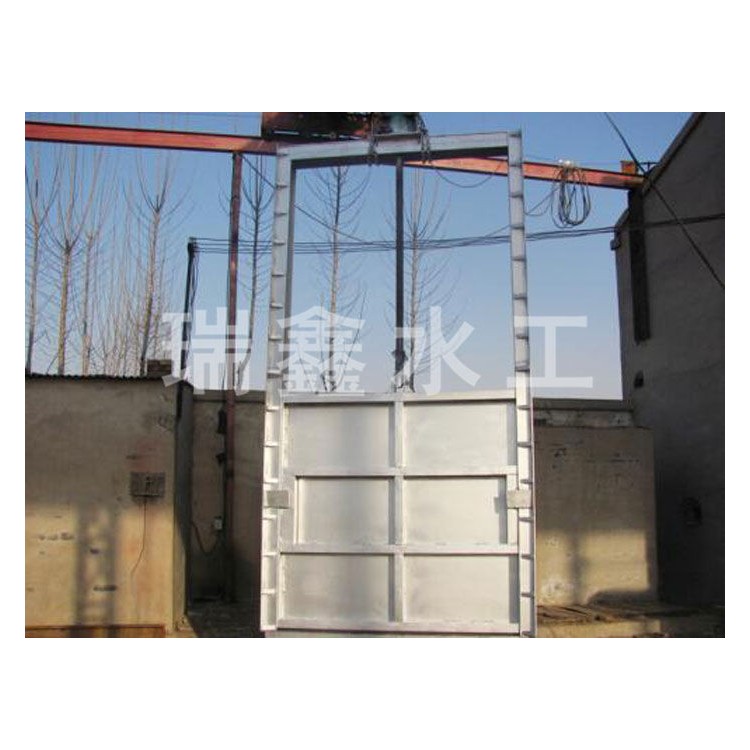

Key Features of Stainless Steel Channel Gate:

One, the water passage section of the gate is equal in width to the channel; extra-wide models can be made with double suspension points for opening and closing.

Two, strong adaptability to channel depth.

Three, rubber sealing, excellent water-stop performance.

Four, made of stainless steel, excellent corrosion resistance.

Five, manual operation for opening and closing is lightweight, making it more convenient for use in remote, unpowered areas.

Key Technical Data of Stainless Steel Channel Gate:

One, Maximum working water pressure: 0.06 Mpa

Second, working medium pH: 6-9 PH

Three, Maximum Leakage Volume (Seal Length): ≤1.25 m.min

Four, Door Opener Maximum Force: ≤150N
