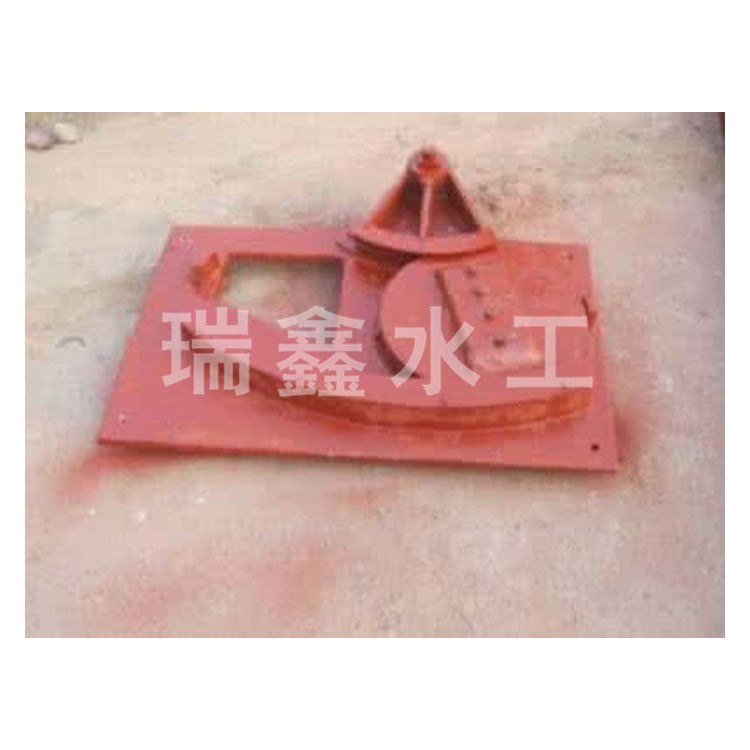

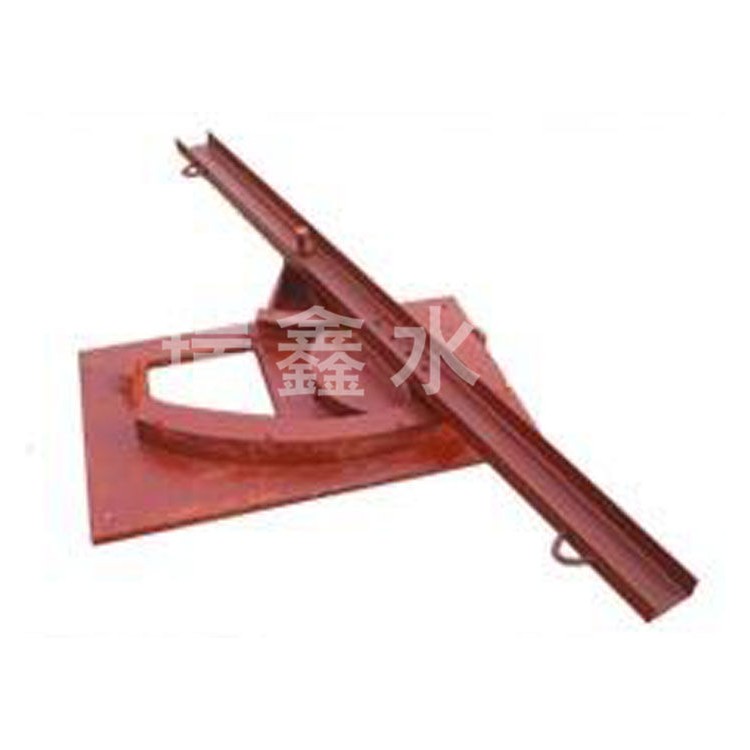

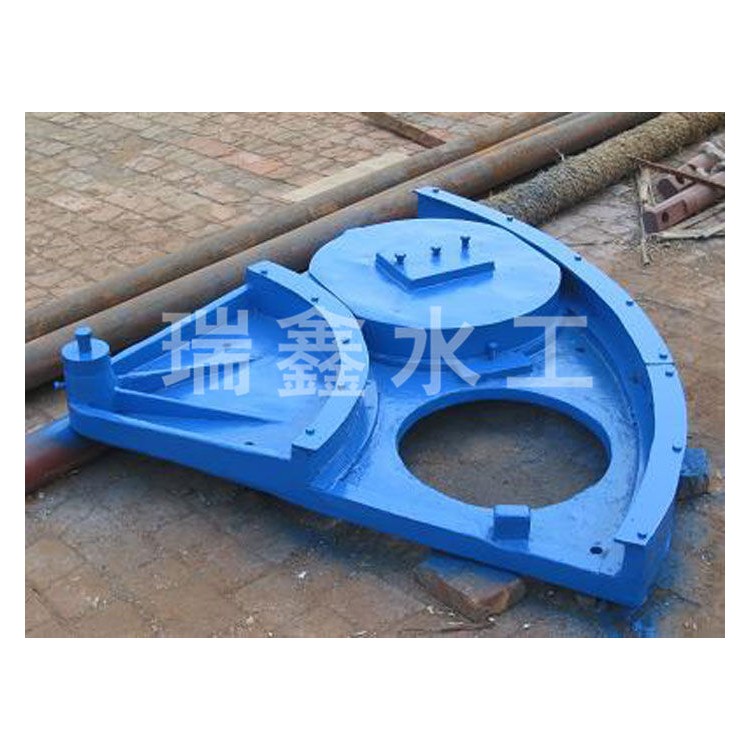

Turntable gate, widely used in reservoirs, primarily used to release water into holes beneath the reservoir embankment. Operated by a winch-type hoist mechanism, the gate is opened and closed by pulling the cable, achieving purposes such as irrigation and flood discharge.

This product series utilizes the "Bidirectional Swing Gate Standard Design Series" from the Survey and Design Institute of Hebei Provincial Water Conservancy Department. The water head classification is 5 meters, suitable for closing water in and out of tunnels, culverts, and channels. It features an 8-inch water intake aperture from Φ200 to Φ1200, with 24 specifications, and the lifting mechanism can be either a hand-cranked winch or a hand-cranked and electrically operated hoist. Our factory stocks matching hand-cranked winches and hand-cranked/electric hoists. Specific specifications can be found in the technical performance table. If a suitable water head classification is not available, a higher design water head classification can be chosen instead.

Features of the directional gate:

One: Lightweight: Approximately 1/3 the weight of a standard gate.

Two: Corrosion-resistant: Resistant to acids, alkalis, and most corrosive chemicals, as well as sewage and seawater.

Three, Good Sealing: Utilizes rubber soft sealing for excellent sealing effect

Torque is low: due to the light weight of the gate plate and the small frictional resistance between the gate plate and the track plate, the operating torque is low.

Five: Long lifespan: The anti-locking structure between the gate and guide rail minimizes wear on the sealing surface.

Six, Easy Maintenance: In case of leakage after years of use, simply lift the gate and replace the rubber sealing ring on the door frame, saving time and effort with low repair costs.

Section 7: Manual Operation - Utilizes screw-type opening and closing operation, offering ease, lightness, and reliability.

Section 8: Electric Operation - Electric control device with precise positioning, easy operation, and easy to achieve automatic and remote control.
