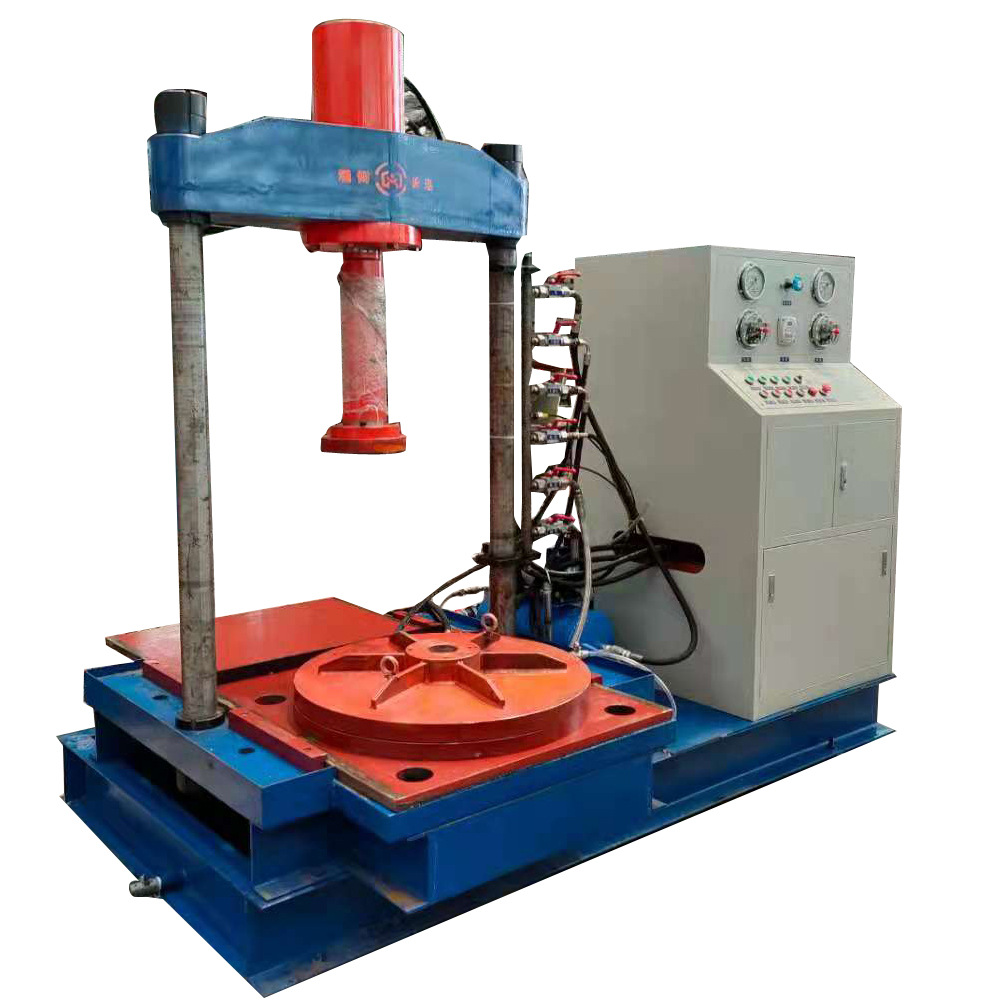

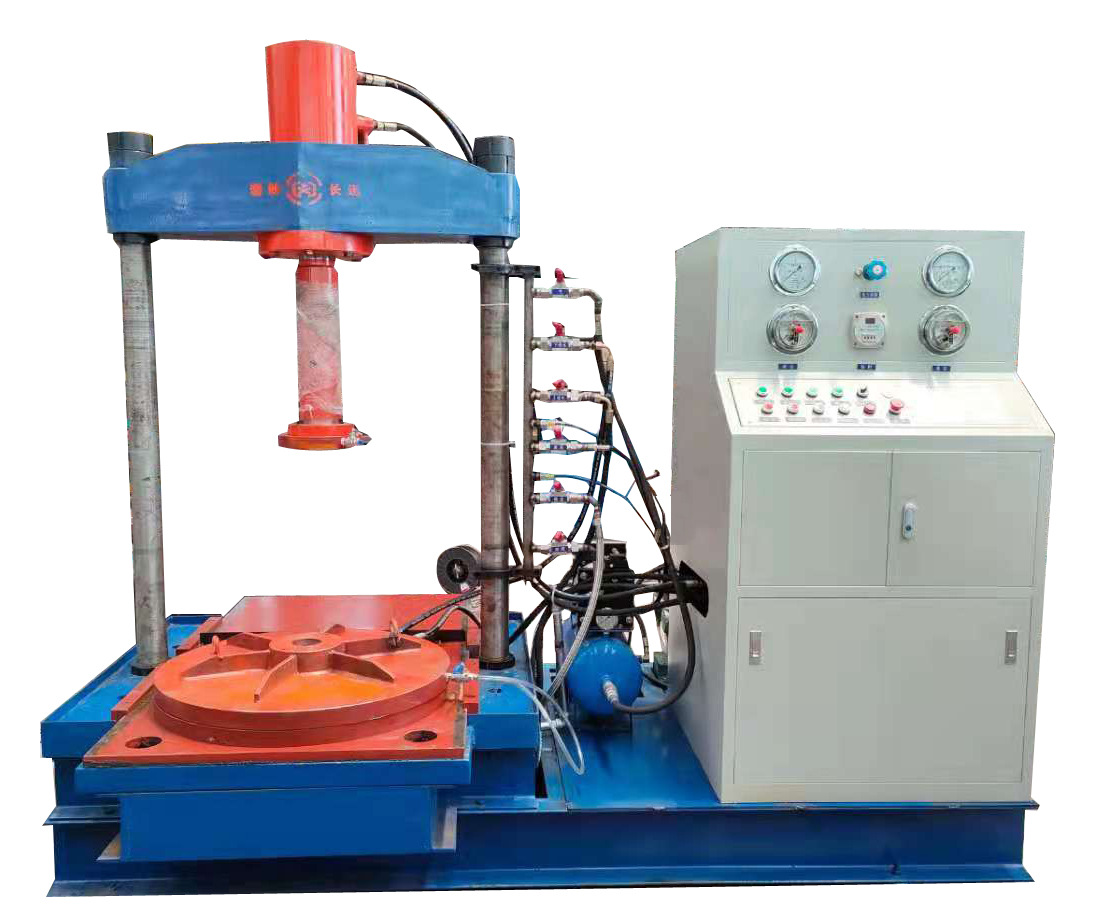

Basic Parameters

Test Range: DN50-600

2. Pressure Range: 0-16 MPa

3. Test Valve Structure Length: 250-1300mm

4. Test Flange Diameter: 165-900

5. Poles inner spacing: 965

6. Blind Flange - Large Spacing: 1300

7. Top Tight Cylinder: ø200, *Max Clamping Force 90 tons, Stroke 350

8. Hydraulic Station: 3-phase voltage 380V, 5.5KW; 12L/MIN plunger-type variable pump; the oil tank is filled with 60L of 46# hydraulic oil. It features a remote pressure regulating valve on the panel for easy operation.

9. High-pressure pump: 4DSY2.5MPa-25MPa electric pressure testing pump.

10. Low-pressure pump: 220V voltage water supply pump

11. Gas Boost Pump: High-pressure output 0-4MPA, drive gas source 0.2-0.8MPA.

12. Main Unit Dimensions: Length, Width, Height 2500*1300*2532

11. Total Weight: 1.9T
