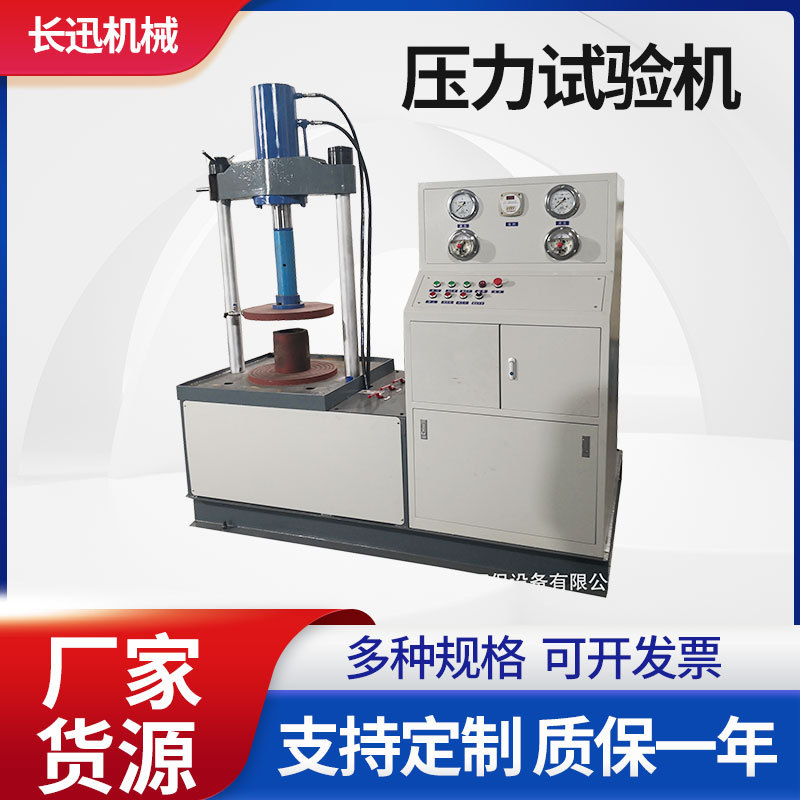

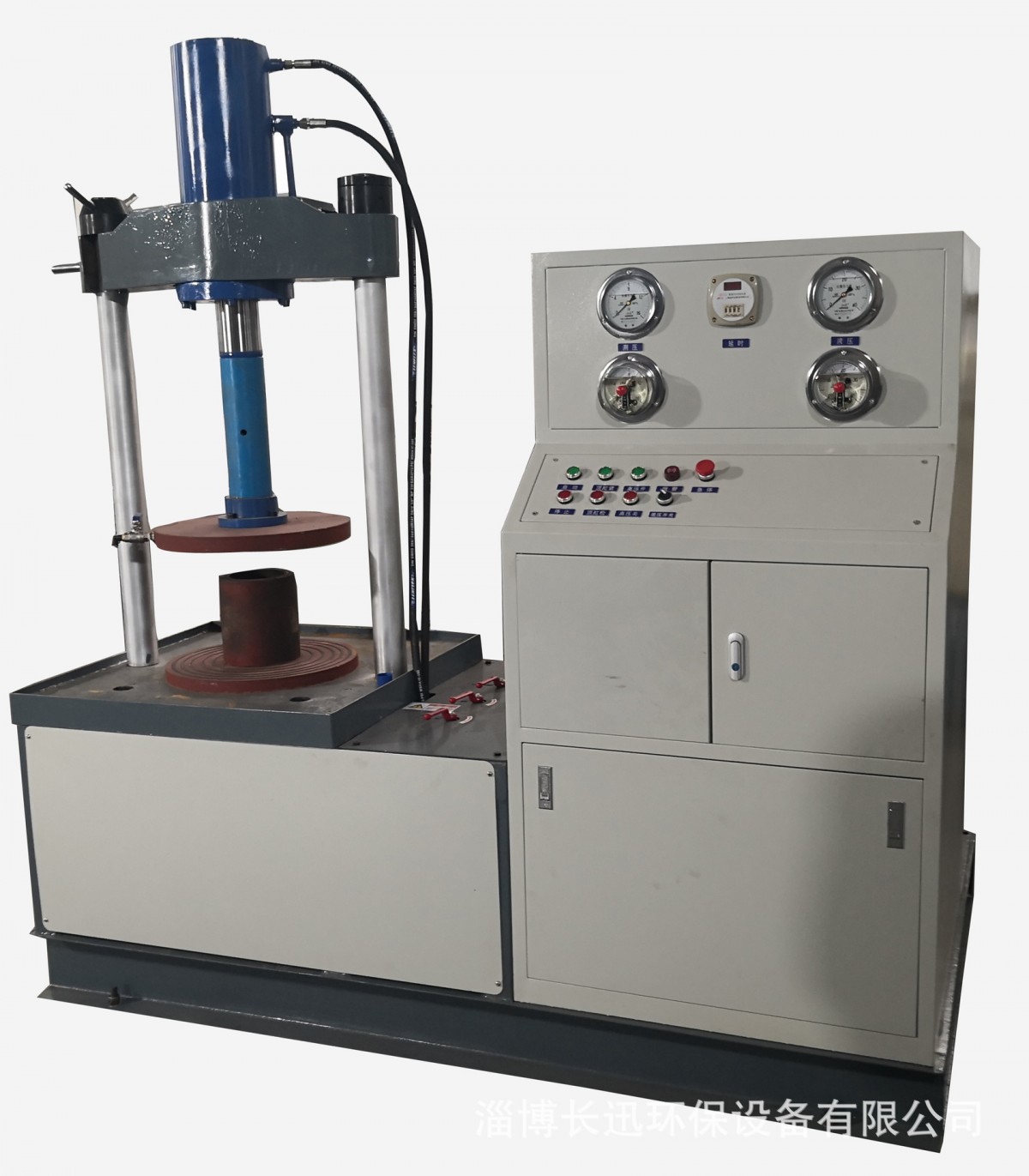

The SYJ-300A Vertical Valve Pressure Tester is a pressure testing equipment independently researched and manufactured by our company, widely used for the strength and sealing tests of butterfly valves, gate valves, ball valves, pipe fittings, etc. It operates simply, conveniently, quickly, and safely.
Basic Parameters
Test Range: DN50-300
2. Pressure Range: 0-15 MPa
3. Test Valve Structure Length: 200-700mm
4. Test Flange Diameter: 165-485
5. Poles inner spacing: 605
6. Blind Flange with Large Spacing: 700
7. Top Tight Cylinder: ø180, max pressure 80 tons, stroke 350
8. Main Unit Dimensions: Length, Width, Height - 2000*1200*2200
Boost Pump Specifications: Length, width, height 800*330*500. 380V, 1.5KW, 16MPA.

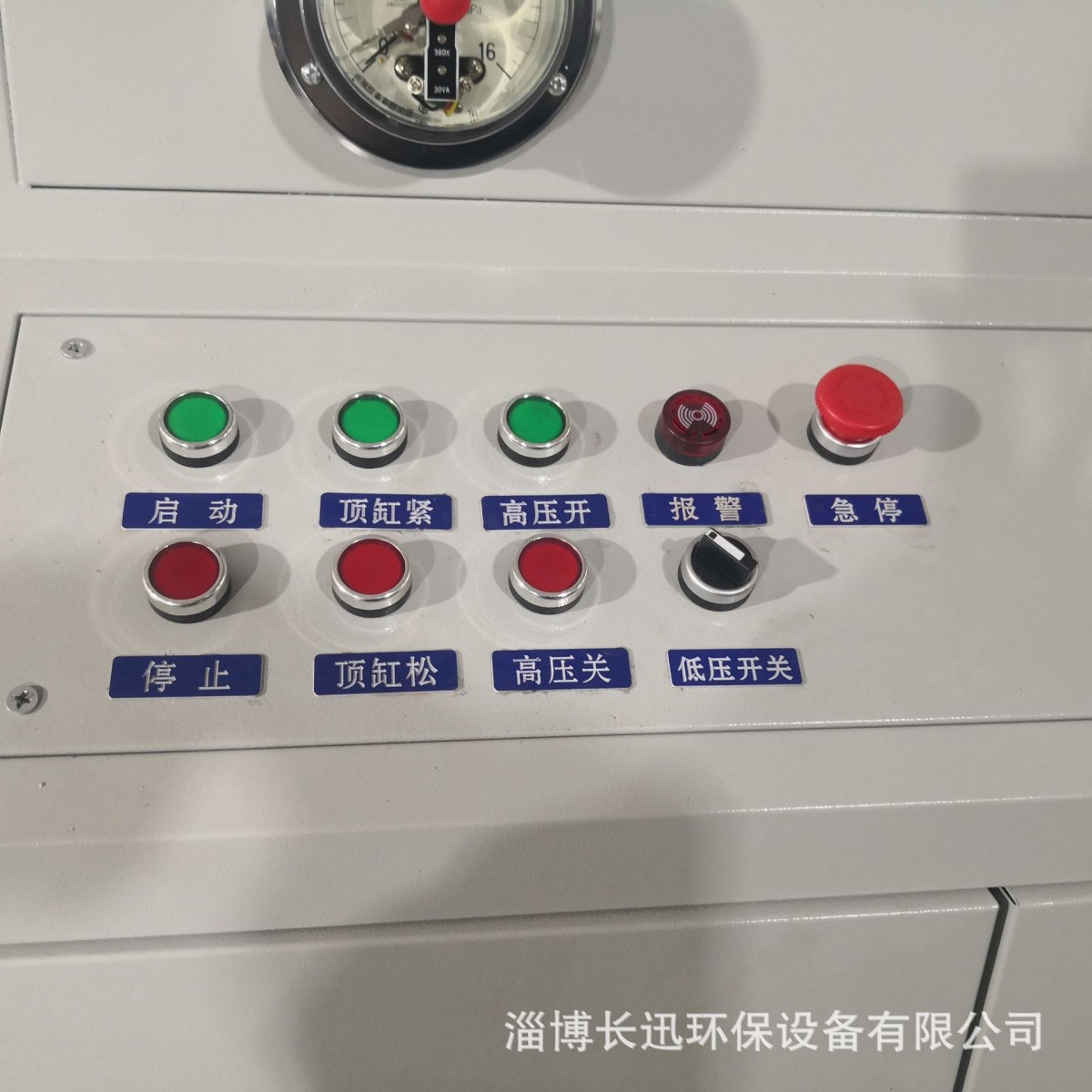

Hydraulic station specifications: 380V, 3KW. 1-way solenoid valve control, 1-way solenoid unload valve. 46# wear-resistant hydraulic oil, 60 liters.
Low-pressure pump: 220V, 125W self-priming.
