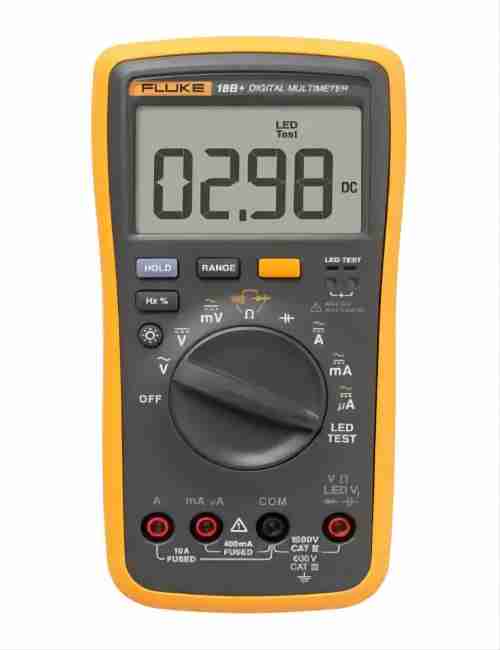

Fluke F18B Digital Multimeter Technical Specifications
Vac range 0.1mV to 1000V, Accuracy ±(1.0% + 3 digits), Frequency response 40Hz to 500Hz
Vdc range: 0.1mV to 1000V; Accuracy: ±(0.5% + 3 digits)
Ohms range 0.1Ω to 40MΩ Accuracy ±(0.5% + 2 digits)
Aac range: 0.1µA to 10A; Accuracy: ±(1.5% + 3 digits); Frequency response: 40Hz to 200Hz
ADC Range 0.1µA to 10A Accuracy ±(1.5% + 3 digits)
Capacity Range: 0.01nF to 100µF; Accuracy: ±(2.0% + 5 digits)
LED Lighting - Voltage Range: 2-6V DC
Measure LED forward voltage Vf (only probe mode)
Range: 2-6V DC, Resolution: 0.01V, Accuracy: 10%
Auxiliary Function
Manual and Automatic Ranges
Diode On-Off Buzzer
Auto shut-off
CAT class CAT III 600V, CAT II 1000V
Mechanical and General Parameters
Dimensions: 180mm high × 89mm wide × 51.5mm long (with leather case)
Weight: 425g
2 AA batteries
2-Year Warranty
The packaging box includes one 18B form, two AA batteries, a user manual, and a set of TL19B test leads.
