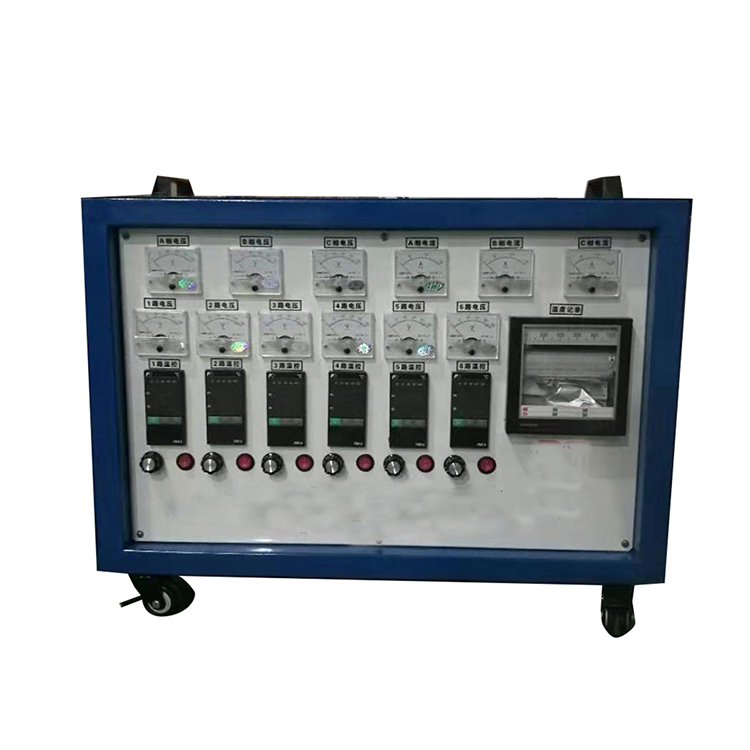

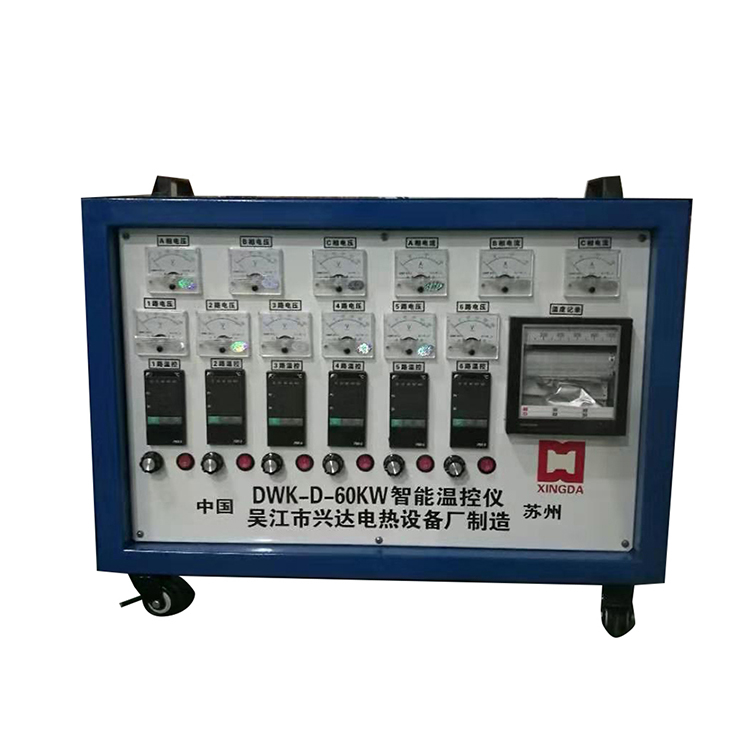

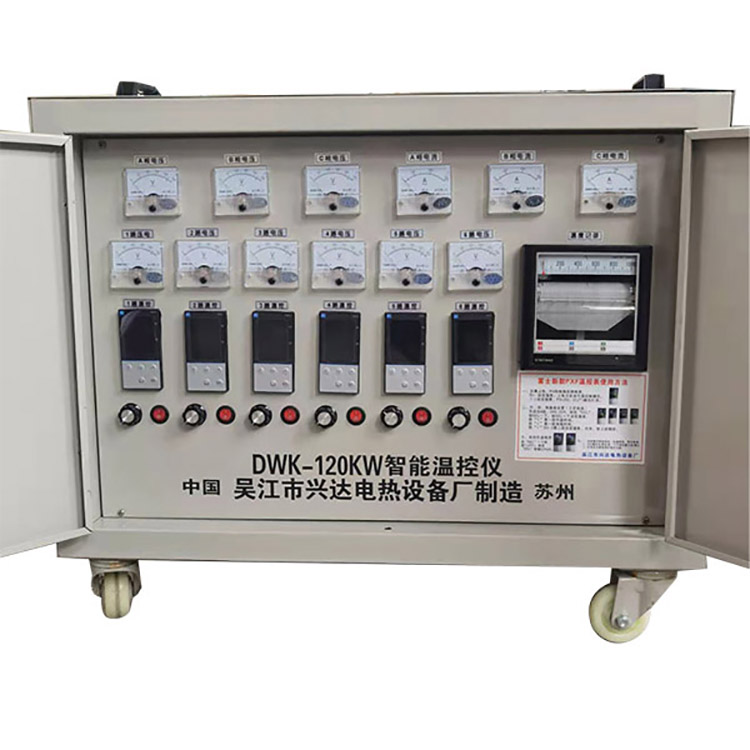

Heat Treatment Control Box

Overview:

A variety of electric heaters require a temperature control box for preheating, dehydrogenation, and heat treatment to achieve multiple changes such as heating, maintaining constant temperature, and cooling. The LWK type temperature control box uses an electronic regulator as the temperature control instrument, with the main circuit employing silicon-controlled rectifier output for zero-crossing triggering with adjustable duty cycle, making operation simple and temperature control accurate. The output voltage is 220V (O-220V) with adjustable voltage.

Performance:

Input Voltage: 380VAC

2. Total Output Power: 90KW/135A

3. 9 output channels, each channel outputs 10KW/45A

4. 3 temperature control points, 6 temperature sensing points, independent temperature control with separate setting of process curves

5. Temperature Control: 0-1050℃

Each channel is equipped with a leakage protection switch, enhancing safety performance.

7. The panel features an operational indicator light to show the on/off status of the heater, for easy and intuitive operation.

Features:

The temperature controller utilizes an electronic digital gauge as the temperature control element, making it convenient and simple.

2. The main circuit uses silicon-controlled rectifier output, noise-free and pollution-free

3. Over-temperature and under-temperature silicon可控硅 flexible on/off

Output voltage: 220V AC; also available with adjustable AC voltage from 0-220V

5. The silicon-controlled rectifier output has a small volume, the control equipment is in cabinet style, and the weight is 35 kg.

6. Suitable for large-scale power installations, maintenance, preheating dehydrogenation and annealing treatments.
