Provide a one-stop full configuration plan (detailed requirements needed from the customer).
OneStructural form

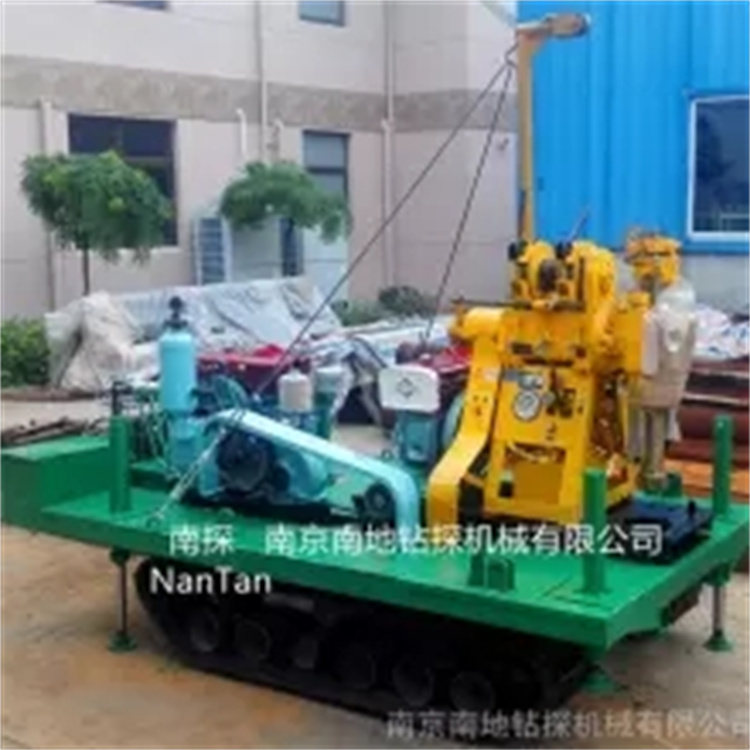

XY-1A-L-01-BTypeTire DrillMachineIsTranslateRubberTreaded undercarriagePowerDiesel EngineOr motor)、XY-1ATypeDrilling RigDrilling MachinePlatform, hydraulic support leg system.Four-leg drilling tower、BW160AOrBW200Type mud pumpWaitCommonly assembled on a single mounting frame. Drilling machineOnePower（Diesel EngineOr motor), rubberTrack undercarriage、Mud PumpOnePower（Diesel EngineOr motor)DriveMutuallyDisturbance，Avoid wear and tear on construction due to dynamic load changes.。
The model typePossessesStrong climbing ability, drilling and walking capabilities, and high carrying capacity.Drilling services suitable for engineering geological surveys, geological core drilling, physical surveys, small grouting holes, blast holes, well holes, and air conditioning holes, applicable to highways, railways, hydropower, bridges, dam foundations, etc.
This drilling rig is one of the rare ideal equipment that caters to market demands.Operations can be conducted in harsh environments such as beaches, riverbanks, sandy areas, paddy fields, etc., while still being able to traverse icy roads.
TwoKey Features
1The drilling rig is equipped with rubber track walking mechanism.Driven by differential box gears to the crawler transmission, excellent climbing ability.Enable the entire machineLoading and unloadingRelocationExtremelyConvenient, as the machine features rubber tracks that cause no ground damage, it brings ease of operation in urban construction.
2、GreatlyEase the labor intensity for workersPlease provide the Chinese content you would like translated into American English.。
3Pile driving towerDrilling winchOperational, convenient, and reliable.
4、Drilling rig, pump, and tower in one, easy and quick to move, can be self-loaded and unloaded onto vehicles.。All items, such as drill pipes and accessories, can be loaded onto the crawler base for transportation in one trip during the move.
ThreeRubber Track UndercarriageDrilling TowerTechnologySpecs
Theoretical SpeedForwardFile（Km/h）0.9、2.0、2.7、3.2、8.3、13，Reverse Gear（Km/h） 0.9、2.1，RatedLoad CapacityT）4.0
RatedGradeability(Degree)On the uphill35, belowSlope35，Please provide the Chinese content to be translated.Ground Clearance（mm）〉200，TrackModel No.mm）350*90*48
Track Pitch（mm）90，TrackAxleCenter Distance（mm）1630，Track-driven wheel wheelbasemm）1100
Track ground length（mm）1300，Ground Pressure（kPa）<35，Drilling Tower Height:6m
FourTransmission System
The transmission is via a gear-driven transfer case.Directional steering with single-side braking differential, clutch typeFor two combined friction platesTransmissionImproved transmission usedDual lever control。
Five、WholeMachine outer dimensions(Long*Wide*High (no Chinese content)3000*1700*2200(mm)(Size varies according to pump.
Six、WholeMachine weight2600(kg)
Drilling Machine Introduction（Introduction）：
The XY-1A drill rig is a high-speed, lightweight drilling machine equipped with hydraulic feed.
I. Applicable Scope
1. This drilling machine is suitable forCivil and industrial constructionEngineering geological surveys for rail, hydroelectric, transportation, bridge, dam foundation, and other construction projectsGeological core drilling, physical surveying; small grouting holesGeothermal holesBlasting holeConcrete testing holes of various typesDrill intoSmall water well drilling.
2.Wide speed range with high-speed gear, allowing for drilling with diamond, hard alloy, and steel shot bits, etc., depending on the geological conditions.
3. The rated drilling depths are 100m and 180m for final holes of 75mm and 46mm respectively. The allowable bore diameter is 150mm.
II. Drilling Rig Features:
Equipped with an oil-pressure feed mechanism, it enhances drilling efficiency and reduces the labor intensity of workers.
2. The drilling machine is equipped with a ball-nut chuck and features a hexagonal active drill rod, allowing for continuous rod replacement without shutting down the machine.
3. Equipped with a bottom hole pressure gauge for pressure indication, making it easy to monitor the situation inside the bore.
4. Handle concentration for easy operation.
5. The drilling machine features a compact structure, small size, and light weight, making it easy to disassemble and transport. It is suitable for use in both plains and mountainous areas.
III. Technical Specifications: | |
Drilling Machine Drilling Depth：100，180m Hole diameter：150 mm Drill rod diameter：42 mm Finished Hole Diameter：75，46 mm Drilling Angle：90-75° | |
Drill Rig Outline Dimensions（L×B×H) XY-1A：1433×697×1274mm | |
Drill rig weight (excluding power unit) XY-1A：420 Kg | |
2. Reverser Spindle Speed (Five Gears)：1010,790,470,295,140 r/min Vertical travel stroke：450 mm Axial unloaded upward movement speed：3 m/s Vertical spindle no-load downward speed：4 m/s Axial feed force：15 KN Vertical shaft lifting force：25 KN | |
3. Hoist Lifting Capacity (Single Rope)：11 KN Roller Speed：121,76,36 r/min Roller circumference linear speed (two layers)：1.05, 0.66, 0.31 m/s Roller diameter：140 mm Wire rope diameter：9.3 mm Wire Rope Capacity：35 m Brake Drum Diameter：252 mm Belt Width：50 mm | |
4. Oil Pump Model：YBC-12/80 Rated Pressure：8 Mpa Traffic：8 ml/r Rated Speed；1500 r/min | |
5.Electric Motor Model：Y160M-4 Rated Power：11 KW Rated Speed：1460 r/min | |
6Diesel Engine Model：S1100 Rated Power：12.1KW Rated Speed：2200 r/min |
Note:.This drilling rig comes standard with a diesel engine.,Also available with an electric motor,To be specified at the time of customer's order.
User Selection:To enhance the applicability of this machine and cater to the diverse needs of different users, we have introduced enhancements.Remote relocation featureXY-1A（YJ），Increased pump'sXY-1A-4 ModelDrilling rigs, pumps, and diesel engines mounted on a single base.，Enhanced relocation capabilitiesAndPumpXY-1A-5TypeDrilling rigs, water pumps, and diesel engines are mounted on a single base.。
