Scope of Application:The crawler undercarriage can bear a load of4T,Can accommodate various small drilling machines, such as:XY-1-1、XY-1、XY-1A、XY-1A-4、XY-1B、XY-1A-1、XY-200、XY-200B-1、XY-200B-2、GXY-1、GXY-1C、GK180Wait, and can be loaded simultaneously.BW160、BW160A、BW200OrBW200AType mud pump, featuring hydraulic hoisting and easy movement of drilling derricks, suitable for engineering geological surveys, geological core drilling, physical surveys, small grouting holes, blast holes, well holes, and air conditioning holes in road, railway, hydropower, bridge, dam foundation, etc.

II. Structural Form

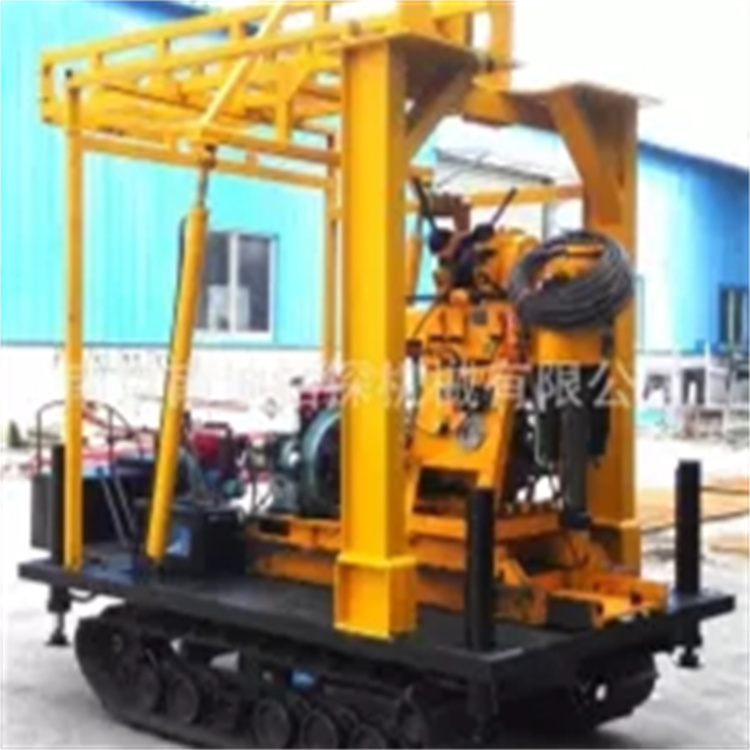

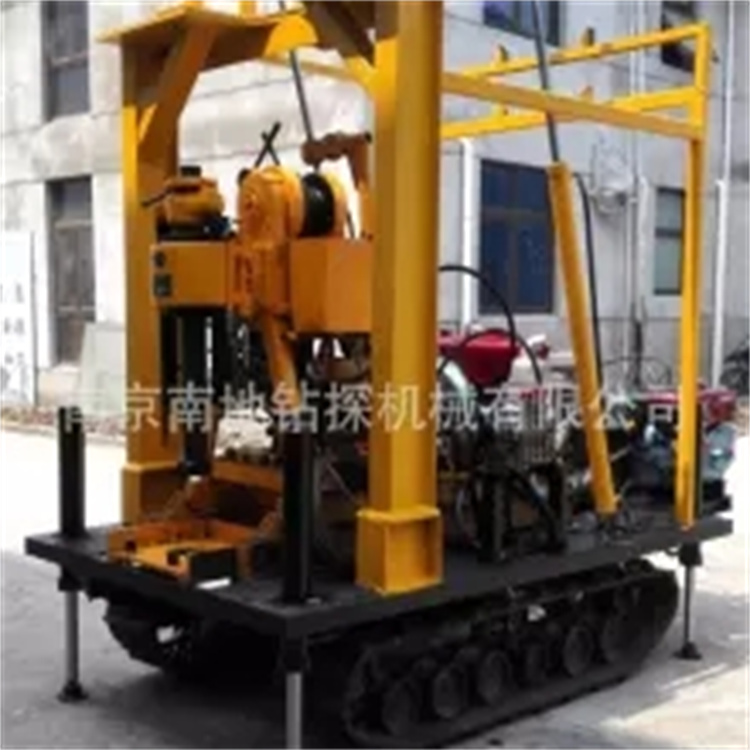

The drilling rig set consists of a tracked undercarriage, diesel engine, drilling machine, and diesel pump, all mounted together on a single frame.

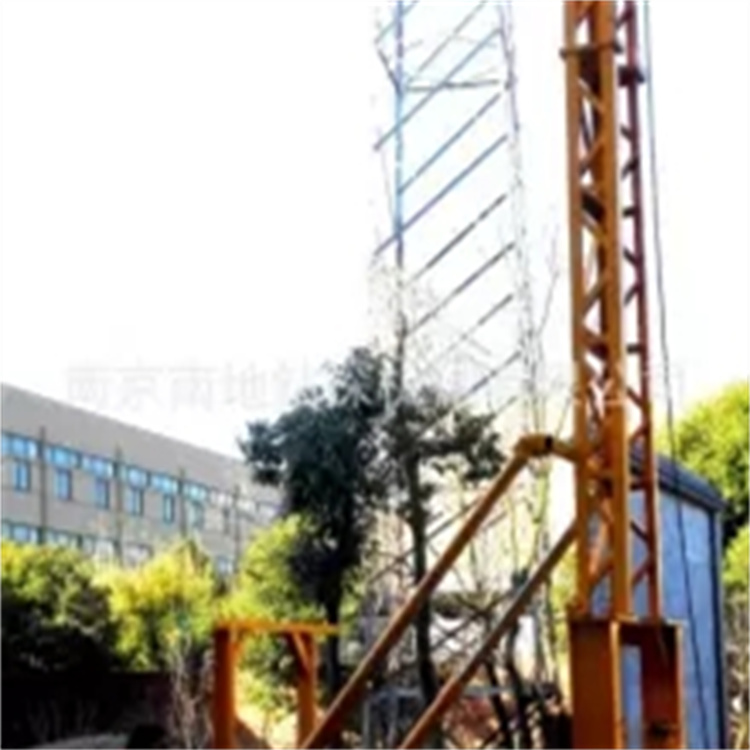

The assembly includes a combine harvester rubber track walking mechanism and walking control system, matched diesel engine, drill rig beam, 4 sets of hydraulic support legs, work platform, toolbox (seat).Consists of a hydraulic derrick system (control valve, oil pump, cylinder, leg, crane, and cross-shaped combination derrick).This series of products features smooth movement, flexible steering, and utilizes several types of elevated chassis, offering excellent off-road performance.

Drill models are available for selection based on actual requirements (drill specifications can be viewed for the selected model).
